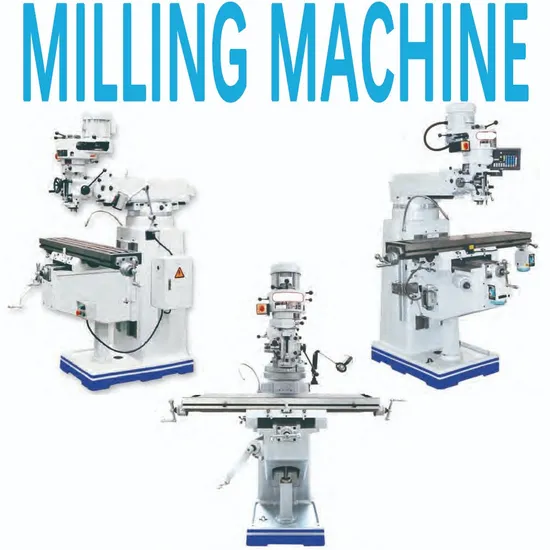

X6325 Series Milling Machine Good Quality
| US$3,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
X6325
Type
Knee-and-Column Milling Machine
Object
Tool
Structure
Bed type
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
CNC
Automatic Grade
Automatic
Precision
High Precision
Certification
CE
Condition
New
Transport Package
Wooden Case
Specification
big
Trademark
OEM
Origin
China
Production Capacity
10000sets/Year
Product Description
| ITEM/MODEL | X6325 | X6325A | X6325B | X6325C | X6325D | ||
| Table Size | mm | 254x1270(10x50") 254x1370(10x54") | |||||
| T Slot | mm | 3x16 | |||||
| X Axis Travel | mm | 820 / 920 | 800 / 900 | 820 / 920 | |||
| Y Axis Travel | mm | 410 | 380 | 410 | |||
| Z Axis Travel | mm | 400 | 350 | 400 | |||
| Ram Cross Travel | mm | 470 | |||||
| Distance From Spindle to Table | mm | 0-400 | |||||
| Spindle Hole Taper | Standard R8(Oprional NT30/40) | NT40 | |||||
| Quill Travel | mm | 127 | |||||
| Spindle Speed | r/min | Standard 16 Shift: 65-4500(50HZ) 80-5440(60HZ) | |||||
| Optional Variable Speed: 60-4200 | Optional Variable Speed: 65-3750 | ||||||
| Auto Quill Feed | mm/rev | 0.04(0.0015") / 0.08(0.003") / 0.15(0.006") | |||||
| Spindle Motor Power | HP | 3 (2.2KW) | 5 (3.75KW) | ||||
| Milling Head Swivel | ±90° | ||||||
| Milling Head Tilting | ±45° | FIXED | ±45° | ||||
| Dimension of Package | 1 Miller/Pallet | mm | 1516x1550x2080 | ||||
| 2 Miller/Pallet | mm | 1650x1790x2170 | |||||
| 3 Miller/Pallet | mm | 1650x2185x2235 | |||||
| Gross Weight | kg | 1320 | 1280 | 1300 | 1490 | 1490 | |
