Three in One Brinell Rockwell Vickers Digital Display Hardness Tester

Product Description

Portable Digital Display Controlled Laboratory Equipment Hardness Tester Machine
1. Application
HBRV-187.5 Brinell, Rockwell, and Vickers hardness tester is a multi-purpose hardness tester with three test methods and 7-stage test force, meeting various hardness test requirements. The hardness tester uses the lever to add the force, friction free spindle, high force accuracy. Wide application range, easy to operate. It is a hardness tester for industrial and mining enterprises and scientific research institutes.
2. Technical Parameters
1)Test force: Rockwell: 60, 100, 150 Kgf(588, 980, 1471 N) Brinell: 15.625, 31.25, 62.5, 125, 187.5 Kgf(153.2, 306.5, 612.9, 1226, 1839 N) Vickers: 5, 10, 20, 30, 50, 100 Kgf(49.03, 98.07, 196.1, 294.2, 490.3, 980.7 N)
2)Scale range Rockwell: HRA, HRB, HRC, HRD, HRF, HRG Brinell: HBW2.5/15.625 HBW2.5/31.25 HBW2.5/62.5 HBW5/125 HBW2.5/187.5 Vickers: 5, HV10, HV20, HV30, HV50, HV100
3)Measurement range Rockwell: 20-88 HRA, 20-100 HRB, 20-70 HRA Brinell:5-650 HBW Vickers:10-3000 HV
4)Dimension and power supply Max distance between indentation center to machine wall: 160 mm Max height of the specimen: 180 mm for Rockwell, and 168 mm for Brinelll and Vickers. Dimension: 550*230*780 mm Power supply: AC220 V/50 Hz Net weight: 80 kg

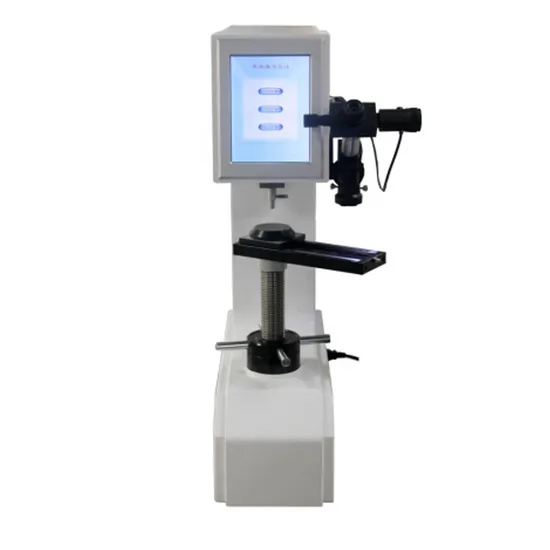

3. Detailed Image

FAQ
1. Are you a manufacturer?
Yes, we are one of the largest manufacturer of every kinds of testing machines in China. In general, every machine shipped from our factory provides 12 months of free maintenance, taking into account shipping reasons. We can extend the maintenance period for our customers for 2 months.
2. Do you have after-sales service? How can I ask? What about warranty?
Before the delivery of the equipment, we will carry out the factory inspection and the equipment will be shipped after the inspection. If your machine does not work properly, you can contact us and we will try our best to communicate with you via email or skype video chat. We promise we will reply to you within 24 hours and with 3 Within a working day to provide solutions. After confirming that it is really necessary, we can send you new parts or on-site maintenance.
The service does not include mechanical failure due to the following reasons:
(1) Wrong operation;
(2) Privately modified;
(3) Failure caused by non-equipment itself
(4) Use environment that is not suitable for equipment operation. Such as high temperature, humidity, corrosive gas or vibration.
(5) Problems caused by movement or transportation.
(6) Consumable components.
(7) Natural disasters
3. What is the delivery deadline?
Most of the time, we have inventory at the factory. If not, the delivery time is usually 15 to 20 days after receiving the payment. If you need it urgently, we can consider making special arrangements for you.
4. What kind of packaging and transportation do you use?
Under normal circumstances, we will use ordinary orders such as DHL, Fedex, UPS TNT transport. Large orders will use aviation or shipping.
5. Can the device be customized? Can I customize my own design on the device?
We can not only provide standard machines, but we can also provide customized machines according to your needs.
At the same time, we can also place your trademark on the machine.
6. What kind of packaging do you use?
Plastic sealed and sturdy wooden box.
7. What payment methods do you support?
Paypal, T/T, Western Union,L/C
