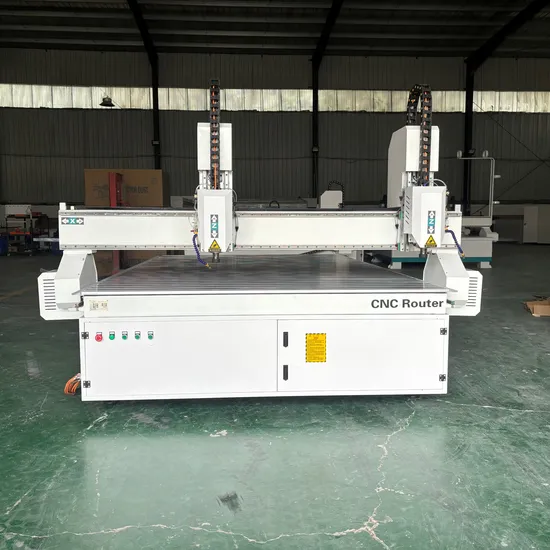

1325 CNC Router Multi-Purpose Wood CNC Cutting Machine with Aluminum T-Slot Table

Product Description

Product Parameters

Woking area	600*900*200mm or 600*900*500mm
Table style	Aluminum T-slot table with PVC
Table surface	Welded steel tube,cast iron vertical shafts and steel gantry
Spindle	3.0KW water cooling spindle
Spindle rotating speed	0-24000rpm
Collect size	ER20
Guide rail	Taiwan Hiwin linear square guide rail
Driving method	X,Y axis by helicia gear rack,Z axis by TBI ball screw
Motors and drivers	Stepper motor 450B and leadshine drivers MA860H
Control system	NCstudio control system
Invert	Fuling invert
Max.working speed	12m/min
Instruction formate	G code*.u00*.mmg*.plt
Woking voltage	AC220V/AC380V,single phase/3 phsae,50-60Hz
Standard software	Artcam 2010
Compatible software	Type3
Control Cabinet	Independent
Other	Tool sensor;Oiling system;Water pump;Tool Box,English manuals etc.
Optional parts	1)4.5kw water cooling spindle; 2)Rotary axis(80mm//100mm/150mm) diameter; 3)Mach3/DSP control system; 4)Dust collector; 5)Vacuum table with 5.5kw vacuum pump.

Our machine offers unparalleled flexibility by allowing customization to meet your exact specifications. Whether you have specific dimensions, unique cutting needs, or particular performance requirements, we can tailor our Multi-Purpose Wood Cutting Machine with Aluminum T-Slot Table precisely to your demands.
Product Description
The Wayne CNC router machine stands as a pinnacle of intelligent cutting and milling technology, meticulously engineered to tackle a myriad of intricate processing needs. Boasting exceptional versatility, it seamlessly integrates routing, drilling, cutting, sawing, slotting, and numerous other functions. The machine features a sophisticated carousel tool magazine, conveniently positioned either beside the spindle or on the fuselage's side. This allows for automatic tool changes, enabling the machine to execute multiple and complex processes in a single operation. Capable of cutting, engraving, drilling, routing, grooving, and pocketing, it handles materials such as wood, MDF, acrylic, PVC, plastic, foam, and more with precision and finesse.
For enterprises with substantial production demands, the Wayne CNC router machine emerges as the premier choice. Unlike traditional manual tool-change methods, this advanced wood CNC machine is equipped with an autonomous tool magazine featuring a variety of tool bits. It employs computer program control to seamlessly switch tools during processing without halting operations. This automation boosts efficiency and productivity, making it indispensable for high-volume production environments.
1. Wood Processing: Masterfully handles the crafting of diverse furniture including doors, windows, cabinets, screens, and more. 2. Advertisement: Expertly engraves and cuts various labels and number plates with precision.
3. Art Crafts: Elegantly engraves characters of any language and intricate graphics on gifts and souvenirs, adding a touch of personalization and artistry.
Main Feature
1. Z-axis feeding height of 200mm, facilitating enhanced cutting depth.
2. Robust square tube welded steel frame structure with an 8mm thickness, ensuring superior stability and durability.
3. Aluminum T-slot table or Vacuum table paired with a powerful 5.5KW vacuum pump, offering versatile work surface options.
4. Innovative drive system featuring X-axis rack and pinion drive, Y-axis 2-way rack and pinion drive, and Z-axis 2510 Ball screw for precise motion control.
5. High-quality X, Y, Z axis Taiwan square rails PMI, ensuring smooth and accurate movements.
6. Equipped with a 450B stepper motor and MA860H Leadshine driver, or optionally a servo motor and driver for enhanced performance.
7. Comes with a 3.0KW water cooling spindle and a 3.7kw Fuling inverter, with other spindle options available to suit specific needs.
8. User-friendly Nc-Studio-5.4.49 control system, with DSP or Mach 3 as optional alternatives for tailored control.
Options
1) 4.5KW water cooling spindle for increased cutting power and efficiency;
2) Rotary axis options (80mm // 100mm // 150mm diameter) for enhanced rotational capabilities;
3) Mach3/DSP control system for customizable machine interfacing;
4) Dust collector to maintain a clean and debris-free work environment;
5) Vacuum table with a robust 5.5KW vacuum pump for secure material handling and stability during operations.
Detailed Photos
Packaging & Shipping
Company Profile
Liaocheng Wayne New Materials Co., Ltd. stands as a beacon of excellence in CNC Router and Laser Engraving & Cutting machinery. Nestled in the vibrant city of Liaocheng, Shandong, we specialize in an array of high-tech machines such as the Large-scale ATC Woodworking Router Machine, 5-axis CNC router, CNC advertising router, CNC marble engraving machine, CNC plasma cutting machine, CNC metal mold machine, CNC lathe machine, Swiss type lathe machine, Fiber laser cutting machine, CO2 laser cutting and engraving machine, laser marking machine, and laser welding machine, among others. Proudly, our world-class 'Wayne' brand has earned global recognition, exporting to over 100 countries and regions including the United States, Germany, Indonesia, Canada, Australia, Russia, and throughout Southeast Asia.
Our primary mission is to deliver unparalleled service to our customers. Whether it's stock or custom configurations, we excel in providing tailored solutions. Each machine is crafted with components sourced from top-tier global suppliers, ensuring superior control and precision. Our versatile machines find applications across various industries, including woodworking, metal and stone work, aluminum fabrication, boat building, shop fitting, and mold making, among others. Our commitment to quality is reinforced by a dedicated after-sales service department, a proficient sales team, and stringent quality assurance protocols, ensuring every purchase is made with confidence. We extend a warm welcome to customers and business associates worldwide, fostering cooperative relationships for mutual growth. At Wayne, we promise 'Best Service, Best Quality, Best Price.' We eagerly look forward to collaborating with you to create greater value. Reach out to us with your requirements-we are ready to serve you.
FAQ
1. Is it all right to make customer's own brand name?
A: yes. we are available with OEM
2. Are you a manufactuer or trading company?
A:We are the manufacturer with Laser machine and CNC lathe machine
3. Can you do the design for us?
A: yes. if you want a different control system design or higher column , we are available.
4 . What is your terms of delivery?
A: FOB Qingdao.
5. What's your payment term?
A: T/T OR L/C at sight.
