Full Automatic Plastic Molding Machinery for HDPE Toilet Cleaner Bottle

Product Description

DAWSON MACHINERY & MOULD GROUP
***EXTRUSION BLOW MOLDING MACHINE EXPERT*** Our customers are all around the world.
Vietnam, Australia, Indonesia, Malaysia, Thailand, Sri Lanka, Kazakhstan, Russia, UAE, Saudi Arabia, Malta, Romania, Italy, India, Syria, Ethiopia, Egypt, Sudan, Tunisia, Algeria, Kenya, Nigeria, South Africa, Zimbabwe, Mexico, Guatemala, Ecuador, Colombia, Venezuela, Peru...

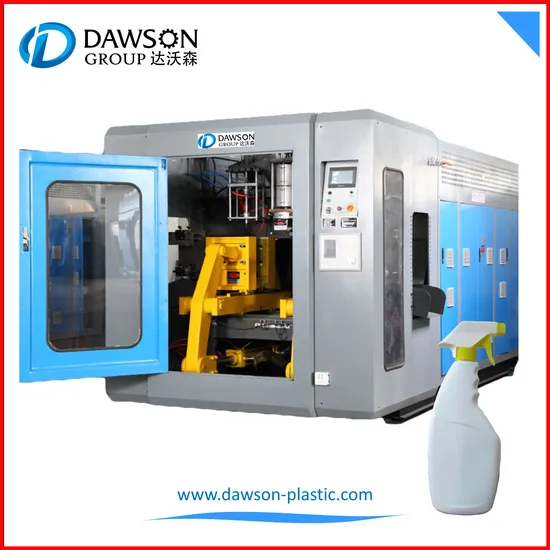

Automatic Extrusion Blow Molding Machine ABLB65I
Automatic Extrusion Blow Molding Machine ABLB65I ABLB65I full-automatic bottle making machine is specially designed for plastic chemical bottles, medical bottles, lubricant oil bottles, cosmetic bottles, and other small plastic bottles not over than 5Liters.
1. Suitable products
0~5L HDPE, PP bottles
Applications: Milk bottles, food pack containers, jars, chemical bottles,
Lubricants bottles, household bottles, detergent/shampoo bottles, oil bottles.
2. Station
This machine can be double station or single single station, depends on your output demands. 3. Die head
This machine when using single die head, can make 2L to 5L bottles,
, the die head can also be changed to double die head. Single die head (2~5L)
Double die head (0~2L) Changing the die head system takes around 1.5~3h, this also included heating time.

Max. Product volume	5Liters
Out put capacities	150~180pcs/h
Screw diameter	65mm
Screw L/D ratio	24L/d
Screw drive power	18.5kw
Screw heating capacity	6kw
Heating zones	3zones
HDPE output	80kg/h
Oil pump drive power	7.5kw
Clamping force	65kn
Mold max size	148-568mm
Mold stroke	330*370mm
Max die diameter	160mm
Blowing pressure	0.6mpa
Air volume	0.6m³/min
Cooling water pressure	0.3mpa
Water consumption	50L/min
Machine size	3.1*1.5*2.7m
Machine weight	5.5ton

Type of Blow Molding Machine

Extrusion blow molding In Extrusion Blow Molding (EBM), plastic is melted and extruded into a hollow tube (a parison). This parison is then captured by closing it into a cooled metal mold. Air is then blown into the parison, inflating it into the shape of the hollow bottle, container or part. After the plastic has cooled sufficiently, the mold is opened and the part is ejected. EBM processes may be either continuous (constant extrusion of the parison) or intermittent. Types of EBM equipment may be categorized as follows: 1. Continuous Extrusion Equipment Rotary wheel blow molding systems Shuttle machinery 2. Intermittent Extrusion Machinery Reciprocating screw machinery Accumulator head machinery Examples of parts made by the EBM process include dairy containers, shampoo bottles, and hollow industrial parts such as drums. Basic polymers, such as PP, HDPE, PVC and PET are increasingly being co-extruded with high barrier resins, such as EVOH or Nylon, to provide permeation resistance to water, oxygen, CO2 or other substances. In dairy applications, it is possible to extrude a black light-blocking layer in the center layer of containers, with opaque white resin used in the inner and outer layers. Compared to injection molding, blow molding is a low pressure process, with typical blow air pressures of 25 to 150 psi. This low pressure process allows the production of economical low-force clamping stations, while parts can still be produced with surface finishes ranging from high gloss to textured. The resulting low stresses in the molded parts also help make the containers resistant to strain and environmental stress cracking. Accumulator Head Machinery is used for the extrusion blow molding of large industrial hollow parts. Examples of parts produced on this machinery include drums, trash cans, automotive panels, playground equipment, and large containers, such as Jerry Cans, for liquid storage. Most parts produced on accumulator head machinery are single layer; however, specialized machinery is capable of producing parts with up to seven unique layers of plastic - these machines are used primarily to manufacture automotive gasoline tanks with barrier layers.

Plastic machines we provide ....

Extrusion Blow Molding Machine Injection Blow Molding Machine PET Blow Molding Machine Injeciton Molding Machine Injection Stretch Blow Molding Machine

Applictions ....

Chemicals : Pesticide bottles and industrial buckets, chemical buckets and other hollow blow-molded buckets. Cosmetics&Pharmaceuticals : Vaccine bottles, medicine bottles, medical bed boards, cosmetic boxes, jars and vaseline bottles and other plastic machinery products used in cosmetic and medical fields. House hold : Plastic empty blow-molded bottles, plastic containers, such as shower gel bottles, shampoo bottles, body lotion bottles, laundry detergent bottles, cleaning supplies bottles, hand sanitizer bottle, disinfectant bottle, alcohol disinfectant bottle etc. that are often used in daily life. Indoor & outdoor : Plastic products are widely used, such as plastic hollow flower pots, plastic watering cans, plastic pet houses, plastic cold storage boxes, plastic children's toys, plastic-bus chairs, plastic tables and chairs, plastic trash cans, plastic traffic cones, plastic life buoys, plastic floats , Plastic buoys, plastic mannequins, etc., plastic machinery products can be seen everywhere. Food & Beverage : The common applications of plastic products in the food and beverage industry are ketchup bottles, soy sauce bottles, honey bottles, mustard sauce bottles, milk bottles, yogurt bottles, juice bottles, alcohol bottle etc. Baby bottles are also common in plastic machinery in the beverage and food industry Applications. Lubrication : The most common applications for hollow extrusion blow molding machines are lubricating oil barrels, 1L 2L lubricating oil bottles, 5L 10L cans, 10L 20L 25L to 30L lubricating oil Jerry can, and even 60L ~ 250L large barrels. Automotive : The application of plastic products also accounts for a large part of automobile parts, such as plastic parts in automobile engines, plastic automobile safety stalks, plastic door handles, plastic car lamp housings, etc.
