Tension Leveler Machine Line for Steel

Product Description

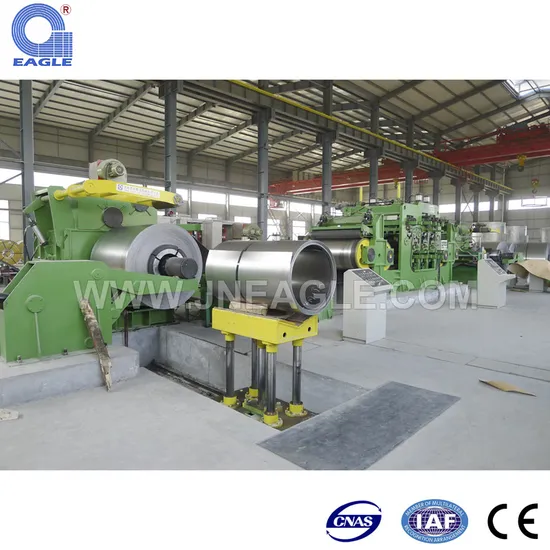

ETL SERIES tension leveling line
Tension Leveling Lines are used to effectively flatten metal sheet in various industries. The material to be flattened runs through an entry and exit set of bridle rolls, with a corrective leveler in between. It is uniformly leveled and relieved of most internal stresses.

Advantages:
1. Improve the flatness
2. Improve the material anisotropy
3. Eliminate the yield platform, prevent slip line formation

Parameters of Tension Leveling Line

Models/ Items	Thickness (mm)	Width (mm)	Tension Leveling Accuracy (I)	Tension Level Speed m/min	Coil Weight (ton)
ETL-1x650	0.15-1	300-650	5-8I	120-200	8
ETL-1x800	0.2-1	400-800			10
ETL-1.2x1250	0.2-1.2	600-1250			15
ETL-1.2x1530	0.2-1.2	600-1530			15

Established in 2003, Eagle is a tension level line manufacturer and supplier based in China. Our tension level line is made up of a material loading machine, uncoiling unit, turning roll, coiling machine, and unloading machine. Being of high quality and stable performance, our tension leveling machine is mainly used to eliminate the wavy edge and buckling as well as improve the sheet metal flatness and stamping properties. It is a necessary CNC machine for rolling mills.
Transaction procedure:
Inquiry - Project - Sign - Production - Inspection - Payment - Transportation - Installation& Commissioning - Guaranty
Jinan Eagle CNC Machine Co., Ltd (briefly JEM), located in Jinan city, Shandong Province, China, was founded in 2003. It is mainly engaged in developing and manufacturing of Cut to Length Line, Slitting Line, Rotary Shear, Slitting and Cut to Length Combined Line, Leveling Machine, Tension Leveler and so on. Our products are widely used in transfomer, motor, household appliance, automobiles, hardware, steel industries, etc. It can be used for processing cold and hot rolled steell, carbon steel, galvanized steel, silicon steel, tinplate, stainless steel, pre-painted steel, aluminium, copper and other metals.
Domestic customers include First Automotive Works (FAW), Second Automotive Works, Great Wall Automobile, Bao Steel, Anshan Steel, Handan Steel, Midea Group etc, and many of coil processing centers. Internationally, our products have also been installed in Europe, South America, Africa, Southeast Asia and so on.
Welcome you to our factory!
