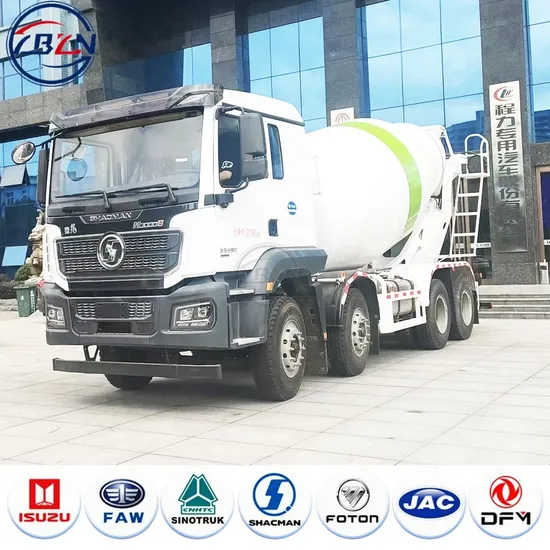

Shacmanfirst Four After Eight Concrete Mixer Truck 8X4 Large Commercial Concrete Truck Cement Mixing Tank Truck

Product Description

Mixing truck is a special product of Zhongbang Company. The car adopts the new mixing technology at home and abroad, with the advantages of uniform mixing, no residue, super load capacity, simple operation, safety and reliability, and so on. The vehicle is made of high quality steel, with strong structure, durable life and long service life. At the same time, the chassis and engine of the vehicle are also purchased from well-known brands at home and abroad to ensure the stability and reliability of the vehicle.
The mixer truck is a vital piece of equipment on any construction site, known for its ability to transport and mix concrete on the go.
Efficient on the Go With a large drum capacity, a mixer truck can carry enough concrete for extensive projects in a single load, ensuring efficient delivery to the construction site.
Easy to Operate Equipped with user-friendly controls, the mixer truck allows for easy adjustment of the mixing process, ensuring a consistent mix every time.
Eco-Friendly Design Designed with energy efficiency in mind, the mixer truck helps reduce fuel consumption and environmental impact, making it a greener choice for construction projects.
Rugged and Reliable Built to handle various terrains, the mixer truck's robust construction ensures reliable performance, even in challenging conditions.
Low Maintenance The mixer truck's straightforward design simplifies maintenance, making it a cost-effective choice for long-term use.
In Summary For any construction project seeking efficiency and reliability, the mixer truck is the go-to solution for concrete transportation and mixing.Product Description
The mixing tank body is made of high strength wear-resistant steel plate, cage type mold are integrally formed to ensure that the flange, sections of the cylinder body and rolling the coaxial degree and circle beat, to ensure smooth operation of the vehicle. The tank body adopts the double helix blade, moderate density and taper before the gateball symmetric stirring plate and tank mouth at the installation of blades and a material guide vanes, resorted to materials to be more even faster.
The feeding port is equipped with wear-resistant device, the discharge eloquence has V-type design, the discharge speed is faster, the unloading groove once stamping molding, the wear-resistant plate, long service life, the appearance is exquisite and generous, unloading groove lifting system are solid characteristics of strong and high steel, high fatigue resistance.(Over the industry standard) Water system: pneumatic water supply, 400L high pressure water tank, galvanized pipe, with four high pressure galvanized faucet (high quality industry leading), rubber water pipe with steel wire, providing more than the service life of 3 times.Primary stamping molding, blade with radian, with steel wear-resisting strip, add mixing plate, strengthen the encrypted double spiral blade, three-dimensional marking standard, unloading speed is faster, the residue rate is lower Auxiliary frame production process: auxiliary beam thickness 8 / 10mm height 140 / 160mm width 60 / 80mm (seamless cold pull), no deformation, no bending, no fracture, fatigue resistance.
Product Parameters

Miator chassis parameters
Vehicle name:	Sinotruk Shandeka lightweight mixing truck	Chinese brand:	Sinotruk Shandeka lightweight mixing truck
engine:	WP9H390E62	displacement (ml):	8800
outline dimension:	10050*2550*3995	Stir volume:	12-16 cubic meters
gross mass:	31000(Kg)	Rated quality:	17000(Kg)
curb weight:	14000(Kg)	wheel base:	1800+3000+1400(mm)
number of axles:	4	maximum speed:	90km/h
gear-box:	Sinotruk 10 gear	Front and rear bridge:	5.5 tons front bridge heavy truck 16 tons double rear bridge
Number of tires:	12+1	tyre size:	11.00R20 Original factory steel wire tire
front gauge:	2022,2041	rear track:	1830/1830
effluent standard:	Euro 5

Parameters of the mixer truck tank body
Tank material:	Alloy steel (special wear-resistant material- -to improve the tank life by more than 3 times)	Tube material:	16 manganese steel 6mm alloy steel
Leaf material:	Baosteel 520 5mm alloy steel (with wear strip to improve service life)	Seal head material:	8mm, with alloy steel
reduction box:	ZF reducer, Germany / PMP (purely imported)	hydraulic pressure system:	Rexroth, / Eaton / Sao / Italy PMP (pure import)
water supply:	400L water tank	Radiation system:	Kaitong radiator / Xinxiang radiator
charging rate:	Feed speed is m3/min 3	Discharge speed:	≥2 m3/min
Remaining rate of discharge:	≤0.5%	mode of operation:	Left and right and cab three operation
Discharge range:	180° up and down the left and right height regulation	safety device:	Add the material leakage receiving device

Vehicle structure
Company Profile
Successful Case
FAQ
Q1.You are a factory or trading Company?
Yes, we are the overseas sales department of the factory. And welcome to visit our factory.
Q2 . Could your company modify the standard product depending on my request?
Yes. Our company is specialized in researching and designing various special-purpose vehicles and spare parts. We can provide
any product according to your demand.
Q3. Could your company totally customize products for me?
We can provide the customized-designing product meeting with any of your demands.
Q4. Could you provide the certification that we need?
We can provide various certifications associated with the truck.
Q5. How long could we receive our goods?
It depends on the product that you have ordered. If the goods are prepared, we will deliver your goods as soon as possible.
