Automatic Wheat Maize Corn Semolina Rice Roller Flour Grinding Machine Wheat Flour Mill Milling Machine

Product Description

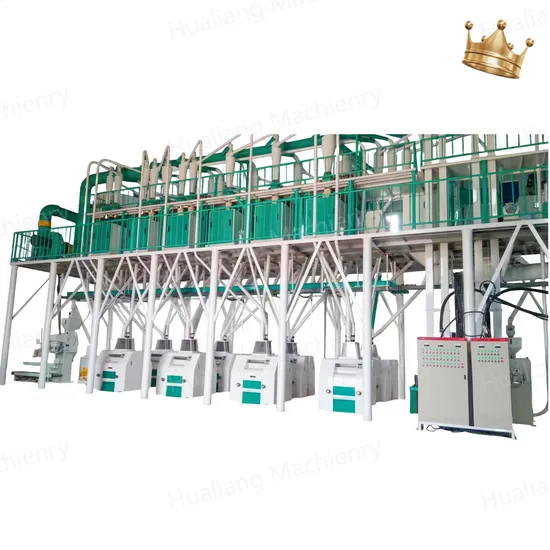

100 Ton/Day Maize/Wheat Flour Milling Machine Processing Plant Turnkey
Introduction:
1.It is a large-scale steel frame complete flour unit designed by the wheat flour design and R&D center on the road of innovation based on the domestic actual situation.
2.The design breaks through the limitations of traditional design and has an international leading level.
3.The cleaning process adopts multiple processes such as three sieves, two dozens, two stone removal, one wheat washing, two magnetic separation etc; 4-5 skin grinding, 6-7 core grinding, 2-3 slag grinding, and equipped with auxiliary equipment such as powder cleaner, bran machine, impact, loose powder, etc.
4.The mill adopts advanced air pressure compound mill, advanced milling process, light grinding fine mill, long powder path, high flour quality, can produce more various grades of powder and special powder.
5.The steel frame structure has less investment, quick construction efficiency, short construction period, and small footprint. Our company also provides one-stop service of pre-design, production, post-installation, commissioning, technical training, and technical consulting.

Capacity	Power	Capacity	Power
5t/24h Maize Flour Milling Machine	32kw	5t/24h Wheat Flour Milling Machine	17kw
10t/24h Maize Flour Milling Machine	49kw	10t/24h Wheat Flour Milling Machine	38kw
20t/24h Maize Flour Milling Machine	97kw	20t/24h Wheat Flour Milling Machine	61kw
30t/24h Maize Flour Milling Machine	103kw	30t/24h Wheat Flour Milling Machine	75kw
50t/24h Maize Flour Milling Machine	154kw	50t/24h Wheat Flour Milling Machine	180kw
100t/24h Maize Flour Milling Machine	186kw	100t/24h Wheat Flour Milling Machine	436kw
150t/24h Maize Flour Milling Machine	253kw	150t/24h Wheat Flour Milling Machine	470kw
200t/24h Maize Flour Milling Machine	362kw	200t/24h Wheat Flour Milling Machine	718kw
300t/24h Maize Flour Milling Machine	425kw	300t/24h Wheat Flour Milling Machine	890kw
500t/24h Maize Flour Milling Machine	720kw	500t/24h Wheat Flour Milling Machine	1500kw

Product Parameters
1. The powder path is a production process of grade powder, the process system is set relatively well, the powder path is long, and the classification is relatively fine, which can be adapted to processing soft or hard wheat.
2. The leather mill system is equipped with more grading screens to ensure that the wheat core and the wheat residue are sieved, and the bran flakes behind are processed for bran treatment, which reduces the load of the mill; both large bran and fine bran are carried out Brush bran treatment to ensure clean bran.
3. The process is equipped with 6 clearing systems to re-clean the wheat cores extracted by the slag mill system; the center, slag and mixture materials are also cleaned to ensure high purity of the materials entering the front road core mill.
4. In addition to the skin grinding system, all other systems use smooth roller grinding to ensure the light research and subdivision of the materials, reduce the breakage of fine bran flakes as much as possible, and reduce the content of bran stars in flour. In particular, the heart grinding system has many channels, finely divided, and light grinding, which can effectively avoid excessively high temperature and affect the quality of flour.
5. Due to the use of middle back road bran and brush bran, the amount of bran powder is large and the quality is also good. Therefore, the bran powder is treated with a silo flat sieve alone, which improves the powder extraction rate. If it is mixed with other materials, sieving can easily affect the sieving efficiency.
6. Because the composition of the air suction powder is more complex, the particle size is fine, the viscosity is large, and the fluidity is poor, it is difficult to sieve if it is treated with a warehouse flat screen alone, and when mixed with other materials, the fluidity becomes better and easier to screen Management. If the vibrating garden screen can be used for sieving alone, the effect will be better.
7. The flat sieve of the heart mill system adopts the sieve path of sieve powder first and then classification. The material has good fluidity and greatly improves the sieve efficiency.
Detailed Photos
Company Profile
Packaging & Shipping
Customer Visit
Installation Instructions
FAQ
Q1.Are you the manufacturer?
Yes,Our factory was build in 1983 year,we are specialized in complete wheat,maize and other grain flour milling processing machine.
Q2. Does the flour mill can produce different kind of maize meal, maize flour same time?
Yes, the flour mill line can produce different size maize meal or maize flour at same time at one production line.
Q3. Does the flour mill line can running with Generator?
Yes, the flour mill line can running with Generator.
Q4. Does the flour mill packing machine can pack different bags?
Yes, the packing machine can pack 1kg-5kg; 5kg-20kg, 12.5kg-25kg, 50kg.
Q5. Does the flour mill line can processing maize and wheat same time?
No, it is because the maize and wheat Physical Characteristics is different, like the shape, the hardness, all are different, and the final product flour size is also different. The cleaner, the roller mill parameter, the plan sifter sieve all are different. As professional manufacture for maize meal or flour, cannot processing maize and wheat same time.

After Sales Service
What is the after sale service our company provide of corn flour milling machinery?
1. Two years spare parts delivery together with the machine.
2. Warranty 2 years of corn flour milling machinery.
3.Chinese professional engineer guide installation and commissioning
