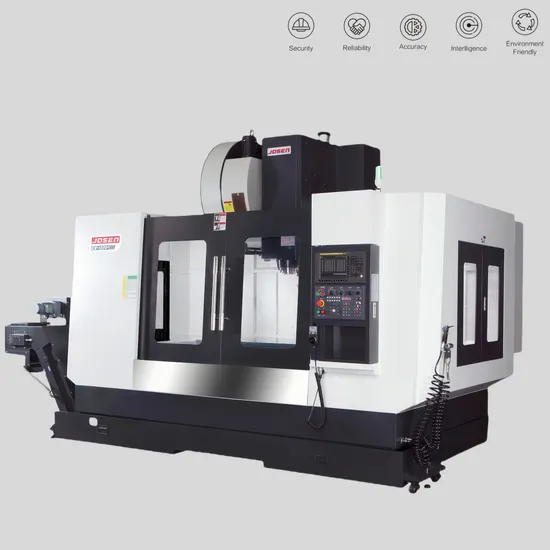

Vmc1370 Full Cover CNC Vertical Machining Center for Sale Vertical CNC Milling Machine

Product Description

CV-1370/CV-1580/CV-1055F/CV-1890 Full Cover CNC Vertical Machining Center for Sale Vertical CNC Milling Machine
Product Description
Basic Info

Number	Name	Number	Name
1	FANUC 0I-MF CNC controller	10	Chip pan and water tank
2	Full cover shroud	11	Transformer
3	Automatic lubricant system	12	Spindle air curtain dust protection system
4	Ground bolts and spacers	13	Mechanical, electrical and operating instructions
5	Tool-box	14	Rigid tapping
6	Working light	15	Electrical box heat exchanger
7	Warning light	16	Machine cleaning water gun
8	M30 automatic power-off system	17	Three-axis slide telescopic shield
9	Portable chip blowing air gun	18	24-blade arm type tool magazine

Can be loaded into standard containers and will save at least $2000 in shipping costs. Product Specification

Main technical parameters	Unit	CV-1055F	CV-1370	CV-1580	CV-1890
X-axis travel	mm	1020	1320	1520	1800
Y-axis travel	mm	520	720	800	900
Z-axis travel	mm	550	650	700	800
Distance from nose of spindle to table surface	mm	145-695	170-820	155-855	200-1000
Working table size (X*Y)	mm	1120*520	1400*700	1650*800	2000*900
Table T-slot size (width * number of slots * spacing)	mm	18*5*100	18*5*125	18*5*150	22*5*160
Max. loading capacity of working table	KG	500	1000	1400	2500
Spindle motor (continuous/30 minutes)	kw	11/15	15/18.5	15/18.5	15/18.5
Spindle speed	rpm	10-10,000	10-8,000	10-8,000	10-8,000
Spindle inner taper bore		BT40	BT50	BT50	BT50
X/Y/Z axis motors	kw	3/3/3	37683	3/3/3	3/3/3
Rapid feed rate (X/Y/Z)	mm/min	36000/36000/36000	24000/24000/24000	20000/20000/20000	20000/20000/20000
Fastest cutting feed rate	mm/min	1-10,000	1-10,000	1-10,000	1-10,000
Tool magazine capacity (standard)	set	30	0/24	0/24	0/24
Tool magazine form		Disc type	Disc type	Disc type	Disc type
Tie rod bolts form		MAS-P40-1(45°)	MAS-P50-1(45°)	MAS-P50-1(45°)	MAS-P50-1(45°)
Maximum tool diameter of adjacent tools		Ø80	Ø110	Ø105	Ø110
Max. tool diameter of empty adjacent tool		Ø150	Ø200	Ø200	Ø200
Maximum tool length	mm	300	300	350	350
Maximum tool weight	kg	8	15	15	15
Positioning accuracy (full stroke)	mm	±0.005	±0.005	±0.01	±0.01
Repeat positioning accuracy (full stroke)	mm	±0.003	±0.003	±0.005	±0.005
Controller		FANUC 0I-MF	FANUC 0I-MF	FANUC 0I-MF	FANUC 0I-MF
Water tank capacity	liter	250(Side row)	350	350	350
Pneumatic pressure requirements	kg/cm2	6	6	6	6
Power Specifications		AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz	AC380±10%,3 phase,60Hz/50Hz
Electricity demand	KVA	30	30	50	50
Floor space (L*W)	mm	3450*3070 (Side row)	4800*3020 (Front track)	5350*4800 (including pedal hydraulic station)(Front Chip removal machine)	6000*5150 (including pedal hydraulic station)(Front Chip removal machine)
Machine height (maximum)	mm	2840	3030	3350	3465
Machine weight	T	6	9	11	16

Right elevation

Our Advantages
VMC Machine Center Features: High quality resin sand Taiwan spindle Taiwan ball screw and locking nut Taiwan pressure cylinder Taiwan linear railway Japanese NSK bearing germany R+W coupling Automatic lubrication system Chip conveyor at optional.
Machine Center Application: This VMC is suitable for mechanical processing and mold making .And it can adapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Detailed Photos

Company Profile

Packaging & Shipping

FAQ

1. What is your product range?
A : We specialized in Vertical Machining Center, CNC Lathe, Milling Machines, Lathes, Drilling Machines, Saws, Shapers and so on.
2:What kind of controllers do you use on machines?
A :Siemens, GSK, Fanuc, Syntec etc. You can choose as your request.
3. What is your trade terms?
A : EXW, FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me model or technical parameter you need, tell us what you want to do by using CNC machining center, we can provide machine with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5: What's the payment terms ?
A : T/T ,30% deposit when order ,70% balance payment before shipment ; Irrevocable LC at sight.
6. What about the after sale service?
A:We provide one year warranty, if any parts broken, we will send you a new one for free.
7.Before sending me an inquiry on our machine, it is better for you to provide me the following information?
1)Your metal workpiece size. Because in our factory, we have different models according to working area.
2)Your workpiece materials.
Aluminum/Steel/Iron/Titanium Alloy?
3) You also can send us the drawing of your workpiece, so that we can have a moe careful check and give your more accurate suggestions.
