GBLM-1500 Gantry Type Block Levering Machine for granite

Product Description

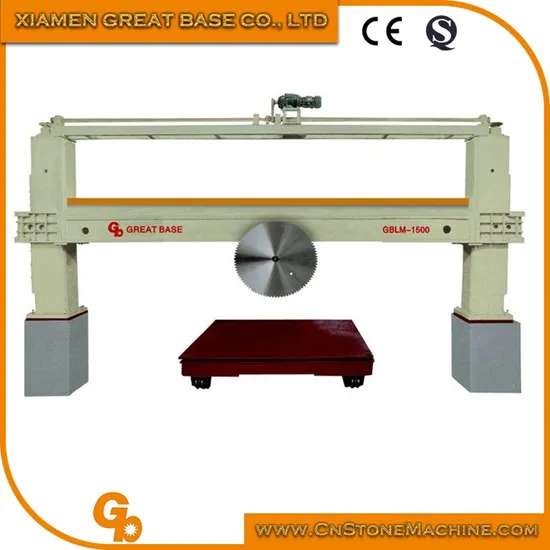

GBLM-1500 Gantry Type Block Levering Machine is a single blade stone cutting machine with rotating worktable. It's ideal for cutting art stone, tomb stone and monument stone that may need cutting in different angles.

The whole machine body is made of cast iron for high rigidity. Blade holder slides on the bridge right and left for cutting stone. The blade holder sliding rails on the bridge is machined by high-precision machining center to ensure small clearance, which resulting in accurate blade cutting and smooth slab surface.

The two ends of the bridge are attached to pillars and the attaching force is adjustable. There is a lead screw and nut system inside each pillar for bridge lifting/lowering movement. When the motor on top of this machine runs and transfers force through a long steel bar and two pairs of bevel gear system to drive two lead screws inside pillars, the bridge goes up and down.


The worktable has four heavy duty wheels to bear the weight of large stone block and runs on steel rails. The top of this worktable can rotate 360 ˚ for easy angle cutting on a stone piece. When the worktable top has been turned to a required cutting angle, then it can be locked for stable cutting.

Name		GBLM-2500	GMLM-1500
Blade Diameter	mm	2500	800/1500/2200
Blade vertical stroke	mm	1450	2000
Max.cutting size	mm	3000x1800x1050	3000x1800x2000
Main motor power	kw	30	30
Dimension	mm	5000x5800x5400	5000x5800x5800
Weight	kg	10000	10500

Main Features
1) Machine with competitive price and high quality ,easy in installation and maintenance.
2) Adopting advanced world famous brand components in electric parts .
3) Guarantee for one year.
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to install the machine, training how to use the machine.
* Engineers available to service machinery overseas.
FAQ
1. Do you have more stone machines?
Yes, we can produce all series of stone processing machines with competitive price and high quality.
2. Where is your factory?
Our factory locates in Xiangbei Industry Zone,Xiang'an,Xiamen,Fujian.
3. Do you have agent?
We don't have agent as we all sell directly to our customer, in this way, the customer can get lowest cost.
4. How much is this machine?
Please tell me your stone is granite or marble, the size, your destination port, so that I can quote you best price.
5. How long can I get my product?
Normally it takes 30 days to produce our products
