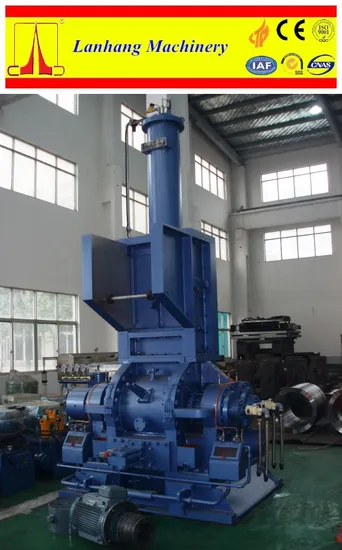

Lanhang Rubber Compound Banbury Mixer

Lanhang Rubber Compound Banbury Mixer

US$30,000.00 1 Piece (MOQ)

Basic Info.

Model NO.
LX-120L
Automatic Grade
Semi-Automatic
Power Source
Electric
Type
Rubber Mixer
Total Volume
80L
Fill Factor
0.75
Effective Volume
60L
Certificate
Ce,ISO
RAM Max Pressure
0.55MPa
RAM Style
Hydraulic RAM
Transport Package
PE Film Wraps
Specification
CE
Trademark
LANHANG
Origin
China Jiangsu
HS Code
84743900
Production Capacity
100sets/Year

Product Description


Why Choose Products from Lanhang Machinery
1. We're founded in 1992, with more than 20 years' professional experience
2. Fourtune global 500 companies' supplier, such as Dow Corning, Shin-Etsu...
3. Overseas service center available (in Europe, Japan, Dubai, etc.)
4. International CE, SGS, IAF, CNAS certification
5. National high-tech enterprise / products
6. We own various National Patent for Inventions Letters for rubber & plastic machinery
7. ISO9001:2008 management

Futures of 80L Rubber Banbury Mixer:
1. Intermeshing or tangential rotor
2. Rotors, mixing chamber, harmmer and parts which contacts with the material are overlayed with 5mm wear-resistant alloy (up to 50HRC)
3. Pneumatic or hydraulic type top mounted ram is optional
4. Inverted AC motor or variable speed DC motor is optional
5. Copper-ring and hydraulic sealing
6. 2-wing, 4-wing, 6-wing are available
7. Excellent dispersing effect
8. Best mixing rotor and chamber to guarantee 100% mixing effect
9. Low noise, safe mixing
10. Maintenance friendly and long-life service

Machine Overview:

Internal batch mixers such as the Banbury mixer are used for mixing or compounding rubber and plastics. The mixer consists of two rotating spiral-shaped rotors encased in segments of cylindrical housings. The rotors may be cored for circulation of heating or cooling.

It has reasonable design, advanced structure, high manufacturing quality, reliable operation and long service life. It's suitable for tire and rubber industries insulating material and cable industries to plasticization, master-batch and final mixing, especially for mixing of radial tire compound.


Main features:

Choice of Rotor Designs
Pneumatic or Hydraulic Ram
Direct Drive or Compound Drive
Multiple contact surface hardfacing or heat-treating
Temperature sensing and oil injection
NMC Mixer Control System: monitors and controls mixing time
Mixer Accessories: Hydraulic Power Unit, Dust Stop Lube Unit, Air Valve and Temperature Control System

Technical Parameters:
Tangential Rotors

Items

LX-75L

LX-100L

LX-120L

LX-160L

LX-190L

LX-255L

LX-270L

LX-410L

Total chamber volume
(L)

75

100

120

160

190

255

270

410

Useful chamber volume (L)

50

80

100

120

140

115

188

319

The main rotor speed(rpm)

40

40

40

40

40

4-40
6-60

4~40

6~60

The rotor speed ratio

1:1.17

1:1.17

1:1.17

1:1.17

1:1.17

1:1.17

1:1.17

1:1.17

Max capacity (T/H)

1.25

1.6

1.95

2.64

2.85

4.6

4.6

7.4

Motor power (KW)

160

220

310

355

870

1500

1250

2X1250

Weight(T)

20

24

26

26

30

55

55

76



Intermesh Rotors

Model

LH-100Y

LH-145Y

LH-200Y

LH-250Y

LH-330Y

Chamber Volume (L)

100

145

200

250

330

Filling Coefficient

0.65

Rotor Speed (r/min)

10-60

Rotor Speed Ratio

1:1.17

Max. Capacity (T/H)

1.36

2.2

3.05

4.2

5.0

Motor Power (Kw)

520

720

1100

1320

1700

Dimension (m)

6.6x2.8x4.4

7.5x3.1x5.5

8.1x3.5x5.4

8.2x3.8x5.5

10.0x4.7x6.6

Weight (T)

19

29

48

65

80
