Parallel Shaft Gear Motor Helical Gearbox with Hollow Output Shaft Speed Reducer

Product Description

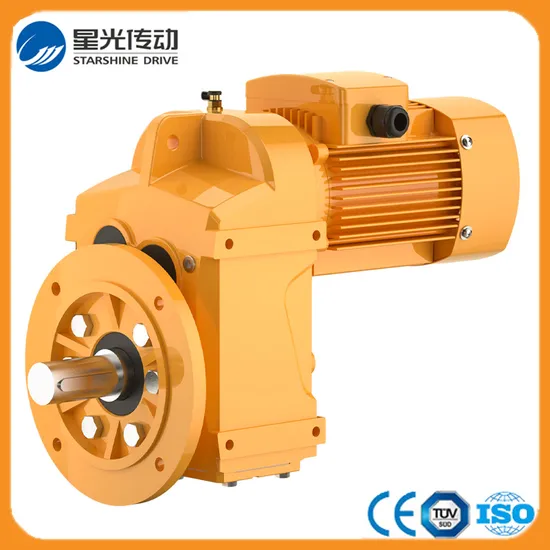

Starshine Drive F series Parallel Shaft-Helical Geared Motor
Features:
1)-High efficiency: 92%-94%;
2)-The motor provides smooth and quiet operation, with a compact structure, high torque output, and long service life.
3)-High precision: the gear is made of high-quality alloy steel forging, carbonitriding, and hardening treatment, grinding process to ensure high precision and stable running.
4)-High interchangeability: highly modular, serial design, strong versatility and interchangeability.
Technical parameters

Ratio	3.77-276.77
Input power	0.12-200KW
Output torque	3.5-21700N.m
Output speed	5-352rpm
Mounting type	Foot mounted, foot mounted with solid shaft, output flange mounted, hollow shaft mounted, B5 flange mounted with hollow shaft, foot mounted with hollow shaft, B14 flange mounted with hollow shaft, foot mounted with splined hole, foot mounted with shrink disk, hollow shaft mounted with anti-torque arm.
Input Method	Flange input(AM), shaft input(AD), inline AC motor input, or AQA servo motor
Brake Release	HF-manual release(lock in the brake release position), HR-manual release(autom-atic braking position)
Thermistor	TF(Thermistor protection PTC thermisto) TH(Thermistor protection Bimetal swotch)
Mounting Position	M1, M2, M3, M4, M5, M6
Type	F37-F157
Output shaft dis.	25mm, 30mm, 35mm, 40mm, 50mm, 60mm, 70mm, 90mm, 110mm, 120mm
Housing material	HT200 high-strength cast iron from R37,47,57,67,77,87
Housing material	HT250 High strength cast iron from R97 107,137,147, 157,167,187
Heat treatment technology	carbonitriding and hardening treatment
Efficiency	92%-94%
Lubricant	VG220
Protection Class	IP55, F class

ABOUT STARSHINE DRIVE
Starshine is a leading manufacturer of high-end speed reducers and variations. Our team consists of over 350 professionals, including 30 engineering technicians and 30 quality inspectors. We have a strong foundation for industry application development and service, thanks to our advanced facilities and equipment. Our products are widely used in various industries across the world, and we strive to provide professional services to medium and high-end customers. At Starshine, we believe in serving customers, innovation, and teamwork. We aim to become a preferred brand in the equipment manufacturing industry by continuously upgrading our services for end-users.
OUR TEAM
QUALITY CONTROL
Quality: IIn the equipment manufacturing industry, customers never stay satisfied with the current quality of our products; instead, we must constantly strive for improvement to create value.
Quality policy: to enhance the overall level in the field of power transmission
Quality View: Continuous Improvement , pursuit of excellence
Quality Philosophy: Quality creates value
3. Incoming Quality Control
To establish the AQL acceptable level of incoming material control, to provide the material for the whole inspection, sampling, immunity. On the acceptance of qualified products to warehousing, substandard goods to take return, check, rework, rework inspection; responsible for tracking bad, to monitor the supplier to take corrective measures to prevent recurrence.
4. Process Quality Control
The manufacturing site of the first examination, inspection and final inspection, sampling according to the requirements of some projects, judging the quality change trend; found abnormal phenomenon of manufacturing, and supervise the production department to improve, eliminate the abnormal phenomenon or state.
5. FQC(Final QC)
After the manufacturing department will complete the product, stand in the customer's position on the finished product quality verification, in order to ensure the quality of customer expectations and needs.
6. OQC(Outgoing QC)
After the product sample inspection to determine the qualified, allowing storage, but when the finished product from the warehouse before the formal delivery of the goods, there is a check, this is called the shipment inspection.Check content:In the warehouse storage and transfer status to confirm, while confirming the delivery of the product is a product inspection to determine the qualified products.
