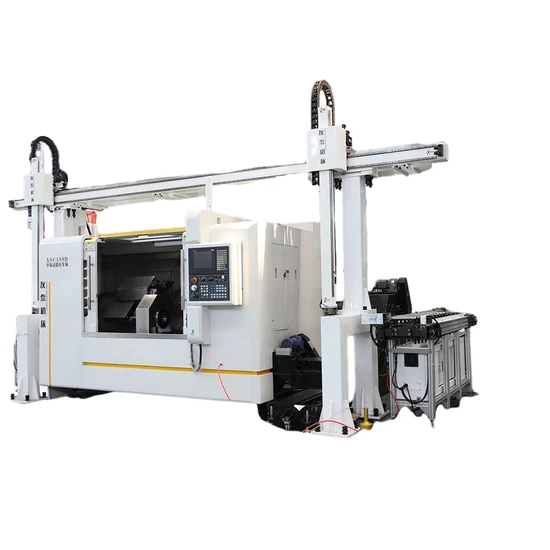

High Efficient CNC Turning Machine Slant Bed CNC Lathe

High Efficient CNC Turning Machine Slant Bed CNC Lathe

US$39,999.00-59,999.00 1 Set (MOQ)

Basic Info.

Model NO.
XSC
Type
Specialized Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Double-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
GS, CE, ISO 9001
Condition
New
Name
Double Turret CNC Lathe,CNC Turning Machine
Function
Double Side Turning for Metal
CNC Controller
Optional Fanuc,Siemens,Mitsubishi,GSK,Knd
Design
Double Side Turrets Turning CNC Lathe Machine
Workpiece Drive
Center Hollow Spindle
Advantage
Efficient Turning Both Sides of Wokpiece
Machine Bed
Linear Guilding Inclined 45° Base
Moving Axis
2-3 Axis Each Side
Keywords
CNC Lathe, CNC Turning Machine,China Manufacturer
Controll Type
Double Channel CNC Absolute Value Bus
Y Axis
Optional Power Head Turrets
Usage
Both Sides Turning Drilling Boring Tapping Slot
Application
Simultaneous Processing of The Same or Different S
Machine Size
Custom Spindle Diameter and Length Following Parts
Main Market
Developed Countries
Transport Package
Custom
Specification
CUSTOM
Trademark
YOTMT
Origin
China
HS Code
8457100000
Production Capacity
200

Product Description

high efficient cnc turning machine slant bed cnc lathe
Product Description
double side turning cnc lathe machine
mainly used for shaft workpiece turning with double side
optional with Y axis milling power head turret

double sided turning machine processing size details
MODEL WORKPIECE LENGTH (mm) X/Z WORKPIECE LENGTH (mm)
XSC500 500 300/250X2
XSC700 700 300/350X2
XSC800 800 300/400X2
XSC1000 1000 250/400X2
XSC2000 2000 350/900X2
XSC3000 3000 400/1400X2


double sided turning machine details
PARAMETER
UNIT XSC800
Machine Type 45°slant bed
Spindle Type single spindle + center holder
Tool Holder Type Electric/servo
Tool Holder Station 4/8/12 station
MAX. Workpiece Length mm 800
MAX. Workpiece Diamete mm 72/120/160/200
X Axis Stroke Distance mm 300
Z AxisStroke Distance mm 400*2
X/Z Axis Fast Move mm/min. 45
Processing Coaxiality Spindle Power mm 24
kw 5
Spindle Speed mm/min 2000/1000/500

Detailed Photos
| DETAIL PRESENTATION

AUTOMATION FUNCTIONS
Independently develops and produces upper and lower silos, equipped with functions such as automatic axial positioning, workpiece in-place detection, automated interfaces, and automatic counting.


SPINDE & TURRET
Imported p4 grade spindle, with stable performance, high rigidity and precision, hydraulic clamping, strong clamping force.





GRAVITY ROLLER CONVEYOR
It can be used with roller conveyors and automated robot operations to improve work efficiency.




CNC SYSTEM
Dual channel bus absolute value servo system,no need to reset when turning on,it can be turned on and used as needed.




| PRODUCT SHOOTING


Center drive dual-tooling turret series: the coaxiality of both ends can reach up to 0.01 mm,Fully automatic production process,Upgradable multifunctional power turret,





Company Profile
Shandong Youtai Machine tool Manufacturing Co., Ltd. (YOTMT) is a high-tech enterprise in China that integrates research, production, sales and service, and is a leading brand in the field of high-end and efficient special CNC machinery.
It specializes in the research and development and manufacturing of special machine tools and combined machine tools.
The company was founded in 1998, and the YOTMT brand was established in Tengzhou City, Shandong Province in 2011.
It has a registered capital of 220 million yuan, covers an area of 30,000 square meters, and has several advanced processing, welding, sandblasting and powder coating production lines, as well as two automated heat treatment production lines.
The company's main products include multifunctional CNC milling machines, single-spindle, multi-spindle, double-sided CNC lathes, customized integrated special machine tools, as well as high-precision universal CNC lathes, machining centers, etc., which can meet the processing needs of various complex parts.
The company's products are widely used in aerospace, automotive, energy, engineering machinery and other fields, and are sold to more than 70 countries and regions through various agents and trade channels.
Shandong Youtai Machine tool Manufacturing Co., Ltd. (YOTMT) adheres to the business philosophy of "scientific innovation and quality first", and insists on the service tenet of "honesty-based and customer-oriented".
It has passed the ISO9001 quality management system certification and has won many national honors and patents such as the National Quality Trustworthy Product Certificate, National Famous Brand Product Certificate, High-tech Enterprise Certificate, etc.
The company has a high-quality research and development team and management team, constantly launching new products and new technologies that meet market demand, providing customers with high-quality products and perfect after-sales service.
The company currently has more than 70 national patents, including invention patents in various aspects such as structural design, control system, and intelligence of CNC machine tools.
The company has also won many industry awards issued by the China Machinery Industry Federation, such as the "China Machinery Industry Science and Technology Award", "China Machinery Industry Excellent Brand", "China Machinery Industry Quality Award", etc.
In addition, the company has established close cooperation relationships with many universities and research institutes, participated in many national and provincial key scientific and technological projects, and achieved remarkable results and social benefits.
It has developed into a trusted brand and product quality benchmark in the Chinese market.
Certifications
| Certifications & Activities
With excellent equipment R&D technology, numerous patents,
many large-scale cooperative enterprises, and rich experience in designing professional automated production lines, it is the preferred brand of modern factories and its products are sold well in the international market.
