Mini Small Bench Metal Lathe Turning Lathe Cjm250 Gap Bed Lathe Machine

Product Description

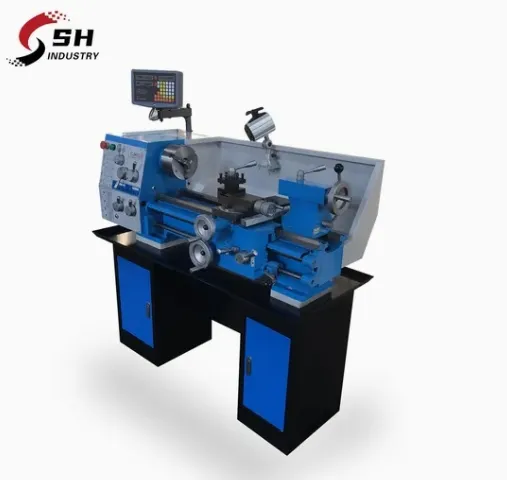

Mini Small Bench Metal Lathe Turning Lathe CJM250 Gap Bed Lathe Machine
Product Description
Product description:
1.Most economical,widely useful hobby lathe.
2.Power longitudinal feed allows threading.
3.V-way a depot double triangle and rectangle side way.
4.Easy access to safety switches.
5.Spindle is supported by precision tapered roller bearing.
6.Head stock be gear drive power.
7.Large MT4 spindle bore.
8.High precision chuck.
9.Induction cuts with cross & longitudinal power feed
Technical Specifications:

Specifications	Units	CJM250
Max.swing over bed	mm	250
Max.processing length	mm	500/700
Max.swing over cross slide	mm	150
Spindle hole diameter	mm	26
Taper of spindle		MT4
Spindle speed/steps	mm	80-1600r.p.m 12
The maximum horizontal stroke of cutter	mm	130
The knife frame maximum longitudinal travel	mm	75
Processing metric thread number		15
Processing range of metric threads	mm	0.25-2.5
Processing inch thread number		9
Processing range of inch threads	TPI	12-96
Longitudinal feed spindle turret at every turn	mm	0.03-0.275
The transverse feed amount per turn spindle turret	mm	0.015-0.137
Tailstock sleeve travel	mm	60
Taper of tailstock sleeve	mm	No.3
Electric machinery	w	750W/380V/50HZ
Gross / net weight	kg	195/210
Packing size (length * width * height)	mm	1200/1350×620×600

Detailed Photos

Company Profile
Certifications

FAQ
1: Where is your company
A: Our company is located in Tengzhou City, Shandong Province.
2: What about your warranty?
A: Warranty is one year. During warranty time, if the parts are damaged because of Nonhuman factors, we will send new replaced parts for free
3: How do you offer after-sale service?
A: We usually offer technical support online by wechat or whatsapp. Customer describe the problems and send videos and pictures, our technician will help to solve the problems
4. What is your standard package?
A: Our package is export standard plywood case with pallet.
5: What's the Payment Terms?
A: T/T, 30% initial payment when order, 70% balance payment before shipment;
6: What's the MOQ?
A: 1 set.
