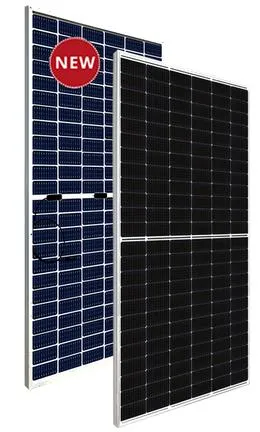

Half Cut Monocrystalline Canadian Solar 635W 640W 650W 665W 670W Solar Panel High Efficiency
| US$0.085-0.109 | 10,000 watt (MOQ) |
Basic Info.
Model NO.
CS
Number of Cells
144PCS
Application
Solar System/Home Use
Condition
New
Certification
ISO, CB, CE, ISO, VDE, SA, Inmetro
Material
Monocrystalline Silicon
Size
2261 X 1134 X 35 mm
Cell
182mm*182mm (6*24)
Weight
27.8 Kg
OEM/Ode
Accepted
Connector
4mm² / Mc4-Evo2
Junction Box
IP68
Packing
30PCS/Pallet
Loding Capacity
600PCS/40hc
Transport Package
Wooden Box and Pallet
Specification
630W-670W
Trademark
Canadian Solar
Origin
China
HS Code
85414300
Production Capacity
1gw/Year
Packaging & Delivery
Package Size
227.00cm * 114.00cm * 4.00cm
Package Gross Weight
28.000kg
Product Description
Product DescriptionModule* Higher module wattage
· Module power up to 550 W Module efficiency up to 21.5 % * Lower BOS cost and LCOE
· Up to 4.5 % lower LCOE Up to 5.6 % lower system cost· Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
* Enhanced reliability
· Compatible with mainstream trackers, cost effective product for utility power plant· Better shading toleranceSpecifications
PRODUCT SPECIFICATIONS
| MECHANICAL DATA | ELECTRICAL DATA | |||
| Cell Type | Mono-crystalline | Operating Temperature | -40°C ~ +85°C | |
| Cell Arrangement | 144 [2 x (12 x 6) ] | Max. System Voltage | 1500V or 1000V | |
| Dimensions | 2261 x 1134 x 35 mm (89.0 x 44.6 x 1.38 in) | Module Fire Performance | / | |
| Weight | 27.8 kg (61.3 lbs) | Max. Series Fuse Rating | 25 A | |
| Front / Back Glass | 3.2 mm tempered glass | Application Classification | Class A | |
| Frame | Anodized aluminium alloy | Power Tolerance | 0 ~ + 10 W | |
| J-Box | IP68, 3 bypass diodes | |||
| Cable | 4 mm2 (IEC) | TEMPERATURE CHARACTERISTICS | ||
| Cable Length (Including Connector) | 410 mm (16.1 in) (+) / 290 mm (11.4 in) (-) or customized length* | Temperature Coefficient (Pmax) | -0.34 % / °C | |
| Connector | T4 series or MC4-EVO2 | Temperature Coefficient (Voc) | -0.26 % / °C | |
| Per Pallet | 30 pieces | Temperature Coefficient (Isc) | 0.05 % / °C | |
| Per Container | 600 pieces | Nominal Module Operating Temperature | 41 ± 3°C | |
