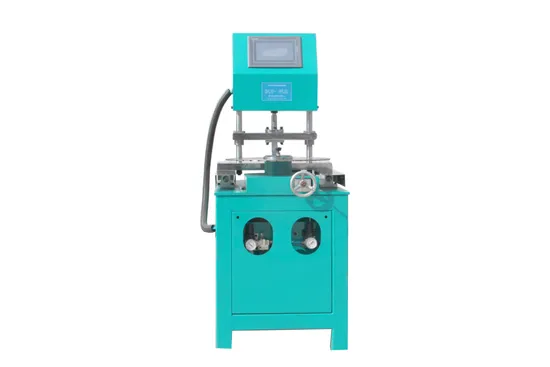

Disk Diamond Saw Blade Welding Strength Testing Machine

Product Description

Main Parameters:

1. blades mounted on a clamp to be checked on the index plate, complete saw blade clamp;
2. adjust horizontal position, until the upper grip and underlying block and the position of the saw blade teeth at a relatively reasonable (pads under front distance from the saw blade tooth root is 2mm the most suitable
3. according to the cutter diameter and tooth of the cutter in NC completed the set of relevant parameters in the system, and to adjust the test pressure;
4. started equipment, points degrees disc led saw tablets single tooth points degrees run of while, cylinder piston rod out, drive Xia pressure head down run must trip, carrying with Xia pad block with on each a a knife tooth loaded must size of torque, this torque role Xia as knife tooth no off showed that knife tooth welding qualified, instead is for not qualified into Xia a process for amendment;
5. continued until the fourth step on each tooth of saw blade after detection is complete, the device is in standby state, loosen clamp plate, remove the test finished saw blades, qualified and unqualified goods assortment;
6. repeat the above steps to complete batch saw the test operation.
Parameters:

Model	FL-JC-600
Voltage	AC220V
power	1kw
Control and os	Touch screen and PLC
Application range	Φ200mm-Φ600mm
Size	900mm*500mm*1300mm
Segments type	All types
Moment of force	4-6N*M
Air source pressure	0.8Mpa
Air source flow	30L/min
Air source connector size	Φ8mm
N.M	170KG

Product Description
The Diamond Saw Blade Welding Strength Testing Machine is a specialized equipment used to test the strength of welded joints in diamond saw blades. It is designed to evaluate the quality and durability of the welding process by subjecting the blades to controlled forces and measuring the resistance they can withstand. This machine plays a crucial role in ensuring the reliability and performance of diamond saw blades used in various cutting applications. By accurately assessing the welding strength, it helps manufacturers maintain high standards and deliver superior quality products to their customers.
Usage: for testing the welding strength between diamond segments and saw blade matrix automatically.
