Qt250 China Hot Sale Chocolate Tempering Machine

Product Description

Chocolate Tempering MachineProduct Description

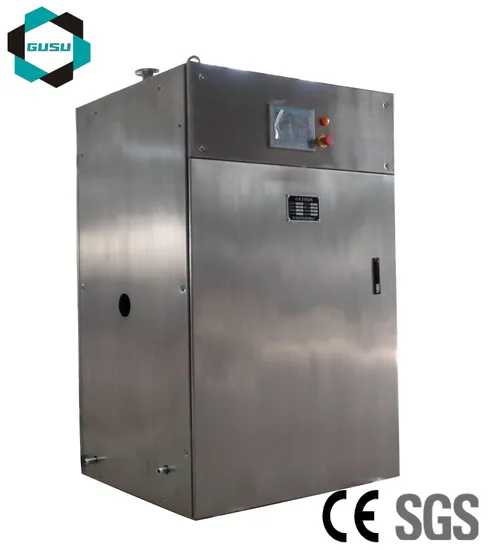

Gusu QT Series Chocolate Tempering Machines are the perfect preliminary step for molding and enrobing (coating) processes. Specially designed to provide the pure cocoa butter in the chocolate with the appropriate crystal structure, it facilitates subsequent processing and ensures structural stability after the solidification and packaging stages.
Details
The feeding pump set up in front of the chocolate tempering machine feeds the chocolate paste into the thermostat unit, which is equipped with revolving plates mounted on a main shaft driven by main shaft motor. These plates are housed in independent stainless steel double-jacketed compartments, through which circulates chilled water that must be supplied in a controlled, constant stream. A very thin layer of chocolate is provided to circulate between the plates and the compartment. Since the Chocolate Tempering Machine is divided into different zones and the temperature of each zone is controlled exhaustively, the cold is transferred quickly to chocolate, causing Beta crystals to form and the chocolate to become tempered. Same product circulation provides chocolate to molding or enrobing unit, while unused chocolate returns back to a previous storage tank.
Technical Parameters

Model	Capacity(kg/h)	Total Power(KW)	N.W.(kg)	Overall Size(mm)
QT100	100	5	450	900*800*1600
QT250	250	8.3	580	1500*850*1550
QT500	500	10	1300	1175*965*2055
QT2000	2000	14.75	1500	1760*14401960

RAQ
1 How to Order
1. Customer send us an inquiry.
2. Confirm machine type, order quantity, price, lead time, payment term etc.
3.Our sales send the Proforma Invoice with company seal.
4. Customer make the payment for deposit and send us Bank receipt.
5. Inform the clients that we have got the payment,and will arrange the production according to yourrequest, inform the estimated time
6. Production products photos will send to you for approval.
7. Clients make payment for balance and Ship the goods .
8. Order is finished when you receive the goods and satisfy with them .
9. Feedback to us about Quality , Service, Market Feedback & Suggestion.And we can do better
2 About after-sell service
Usually machine guarantee time is about 1 year . Within guarantee time . Machine breaking caused bymachine itself design defect , we are responsible for it .we can provided free charge breaking part .If machine breaking caused by humane factor , user need take responsibility for it , we will providedtechnical support .
3 About goods shipping
We have long time working shipping forwarder. We can do our best to send machine to your port safe and quickly.
4 About our online Service
24 hours online to solve any problem .
Your email will be reply within 12 hours .
Your satisfy is our pursuit .sincerely hope our cooperation .
