XCMG Official Slm4000s All Wheel Drive 4m3 Self Loading Concrete Mixer

Product Description

XCMG Official SLM4000S All Wheel Drive 4m3 Self Loading Concrete Mixer Product Description
SLM4000S self loading concrete mixer is a new 4-cube concrete mixer, with a maximum driving speed of 50km/h and a production efficiency of about 20m3/ h. All bucket action through the pilot handle to achieve.
* Output per lot: 4.0 cubic metres * Drum rotation: discharge port height 2.2 meters, tank horizontal rotation 270 tank can be raised and lowered

* ENGINE: Yuchai power ycd4p22t 125, diesel, water-cooled, 4 cylinders, 2400 RPM, rated power 91KW

* Drive mode: The engine is directly connected to the 315 torque converter through the drive shaft to the transmission with dual high and low speed through the drive shaft to the front and rear axles to achieve 4-wheel drive

* Driver's seat: Widen the luxurious cab of the excavator, front window can be opened, anti-roll, anti-falling object type, double armrest cushion seat

* Hydraulic System: closed oil, axial piston motor, three gear pump to participate in the work, tank adjustable speed

* JOYSTICK: Two hydraulic pilot joysticks control the scoop, upper arm, 270 turn, lift tank

* Clay Groove: equipped with one 150CM Removable Chute to increase the length of discharge

* Water Supply System: self-priming driven pump, 24V self-timing Centrifugal pump, hydraulic high-pressure car washing machine

* BRAKES: internal hub brakes and emergency brakes on 4 wheels, activated by a small Servo pump on a separate two-loop, negative-pressure parking brake, front and rear axles equipped with internal wheels

* Steering: assisted by a hydraulic power steering system on two steering wheels

* Fuel tank / Water tank: 2 * 380 Litres Water tank, diesel fuel tank 180 litres, hydraulic fuel tank 180 Litres

* Others: Q345 manganese steel frame, excavator luxury cab, driving image, cement bucket, air conditioning
Product Parameters

Model	SLM4000S
CAPACITY	5 batches/h or 20 cubic/hour
Weight	9500KG
Bucket(hydraulic gate)	0.7 cubic
TIRE(steel wire high pressure vacuum tire)	12R-22.5
Power System	24V
Length, width, height / wheelbase / Wheelbase	7500mm * 2950mm * 3500mm * 2590mm * 2200mm
CLIMB	45°
Turning radius	5860 mm

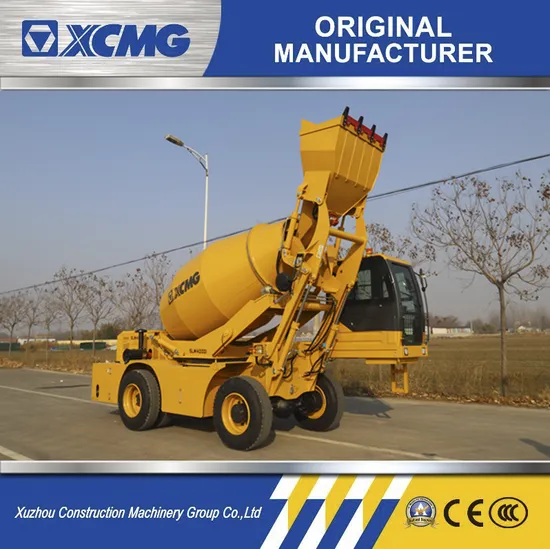

Product Picture

Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs
