ISO 1133-1 Melt-blown Nonwoven Fabric Melt Flow Index Testing Machine

Product Description

Product Description
Product Description

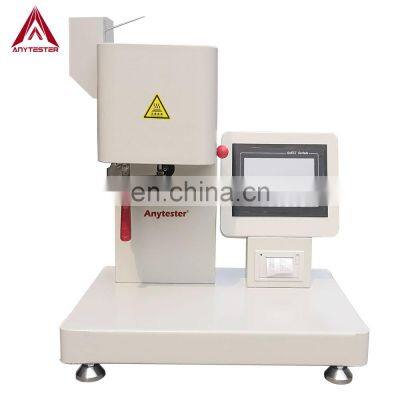

AT430E Melt Flow Index Tester is used to measure the melt flow rate (MFR) of engineering plastics including polyethylene (PE),
polyarylsulfone, fluro-plastic, nylon, polystyrene, polypropylene ABS resins, and POM resins. It can also measure the melt volume
rate (MVR) of various high polymers whose melt volume rate is between 500cm3/10min~1000cm3/10min in the melt flow state, such as melt bow materials of polypropylene or other nanofiber materials. It is widely used industries of plastic production, plastic
products, and petroleum chemical engineering and other relative academies, scientific research institutes and quality control
departments.

Standard
ISO 1133-1	ASTM D1238	GB/T 3682-2000
ISO 1133-2	JB/T 5456

Features★ High-precision and quick-response displacement sensor, resolution up to 1um, accurate data acquisition, rapid and reliable;
★ Temperature acquisition unit adopts 24-bit high-precision analog-digital converter, accurate and reliable temperature
acquisition and temperature resolution up to 0.01℃；
★ Quick heating, precise temperature-holding, short time to restore temperature after feeding material in 2 min;
★ Dual PID segmental heating to precisely and reasonably control the heat distribution in the cylinder, ensuring the temperature
evenness of cylinder within ±0.3℃；
★ Data-acquisition time interval in millisecond to capture the displacement change of material in high speed and accurately
measure the high melt flow rate up to 2500cm3/10min;
★ 7-inch Color touch screen to control terminals, with switchable Chinese-English language display, convenient to use;
★ Professional software to control temperature automatically, automatically cutting material, real time display test curve,
mini-printer to printout test data;
★ Automatic identification of the effective measurement zone according to GB standard, ISO standard and ASTM standard;
★ Controlling software can carry out the setting of test parameters, the controlling of temperature, calibration, timing, the
measurement of MVR in a specific time and automatic calculation of MFR after inputting the density;
★ Storage capacity to save test data can store up to eight groups of test parameters and save test data in the portable storage
device;
★ Optional PC software to process data and create test report;
★ Stopper for the die adopts lever-linking type drive mechanism, precise positioning, reliable sealing and easy operation.

Model	AT430E
Measuring range	(0.01~200)g/10min for MFR (500~2500)cm3/10min for MVR
Temperature range	50℃~450℃
Temperature error	≤±0.2℃
Temperature fluctuation	≤±0.2℃
Temperature resolution	0.01℃
Temperature recovery time	≤4 min
Display mode	Touch screen operation
Timing accuracy	0.1s
Temperature evenness of cylinder	±0.3℃
Displacement resolution of piston	0.002mm
Displacement error of piston	≤±0.02mm
Standard die	Tungsten carbide, Φ2.095±0.005mm
Height of standard die	8.000±0.020mm
Inner diameter of feed cylinder	Φ9.550±0.025mm
Diameter of piston	Φ9.475±0.015mm
Length of piston head	6.350±0.100mm
Weight mass maximum error	≤±0.3%
Power	AC220V 50Hz, 0.5kVA
Dimensions	550×430×650mm (L×W×H)
Weight	Approx. 62kg
