Micc High Temperature Industrial Al2O3 99.5% 95% High Purity Ceramic Protection Tube

Product Description

MICC Factory Supplied 99.5% 95% High Purity Ceramic Protection Tube
Introduction
Alumina Thermocouple protection tubes are available as a closed end tube with a reusable stainless steel coupling device. This device has 2 ways to use: the thermocouple protection tube can be hung by the flange or attached via the threaded end of the coupling device.

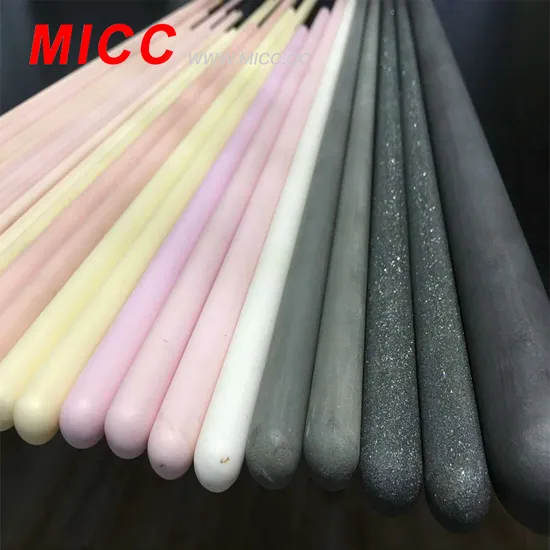

Product show
Features
1. Materials: 95% alumina oxide, 99.5% alumina oxide
2. Color: white, pink, light yellow
3. Shape: one end closed
4. Application: Used for all kinds of electric heating equipment and electric equipment, and textile machinery
Advantage
1. Good smooth and high strength
2. A variety of specifications available
3. OEM, ODM and OBM are welcomed
Technical data sheet

Tech-data	Test conditions	Unit	95%AL2O3	99.5%AL2O3
Density		g/cm3	>3.60	3.7
Bending Strength		N/m3	2.24×108	>2.74×108
Linear Expansibility	20~1000C	×10-6/0C	-	-
	20~5000C	×10-6/0C	6.2~7.5	6.2~7.5
	20~8000C	×10-6/0C	6.5~8.0	6.5~8.0
Specific Inductive Capacity	1MH2		9~10	9~10.5
	10GMH2		9~10	-
Dielectric Loss Value	1MH2	×10-6	≤4	≤1.5
Tangent	10GMH2	×10-6	≤10	-
Volume Resistance	1000C	Ω·cm	>1013	>1014
	3000C	Ω·cm	>1016	>1012
	5000C	Ω·cm	108	-
Breakdown Strength		KV/mm	15	-
Thermal Conductivity	200C	W/m·K	25.2	29.2

Sizes in stock

CT95-4*6.5*0.7*700	CT95-13*9*1500
CT95-4*6.5*0.7*750	CT95-15 X 11 X 1000MM
CT95-5X 0,7 X 1000MM (4 FUROS)	CT95-15 X 11 X 500MM
CT95-5*0.7*700MM(4 FUROS)	CT95-15 X 11 X 700MM
CT95-6 X 4 X 700MM	CT95-15*10*1100
CT95-7*5*1000	CT95-15*10*1000
CT95-8*5*650	CT95-17*13*1125
CT95-8*5*800mm	CT95-18*12*1100
CT95-10*6*800	CT95-20*10*1200
CT95-10*6*1000	CT99-20*10*1200
CT95-10*6*1250	CT95-20 X 15 X 500MM
CT95-10*7*400	CT95-20 X 15 X 700MM
CT95-10*7*500MM	CT95-20*15*800
CT95-10*7*600	CT95-20*15*1000
CT95-10*7*650	CT95-20*15*1100
CT95-10 *7 *700	CT95-24*18*1100
CT95-10*7*1030	CT95-24*18*1500
CT95-12*8*1000	CT95-24 X 19 X 1000MM
CT95-12*8*800	CT95-24*19*500MM
CT95-13*9*1000	CT95-32*24*1100

Check below for more information on placing

1. Inquiry-Professional and accurate q uotation.

2. Confirm the price, trade term, lead time, artwork, payment term etc.

3. MICC sales send the Proforma Invoice with MICC seal.

4. Customer arranges the payment for deposit and sends us bank slip.

5.Initial Production step-Inform the clients that we have got the payment. And will make the samples according to your request, send you photos or Samples to get your approval. After approval, we inform that we will arrange the production & inform the estimated time.

6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again.

7. End Production-Mass production products photos.

8. Clients make payment for balance and MICC ships the goods. Inform the tracking number and check the status for clients.

9. The order is finished perfectly when you receive the goods and get satisfied with them .

10. Feedback to MICC about Quality , Service, Market Feedback & Suggestion. And we will do better.

Sample Delivery
1. Samples delivery According to your design . Sampling time:3-5days
2. Samples delivery: Free for Existing Samples Sampling time:1day

Shipment
International express for sample or small orders. Air transportation and sea transportation for big orders.
