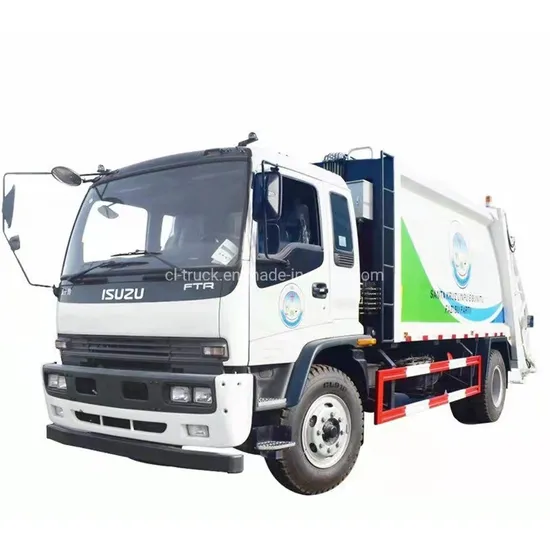

Japan Isuzu Ftr 10tons 12tons 14tons Refuse Compactor Garbage Trucks

Product Description

Japan isuzu FTR 10tons 12tons 14tons Refuse Compactor Garbage Trucks
Product information

Mian Technology Parameter
Model Name	I SUZU FTR 12m3 Compactor Garbage truck
Driving Type	4×2,left hand drive
Color	White,Blue,box can choose
Weights
Rated payload weight(kg)	15000
Curb weight(kg)	9420
Dimensions
Wheelbase(mm)	4500
Overall Dimension(mm)	8730×2470×3330
Box dimension	12 m3
Max speed(km/h)	90
Engine
Engine model	4HK1-TC50(205HP)
Engine type	4 stroke water-cooled,inter-cooling
No. of cylinders	straight-6 cylinders
Displacement(L)	5.193L
Max. output (kw)	151kw
Emission standard	Euro 5
Drive Line
Transmission	MLD 6 speeds ,6 forwards,1 reverse gear,manual operation
Steering	Power steering
Brake	Air brake
Cab
Air container	Have
Standard configuration	3 persons permitted,electrical window .USB,stadio,central lock
Axle
Front axle	6.3 tons
Rear axle	13 tons
Tire specification
Tire specification	10.00R20 standard tire,6 tires+1 spare tire
5m3 garbage compactor truck
Box valume	12m3
Box material	Side 4mm,bottom 5mm
Sewage tanker	200L
Loading time	8-10S
The cycle time of the loading	50-60S/per turn
Unloading time	30-40S
Hydraulic system pressure	16Mpa
Other
Electric system	12V/24V
Equipment	One tool box

Company information 1. ChengLi Special Automobile Co.,Ltd, which was appointed by the Development and Reform Committee of China, is a famous manufacturer producing all kinds of special trucks for municipal & environmental construction, virescence, petrol & medicals, container, and semi-trailer. Brands registered include CLW .Our company has independent export right and has a mount of clients in overseas. Our leading varieties include more than 100 types of trucks and related products such as water truck, garbage truck,sewage suction truck, fuel tank, high-altitude operation truck, truck mounted crane, dump truck, LED advertising truck,LPG truck/trailer,LPG filling tank, van truck, semi-trailer, fire engine, refrigerator truck, tractor, bulk cement truck, chemical liquid truck, concrete mixer truck, and others.
2.Our company has solid technology, flawless inspection, advanced equipment, reliable quality and flexible modes of operation. What's more, our company has roundly passed ISO9001:2000 and CCC (China Compulsory Certification) certifications. Series trucks of Cheng Li have procured remarkable achievements interiorly, especially from the investment in South Suburb Cheng Li Automobile Industry Park.
3.Quality control:our company truck pass ISO,3C,ASME certification.
our factory have the quality Quality Inspection Department.before sending truck for facotry ,our quality inspection department will check the truck carefully.
4. Export market: Africa,Asia,South America,Pacific and so on
5.Our company cooperate with famous chasis manufacturers,such as DONGFENG,SHINOTRUK,FOTON, JAC,JMC ,SHACMAN,FAW and etc.
6.Factory Show:

Service 1.We can product truck accroding the customer's requirments(color,size,logo and so on)
2.We can send our technician to arrive the customer's country to provide the service .
3.We can train customer's workers for free.
4.Our truck warranty:12 months.we can provide the parts for free at the frist year.
Success Case Show
Customer Visit FAQ 1.Payment term.
-T/T,30% deposit ,and pay the blance before shippment from our factory
-L/C,L/C price is expensive than T/T price.
2.What about quality ?
Our truck are brand new truck,Our survival is based on quality and credit standing is the guarantee of our success. We will do as we can to treat customers honestly, manage flexibly, guarantee high quality but low price, and keep high efficiency.
our company truck pass ISO,3C,ASME certification.
3.Visit our factory
Our factory are in suizhou city,hubei province china.
You can take train or plane to arrive wuhan citry(wuhan city is the capital of hubei province) .and our driver will pick up you at wuhan railway station or wuhan tianhe airport. And if need the invitation letter ,pls send your private information and company information to me. Contact US
