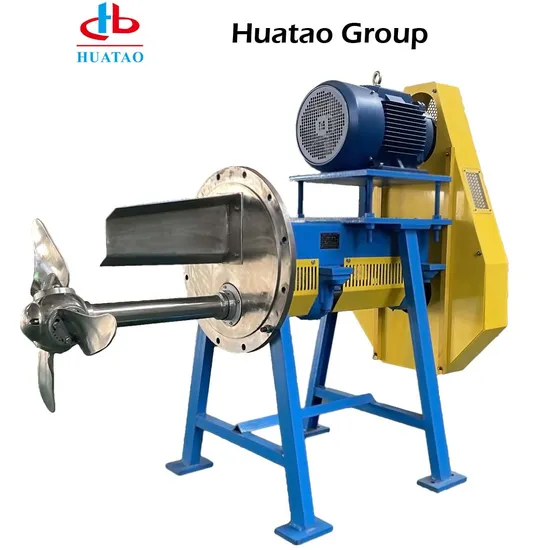

Waste Paper Pulping Stock Propeller Chest Agitator
| US$2,000.00-5,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
HTA06
Usage
Pulp Chest
Nominal Volume(m³)
20-500
Impeller Diameter (mm)
Φ1000
Rotating Speed of Impeller (r /min)
245
Certification
CE, ISO
Condition
New
After-sales Service
Replace for Free for Quality Issure
Material
Slurry Part SS304 and Outside Cast Iron
Volume
20-500
Function
Mix Pulp
Power
7.5-132
Diameter
600-2000
Consistency
Lower Than 6%
Transport Package
Wooden Case
Specification
JBT400-2000
Trademark
HUATAO
Origin
China
HS Code
84399900
Production Capacity
30-100 T/Day
Product Description
Waste Paper Pulping Stock Propeller Chest Agitator Product DescriptionIt is suitable for slurry concentration which is below 5%, 15-100m3 of the round pool. Advanced blade design,strong thrust.It can be adjusted the angle according to the concentration of the slurry.It has the advantages of small occupation area, fast mixing time, high efficient mixing, easy repairment. Compared with the old-type mixing devices, it has the advantages of easy construction pool, large slurry volume, high recycling rate. Detailed Photos
Product Parameters
| Type | HT-600 | HT-800 | HT-1000 | HT-1300 | HT-1500 | HT-2000 |
| Diameter of impeller: mm | Φ600 | Φ800 | Φ1000 | Φ1300 | Φ1500 | Φ2000 |
| Chest volume: m3 | 20-50 | 40-80 | 70-100 | 100-130 | 130-200 | 300-500 |
| Power: kw | 7.5-11 | 11-18.5 | 22-30 | 30-55 | 70-100 | 110-132 |
The Pulp Chest Agitator is composed of pulley, bracket, main shaft, base, sealing ring, packing chamber, shaft sleeve, gland, impeller, shaft cap, belt cover, bearing seat, bearing, V-belt, motor, etc.
Related Pulp Poducts
Our Professional Team
Huatao Service
1. Very Strong Professional Team with 14 years experience, office staff 35 people.
2. Excellent Oral English Ability to communicate with foreign customers.
3. Strong responsibility and good after sale service . Refund money or replace for free for any quality problem.
