2015 Top Ranking 40m3 54m3 56m3 60m3 LPG Semi Trailer

Product Description

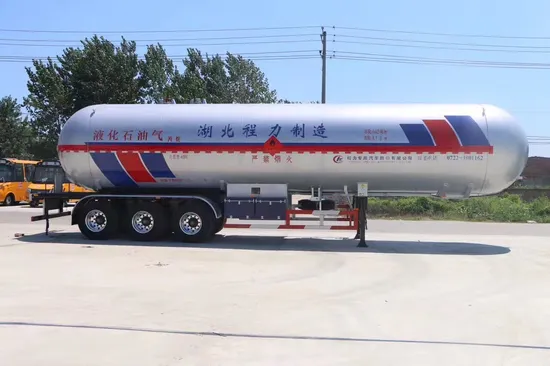

Heavy Duty 3 Axle lpg gas tanker trailers, 40m3 54m3 56m3 60m3 lpg tank semi trailer

Item			Unit	Parameter
Product name				3 axle semi-trailer
Practical capacity			M3	45.3
Gross weight			kg	40000
Curb weight				16440
rated loading capacity				23560
Overall dimension			mm	11360*2490*3980
Axle				3
Wheelbase				5100+1320+1320
Tread		Front tread		-
		Rear tread		1840/1840/1840
Front/rear suspension			mm	-/1745
Leaf spring				-7/7/7
Fifth wheel max loading			kg	16000
Tyre specification				12.00-20
Exclusive configuration	Tank material		Q345R
	Standard configuration		12T BPW axle, safety valve,single fluid two valve box.hydraulic legs,traction pin,liquid Indicator,pressure gauge,temperature gauge,emergency cut-off valve,valve box,fire suppression bottle,spark hider cover,anti static grounding tape,protective guard,tyre protective shield.
	Other		Filling Medium:liquid ammonia:design pressure 2.16Mpa,design temperature 50°C,filling ratio:0.52t/m3,corrosion allowance:1mm:dimension of tank:10924*2426mm .
	Standard configuration		GB150-1998<Steel pressure vessels>,Supervision regulation on safety technology for pressure vessel,Supervision regulation on safety technology for Liquefy gas tank truck.

1,We have the biggest LPG truck capacity 35.5CBM.
2,We have the biggest LPG semi-trailer capacity 60CBM, low transportation cost,bring more profit.
3,We can also provide LPG storage tank ranged from 5CBM to 120CBM, both on ground ones and underground ones.
CLW functional characteristics of liquefied petroleum gas tank:
1, pressure components of the product materials, dimensions and weld quality, operation quality, installation quality,safety devices and accessories within the strict qualification
2, conventional tank materials on physical and chemical tests such as: mechanical properties and chemical composition.Their welded joints, weld, tank head, the pressure of the geometric location of each component through rigorous X-ray non- destructive testing and magnetic particle testing inspection.
3, seal on the product, pressure, and those who can affect the operation of product safety testing various technical indicators.
4, A,B Class 100% ray weld inspection, II level qualified, C, D Class welds 100% magnetic particle inspection, I level qualified.
More detailed pics
Chengli Special Automobile Co., Ltd
1. We are a group company with one years quality guarantee.
2. We have advanced technology and equipments, mature experience.
3. We are leading manufacturer in China, the price of our trucks are competitive.
4. We have modern management system, the delivery time are on time.
5. We exports many trucks over the world. We have professional sales team.
If you are interested in our trucks, pls contact me, I will send our best quotation to you.
