100% Braiding Best Factory Price Flexible Microphone Cable
| US$0.50-1.00 | 10,000 Meters (MOQ) |
Basic Info.
Model NO.
DX-MIC-04
Type
Twisted Pair
Species
Microphone Cable
Connector
None
Material Shape
Round Wire
Wire Core Material
Bare Copper Wire
Certification
RoHS, CE, ISO9001
Brand
Dx
Transport Package
100m/Plastic Reel
Specification
DX-01
Trademark
DX
Origin
Jiaxing
HS Code
85444911
Production Capacity
50000 Kilometer/Year
Packaging & Delivery
Package Size
30.00cm * 30.00cm * 14.00cm
Package Gross Weight
3.000kg
Product Description

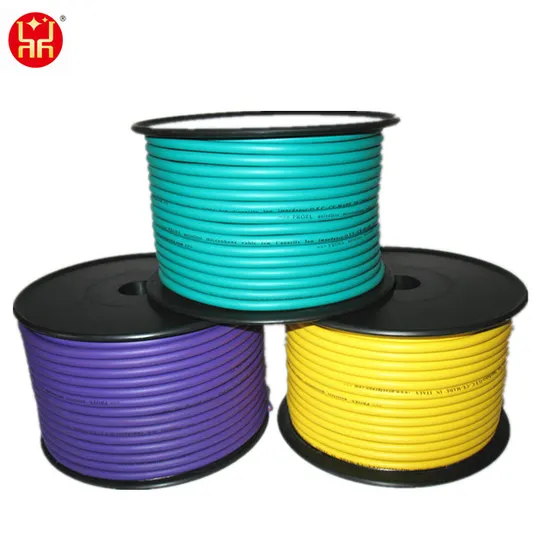

Product DescriptionHigh Grade Low Noise Microphone Cable
1)standed bare copper
2)pvc insulation
3)cotton thread or other filled
4)copper braid shield
5)flexible TPE sheathed
Detailed PhotosProduct Parameters
| CONDUCTOR | INSULATION O.D(mm) | COTTON YARN | AL FOIL | BRAID/WRAP SHIELD | MON O.D (mm) |
| 1CX18/0.12 | 1.3 | filled | / | 32/48/64/80/0.12mm | 5.0 |
| 1CX30/0.12 | 1.8 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 5.8 |
| 1CX28/0.15 | 2.1 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 6.0 |
| 1CX28/0.12 | 2.1 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 6.0 |
| 2CX10/0.12 | 1.3 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 5.0 |
| 2CX23/0.12 | 1.5 | filled | 10*0.04 | 32/48/64/80/96/112/0.12mm | 6.0 |
| 2CX32/0.10 | 1.5 | filled | 10*0.04 | 32/48/64/80/96/112/0.12mm | 6.5 |
| 2CX21/0.12 | 1.6 | filled | 10*0.04 | 32/48/64/80/96/112/0.12mm | 6.5 |
| 2CX18/0.12 | 1.3 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 6.0 |
| 2CX20/0.12 | 1.6 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 5.3 |
| 2CX10/0.12 | 1.3 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 6.0 |
| 3CX18/0.12 | 1.3 | filled | 10*0.04 | 32/48/64/80/96/0.12mm | 6.0 |
| No. of core | Conductor construction | Braid | Max. diameter of cable | |
| AWG | construction No./mm | mm | ||
| 1 | 26 | 10/0.12 | 32/0.12 48/0.12 64/0.12 or to client's require | 5.8 |
| 24 | 19/0.12 | 5.8 | ||
| 22 | 26/0.12 | 5.8 | ||
| 20 | 42/0.12 | 5.8 | ||
| 2 | 26 | 10/0.12 | 6.0 | |
| 24 | 19/0.12 | 6.0 | ||
| 22 | 26/0.12 | 6.0 | ||
| 20 | 42/0.12 | 6.0 | ||
| 3 | 26 | 10/0.12 | 6.0 | |
| 24 | 19/0.12 | 6.0 | ||
| 22 | 26/0.12 | 6.0 | ||
| 20 | 42/0.12 | 6.0 | ||
Inner packing : plastic cover / wooden drum / paper drum ;
Outer packing : 2/4/ 6 roll / carton box ;
Other packing according to customers' request !
Company ProfileJiaxing Dingxin Electronic has specialized in manufacturing cable and its parts since 2012.
Our products mainly including audio and video cable, speaker cable, microphone cable, telephone cable, electric wire ,monitor cable, alarm cable, fire alarm cable and related parts& accessories etc.
All cables export only . We have many years of production experience and are familiar with the needs of all regions of the world
Our cable products are exported to all parts of the world by taking advantage of our hard-won reputation, honesty, reliability and quality, Dingxin's goal is to ensure product quality and better serve customers
At the same time, we are looking for global partners overseas. If your company is the end user, distributor or agent of cables, please contact us.
We look forward to working with you in the near future.
