Full-Automatic Facial Tissue Paper Making Machine Tissue Paper Production Line Equipment

Product Description

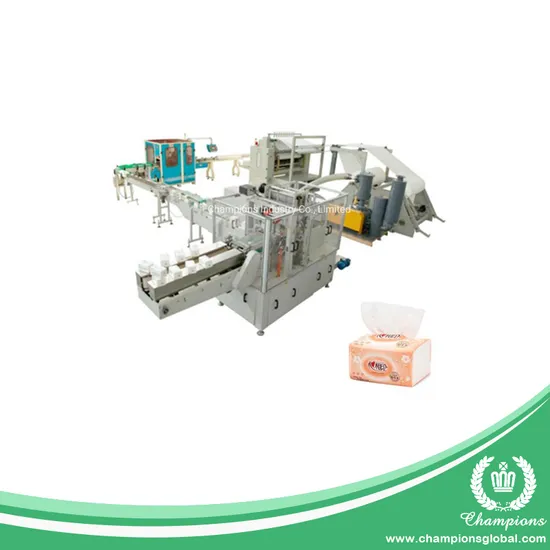

Full-automatic Facial Tissue Paper Making Production Line Equipment
This facial tissue production line is consist of 3 machines, facial tissue folding machine, single channel log saw and automatic facial tissue film packing machine, It can process tissue paper from jumbo roll into single bag film packing facial tissue. Product Description Facial Tissue Folding Machine
1.Automatic counting points a whole row output
2.Stepless speed regulation unwind and can adapt to rewind high-low tension paper material
3.Adopt PLC computer programming control, pneumatic paper and easy to operate;
4.Frequency conversion control, saves energy.
5.The product width is adjustable, to meet different market requirement.
6.Supporting paper rolling pattern device, pattern obvious, flexible to market demand. (patterns can choose)
7.It can make "V"type single layer towel and two layers glue lamination .(Optional) Single Channel Log Saw
1.Servo system,PLC,Touch screen
2.Have paper output sensor to test the system,including packing machine and convey machine, it will automatic stop the machine when error happen.
3.Motor Frequency Converter Control, Energy Saving and Power Saving.
4.The equipment control console is a touch screen, and the panel is carved by stainless steel.
5.The electronic control box of the equipment is integrated with the main engine to ensure that the circuit is not damaged and safe.
6.The safety cover of the equipment has built-in iron mesh and plexiglass for external observation, which has the function of safety protection.
Automatic Single Bag Packing Machine
1. Adopting packing way by wrapping, folding and sealing with compact structure, it makes the package look beautiful and the seal tightened.
2. Controlled by stepless speed regulation, touch screen and PLC, the display on the human-machine interface makes maintenance more simply.
3. Applied with auto-arranging feeding conveyor, it is convenient to connect the conveyor with automatic production line, saving the labor cost to the maximum.
4. It saves much packing material by means of photocell checking, servo tracking, and auto-stop of film feeding without product.
5. High automation, high profession, high efficiency and less trouble.
6. With wide packing size range, various packing sizes can be quickly interchanged.
Product Parameters

Production speed	(90-120)m/min
Product unfold size (mm)	180 (length) x(130-210) (wide adjustable)
	190 (length) x(130-210) (wide adjustable)
	200 (length) x(130-210) (wide adjustable)
Folding products size (mm)	90 (length) x(130-210) (wide adjustable)
	95(length) x(130-210) (wide adjustable)
	100 (length) x(130-210) (wide adjustable)
Maximum cutting base paper size	2L:420mm	3L:680mm	4L:840mm	5L:1050mm	6L:1260mm
Equipment electric power	2L:3.0KW	3L:3.0KW	4L:4.0KW	5L:5.5KW	6L:5.5KW
Vacuum blower	2L:7.5KW	3L:11KW	4L:15KW	5L:15KW	6L:22KW
Machine dimension (m)	Depends on Machine Model
Equipment weight(kg)	Depend on the size and configure

Detailed Photos
Packaging & Shipping
Company Profile
Champions Corporation is professionally manufacturing and supplying all raw materials for disposable hygiene products and also including comprehensive consulting for the hygiene machinery project.
Since 2002, we started our first production line for disposable hygiene products, through decades of development; our business includes manufacturing baby diaper, lady napkin, adult diaper and supplying all raw materials for hygiene products. We build up our reputation in domestic market and cooperate with some long-lasting customers overseas.
And for tissue paper machines, our factory have more than 20 years development history, we are professional on all kinds of tissue paper processing machines including Toilet Paper and Kitchen Towel Rewinding Machine, Facial Tissue Making Machine, Hand Towel Folding Machine, Napkin Machine, Pocket Tissue Machine and relevant cutting machine and packing machine. We export more than 200 sets machine to over 20 countries every year. We upgrade our technology and expand our scale step by step.
Quality first and client first are always the objects we peruse.
Hope to start a bright future with you!
Our Advantages Professional Engineer
Our factory is more than 20 years, we witness the development of tissue paper processing machines.
As a result, we have a lot of experienced engineers, to design machine according to client's requirement, and make sure each machine working perfectly.
We persue good machine quality, we keep research new technology and upgrade the machine better and better.
Professional Sales
As we have our own factory, our sales knows the machine very clearly, we can explain every details no matter you are familiar or not to these machines.
We give professional solutions to meet different client's requirements. You will always find one happy solution to start your business here.
And we welcome clients visit our factory, and we will give you transportation tips before you come, and arrange car to pick you from train station or airport.
Good After-sales Service
Customers' satisfaction is always our best feedback, we put client in the first place. We have 24 online service, 7 days. And we always give fast response to solve your confusion.
During all machine lifetime, we guarantee good after-sales service. Machine is high value product which can use for years, no matter you meet machine small problems or you need to buy machine spare parts, you can come to us. You buy our machine, you have our back on.

FAQ 1. Are you factory manufacturer?
A: Yes, we are factory manufacturer, our factory history has been more than 20 years, and welcome to visit my factory when you come to China.
2. How long is your Warranty?
A: Our machine warranty is ONE year guarantee but machine after-sales service is all machine lifetime.
Within ONE year warranty, for the main machine spare parts like PLC, Motor have damage not by manmade, we will courier the spare parts immediately for free.(not including easy-wear spare parts like blade)
After ONE year warranty, we will still provide after-sales service, but if need to courier spare parts, client needs to cover the cost.
3. What about the machine installation?
A: All our machine will testing before shipping, and the testing cost is for free, then we take apart the machine to several packages for shipping. We have engineer overseas service, if you don't have any machine experience, we can send engineer to your place to install the machine and train your workers, for this service, client need to cover its cost.
4. What's the payment terms?
A: 30% deposit by T/T, and pay the balance after machine testing before shipment by T/T.
5. What's the delivery time?
A: Almost all the machine start production after ordered, so machine delivery time is about 60 days, for urgent needs please check with sales if have ready stock or make it faster.
