Nianpeng Block Making Brick Machine with Stand Seaworthy Packing

Product Description

Product Description

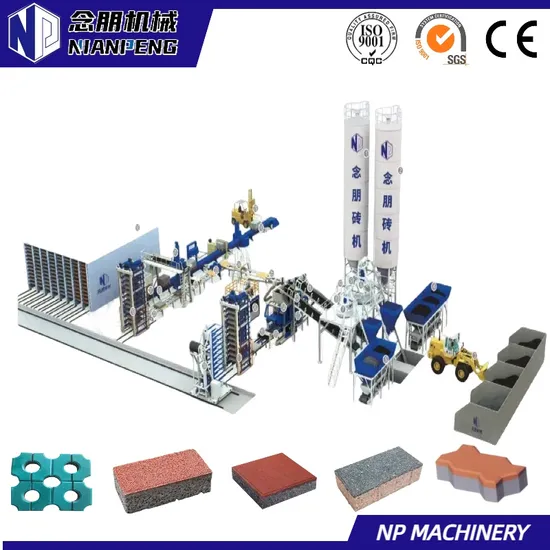

GWHZS35 HIGH MERCHANT MIXING STATION & ONE DRIVE FOUR WET PRODUCTION LINE
EQUIPMENT FEATURES
The batching system can weigh a variety of raw materials at the same time, and the end of the belt conveyor is equipped with a spiral tensioning
device to prevent the belt from slipping and running off, ensuring efficient operation.
2. The shaft end of the mixer is sealed and equipped with oil injection lubrication system, the lining plate and blade are made of wear-resistant
cast iron material, the angle iron design is reasonable, the mixing is efficient and fast, and the service life is long;
3. The measuring system adopts advanced electronic weighing, digital display, and other microcomputer control technology, electronic weighing
has buffering and automatic compensation functions;
4. Computer control systems can realize automatic, semi-automatic, and manual control, with formula input storage, automatic correction of splash
error, parameter adjustment, calibration scale, real-time printing, and other functions.

Mixer model	JS750	Discharge capacity	750L
Complete power	66.5KW	Feed capacity	1200L
Complete weight	10T	Theoretical output	≥35m³/h
Overall dimensions	13010*2000*2800MM	Cycle time	72S
Implementation standard	GB/T1071-2015	Discharge height	3.8m

Product Parameters
Small prefabricated parts production equipment has the following advantages:
First, the production efficiency is high. It can mass-produce prefabricated parts in a short time. For example, compared with manual production, small concrete prefabricated parts can be operated continuously and quickly complete processes such as pouring and vibrating, which greatly improves the production speed.
Second, the product quality is good. Equipment production can make the size of prefabricated parts more accurate. For example, the production of curbstone prefabricated parts can ensure that the error of its length, width and height is within a very small range, and the texture is uniform, and the quality indicators such as density are more stable. This is because the equipment has more precise control in the vibration, compaction and other links.
Third, it saves labor costs. The small prefabricated parts production equipment has a high degree of automation, which reduces the dependence on a large number of manual labor. For example, the operator only needs to simply operate the equipment and add raw materials, which reduces the labor intensity and reduces the manpower input.
Fourth, it is more flexible. This equipment can easily adjust the production of different types of prefabricated parts. As long as the mold is replaced, prefabricated parts of various shapes and specifications such as slope protection bricks and trench covers can be produced to meet various engineering needs. Detailed Photos
FINISHED PRODUCTS DISPLAY
FINISHED PRODUCTS DISPLAY
FINISHED BRICK APPLICATION
Finished brick application
