HD3105y-14 Reliable Vmc CNC Mill-Turn Machine for Diverse Manufacturing Needs

Product Description

Product Description
·Integral one-piece bed construction,Our machine features a 30° inclined bed, significantly enhancing machining stability and precision.
·Equipped with hard rails on all axes, guaranteeing the production of superior quality products.
·Achieves impressive rapid traverse speeds of up to (X/Z): 265/730 m/min, ensuring swift and efficient operations.
·Versatile structural configurations tailored to meet diverse customer requirements, including extended beds, turret punch presses, and advanced servo axes.
·Ingenious compact design with an integrated motor, substantially reducing the machine's length (standard bed design).
·Ergonomically designed for seamless operation and effortless maintenance.
Product Parameters

ITEM			unit	HD3105Y
CAPACITY	Swing Over the Bed		mm	940
	Swing Over the Carriage		mm	870
	Max.Turning Dia.		mm	300
	Max.Turning Length		mm	660
	Bar Capacity	Main	mm	74
		Sub	mm	-
SPINDLE	Chuck Size	Main	inch	10′′
		Sub	inch	-
	Spindle Bore	Main	mm	74
		Sub	mm	-
	Spindle Speed	Main	r/min	3,000
		Sub	r/min	-
	Motor(Max/Cont.)	Main	kw(HP)	18.5/15
		Sub	kw(HP)	-
	Torque(Max/Cont.)	Main	N·M	470/286
		Sub	N·M	-
	Spindle Type	Main	-	BELT
		Sub	-	-
	Spindle Nose		-	A2-8
			mm	-
	C-axis Indexing		deg	0.001
FEED	Travel	X/Y	mm	215/110{±55)
		Z/ZB	mm	730
	Rapid Traverse Rate	X/Y	m/min(ipm)	24/10
		Z/ZB	m/min(ipm)	30
	Slide Type		-	BOX GUIDE
TURRET	No.of Tools		ea	12[24]
	Tool Size	O.D	mm	25[24Tool:20]
		I.D	mm	32
	Indexing Time		sec/step	0.2
	Y-Axis Type		-	WEDGE TYPE
LIVE TOOL	Milling Tool Speed		r/min	4,000
	Motor(Max/Cont.)		kw(HP)	2.7
	Torque(Max/Cont.)		N·M	46
	Collet Size		mm	∅16{ER25}
	Type		-	BMT55P
TAILSTOCK	Taper		-	MT#5
	Quill Dia.		mm	∅100
	Quill Travel		mm	120
	Travel		mm	730
TANK CAPACITY	Coolant Tank		ℓ(gal)	180
	Lubricating Tank		ℓ(gal)	3
POWERSUPPLY	Electric Power Supply		kVA	35
	Thickness of Power Cable		mm²	Over 25
	Voltage		V/Hz	220/50
MACHINE	Floor Space(LxW)		mm	3,284x1,817
	Height		mm	1,950
	Weight		kg(lb)	6,200

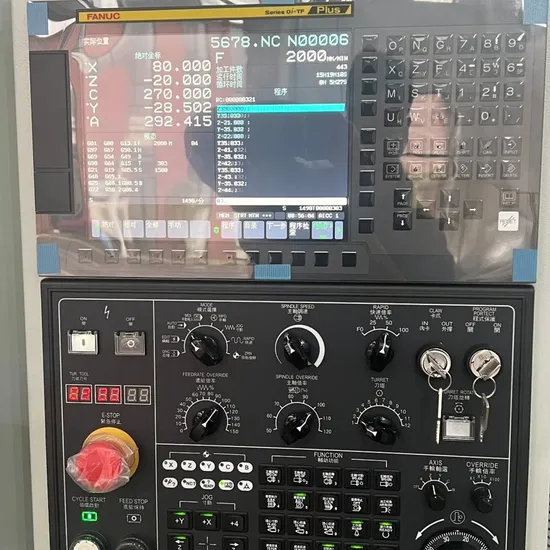

CNC	Controller-		-	FANUC Oi Series

Detailed Photos
Robust one-piece bed structure
Enhanced structural analysis for optimal performance
Through meticulous structural analysis, the main unit structure is optimized to lower the machine's height while maintaining its dynamic rigidity during heavy-duty machining. The HD-3105 model, with its 30° inclined bed, ensures exceptional machining stability, even under demanding conditions.
Integrated Cutting Fluid Tank
The cutting fluid tank is strategically placed at the front of the bed for enhanced usability. Plus, the right side is designed for easy removal of ferrous chips, ensuring a cleaner workspace.
Hard Rail
The implementation of hard rails on all axes delivers outstanding vibration absorption during intense machining, ensuring superior product quality. The Z-axis, specifically designed with an extended shaft, excels in machining products with long shaft lengths.
Sealed GIB Construction
The X-axis guideway mounting surface is fortified with a sealed GIB structure, minimizing the risk of damage from cutting debris. This sealed GIB structure significantly enhances the durability of the X-axis guideway.
6-Sided Constrained Design for Superior Mobility
Travel Range X/Y: 265/730 mm ·Spindle Box
The spindle box features a symmetrical design with an efficient heat dissipation structure, reducing thermal deformation. The shaft, supported by a combination of tapered roller bearings and angular contact ball bearings, offers enhanced cutting capabilities. The shortest 3V belt minimizes vibration, extending the machine's lifespan.
Spindle Specifications: A2-8 (12" chuck)
Spindle Speed: 2,800 rpm
Motor Power: 18.5/15KW
