UL 6AWG 4AWG 3AWG 2AWG 1AWG Thhn/Thwn CCA Wire Nylon Sheath Building Cable

Product Description

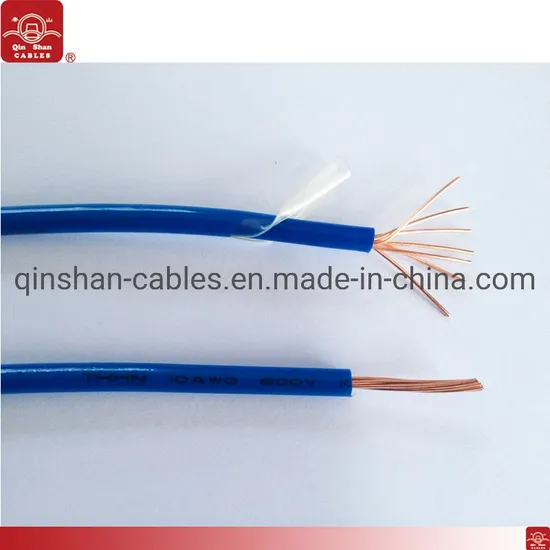

UL 6AWG 4AWG 3AWG 2AWG 1AWG THHN/THWN CCA Wire Nylon Sheath Building Cable
Thermoplastic Insulated, Nylon Sheathed Heat, Gasoline&Oil Resistant 600 Volt Copper
Construction :
1.Conductor :Solid or Stranding Soft Drawn Copper Wire
2.Insulation : Tough Heat And Moisture Resistant PVC (Polyvinyl Chloride)
3.Jacket: Nylon(Tough Polyamide)
4.Color Available&Abbreviations:
BK-Black/ WE-White/ RD-Red /BE-Blue /GN-Green /YW-Yellow /
OE-Orange / BN-Brown/ GY-Grey /PK-Pink /PE-Purple
Standard:
ASTM- B3,B8
UL83,UL758,UL1063
Technial:
Rated Voltage:600V
Rated Temperature:
THHN: -20°C-90°C;THWN:-20°C-75°C;THWN:-20°C-90°C
Application:
THHN building wire is primarily used in conduit and cable trays for services,feeders and branch circuits in commercial or industrial applications as specified in the National Electrical Code.Designed to be installed without application of a pulling lubricant.
These wires have multiple ratings. Depending upon the product application, allowable Temperatures are as follows:
THHN - Dry locations not to exceed 90° C
THWN- Wet or oil locations not to exceed 75° C or dry not to exceed 90° C
THWN-2- Wet or dry locations not to exceed 90° C or oil not to exceed 75° C
MTW- locations Wet or oil not to exceed 60° C or dry not to exceed 90° C
AWM- Dry locations not to exceed 105° C
Specification Parameter :

Size AWG or /MCM(kcmil)	No.of Strands	Insulation thickness	Insulation thickness	Jacket thickness	Jacket thickness	Nominal Overall Diameter	Nominal Overall Diameter	Approx. weight	Approx. weight	Ampacity (A)	Ampacity (A)
		mm	mil	mm	mil	mm	mil	kg/km	lbs/kft	70ºC	95ºC
14*	solid	0.38	15	0.10	4	2.60	102	22	15	15	15
12*	solid	0.38	15	0.10	4	3.02	119	34	23	20	20
10*	solid	0.51	20	0.10	4	3.81	150	54	36	30	30
14	7	0.38	15	0.10	4	2.70	106	23	16	15	15
12	7	0.38	15	0.10	4	3.20	126	35	24	20	20
10	7	0.51	20	0.10	4	4.00	157	55	38	30	30
8	7	0.76	30	0.13	5	5.30	209	89	60	50	65
6	7	0.76	30	0.13	5	6.20	244	134	90	65	75
4	7	1.02	40	0.15	6	7.80	307	215	144	85	95
3	7	1.02	40	0.15	6	8.60	339	266	179	100	110
2	7	1.02	40	0.15	6	9.20	362	329	221	115	130
1	7	1.27	50	0.18	7	10.60	417	422	284	130	150
14	19	0.38	15	0.10	4	2.78	109	23	16	155	15
12	19	0.38	15	0.10	4	3.27	129	35	24	20	20
10	19	0.51	20	0.10	4	4.11	162	55	38	30	30
8	19	0.76	30	0.13	5	5.43	214	90	61	50	65
6	19	0.76	30	0.13	5	6.36	250	136	92	65	75
4	19	1.02	40	0.15	6	8.11	319	218	147	85	95
3	19	1.02	40	0.15	6	8.82	347	270	182	100	110
2	19	1.02	40	0.15	6	9.63	379	334	225	115	130
1	19	1.27	50	0.18	7	11.09	437	428	288	130	150
1/0	19	1.27	50	0.18	7	12.08	476	531	357	150	170
2/0	19	1.27	50	0.18	7	13.34	525	669	449	175	195
3/0	19	1.27	50	0.18	7	14.64	576	832	559	200	225
4/0	19	1.27	50	0.18	7	16.04	631	1037	697	230	260
250	37	1.52	60	0.20	8	17.79	700	1234	829	255	290
300	37	1.52	60	0.20	8	19.09	752	1467	986	286	320
350	37	1.52	60	0.20	8	20.39	803	1701	1143	310	350
400	37	1.52	60	0.20	8	21.49	846	1931	1297	335	380
500	37	1.52	60	0.20	8	23.59	929	2394	1608	380	430
600	37	1.78	70	0.23	9	26.17	1030	2880	1934	420	475
750	37	1.78	70	0.23	9	28.77	1133	3570	2398	475	535
1000	37	1.78	70	0.23	9	32.57	1282	4717	3169	545	615
