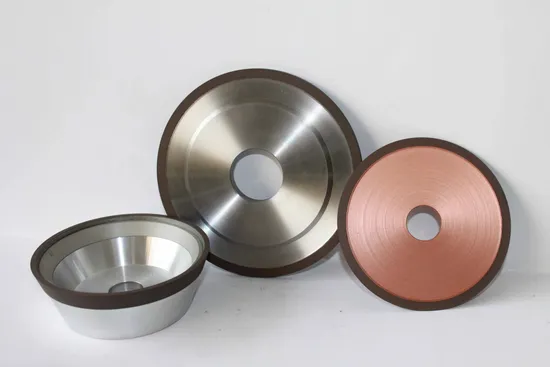

1A1, 1A1r, 2A2, 1ee1, 1FF1, 1V1, 3A1, 4A2, 4b2, 4bt9, 6A2 Grinding Wheels Diamond & CBN Wheels for Round Tools Diamond & CBN Wheels for Saw Blades

Product Description

We make good high quality profile diamond grinding wheels etc super abrasives production.
Face Grind Manual
FACE GRINDING WHEELS FOR MANUAL EQUIPMENT FOLEY, BELL, ACME, AUTOOL, NIELSON etc.
D4A2 6 x 3/8 x 1-1/4 D 180 R 75 B 1/16 W=3/16
B4A2 4 x 3/8 x 1/2 CBN 100 R 50 B 1/16 W=3/16
FACE GRINDING WHEELS FOR MANUAL EQUIPMENT
B12A2 6 x 9/16 x 1-1/4 CBN 100 R 75 B 1/16 W=3/16
D4A2 6 x 1/4 x 1-1/4 D 120 R 100 B 1/16 W=1/4
FACE GRINDING WHEELS FOR MANUAL EQUIPMENT JOCKEY, ARSAW, ANDRUS
D12A2 4-1/2 x 7/8 x 5/8sq D 120 R 50 B 1/4 W=1/2
B11A2 3 x 1/2 x 7/8 CBN 100 R 75 B 1/4 W=1/4
FACE GRINDING WHEELS FOR MANUAL EQUIPMENT
4A2 FOR FACE GRINDING PIRANHA TYPE BLADES
12V2 4V2 FOR FACE GRINDING ON MANUAL EQUIPMENT
Top Grind Manual
TOP GRINDING WHEELS FOR MANUAL EQUIPMENT FOLEY, BELL, ACME, SYSTIMATIC etc.
D12A2 6 x 1 x 1-1/4 D 220 R 75 B 1/8 W=3/16
B11V9 5 x 1-3/4 x 1-1/4 CBN 120 R 100 B 1/8
Side Grind Manual
SIDE GRINDING WHEELS FOR MANUAL EQUIPMENT FOLEY, BELL, IMW etc.
D1A1 4 x 5/32 x 1-1/4 D 120 R 75 B 3/16
B1V1 4 x 1/8 x 1 CBN 120 R 50 B 1/8 V=18°
Face Grind Akemat & UT. MA
FACE GRINDING WHEELS FOR AKEMAT AND UT. MA EQUIPMENT
D4A2 150mm x 3/8 x 32mm D 240 R 125 B 1/16 W=1/8
B12V9 200mm x 1/2 x 32mm CBN 220 R 100 B 1/16 S=20°
FACE GRINDING WHEELS FOR AKEMAT AND UT. MA EQUIPMENT
D4V2 6 x 13/32 x 32mm D 320 R 100 B 3/32 W=1/8
B4V2 200mm x 13mm x 32mm CBN 180 R 100 B 2mm W=4mm
Top Grind Akemat & UT. MA
TOP GRINDING WHEELS FOR AKEMAT AND UT. MA EQUIPMENT
D14B1 125mm x 8mm x 32mm D 180/400 R 100 B 1/4 U=5mm
D3M1 125mm x 8mm x 32mm D 220/600 R 125/100 B 3/8 U=4mm
