Vertical Compound Crusher for Crushing Gypsum Stone

Product Description

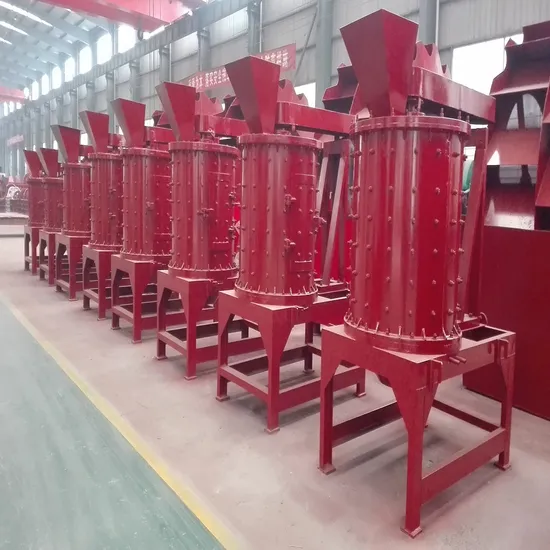

Vertical compound crusher for crushing gypsum stone

I. Vertical Compound Crusher Usage and Application
The machine is fine crushing equipment that crushes materials in middle hardness, such as rocks and mines with pressure strength less than 210MPa and humidity less than 5%. E.g. limestone, dolomite, cement clinker, iron ore, molybdenum ore, aluminum, cobble, rock phosphorite, copper ore, burned magnesite, serpentine, calces, gypsum, lump coal, zeolite, sandstone and so on. It is widely used in the industry of mining, metallurgy, building materials, fireproof materials, cement, coal, glass, chemical industry, electricity power and so on.

II. Vertical Compound Crusher Working Principle
The motor drives the rotor that fixed on the main bearing to run quickly toward certain direction when the machine works. The materials are fallen into the throw-up disc and impacted by the high speed strips of the throw-up disc, and then strikes with the impact board under the effect of Centrifugal Force.
Because the impact board is bevel and the gravitation, the materials are threw to the taper crushing room and impacted by the high-rotating up hammerhead. After gaining sufficient energy, the materials are thrown to the impact board again and action repeats. The materials strike with each other in the crushing room and then are down to the column-shape rotor room. Then crushed, pressed, and ground and action repeats. In this way, the materials go through up, middle, and down rotor crushing rooms and crushed, pressed, and ground by the hammers and the impact boards, and finally the materials are gradually crushed into needed sizes and come out.

III. Vertical Compound Crusher Features
The machine has special structure in the part of throw-up disc, which can improve the usage of abrasive material and reduce the cost. The wearing parts are made of anti-abrasion material (metal alloy in high hardness and toughness), so it can endure for long time. It has the advantage of high crushing ratio, large output, high efficiency, and low consumption. It is of easy operation, good performance, low noise, little vibration and good airproofing, so it is a high efficient and high level fine crushing equipment.
Technical parameters:

Model	Feeding size (mm)	Discharging size (mm)	Production capacity (t/h)	Rotational speed (r/min)	Motor power (kw)	Overall dimension (mm)
PFL-800	<100	<3-5 60-90%	10-20	934	22	2100×1200×1700
PFL-1000	<120	<3-5 60-90%	20-40	769	45	2600×1400×1900
PFL-1250	<150	<3-5 60-90%	40-70	530	75	2800×1600×2100
PFL-1500	<180	<3-5 60-90%	70-100	495	132	3100×1900×2200
PFL-1750	<200	<3-5 60-90%	130-190	424	160	3710×2360×2390
PFL-2000	<220	<3-5 60-90%	100-160	370	185	4100×2660×2620
