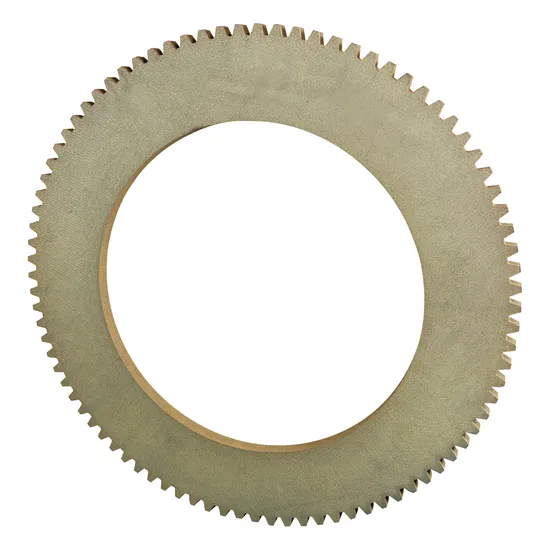

Customised 59 Teeth 63teeth 72 Teeth 87teeth Gear Teeth Facing Used for Industrial Brake/ Clutch System
| US$20.00 | 5 Pieces (MOQ) |
Basic Info.
Model NO.
TL3000
Position
Gear Tooth Ring
Certification
IATF-16949, ISO9001
Classification
Gear Tooth Facing
Drum Brakes Classification
Gear Tooth Facing
Main Market
North America, Eastern Europe, Southeast Asia, Western Europe, Northern Europe, Domestic Market
Application
Industrial mechanical
Teeth
59,63,72,75,87
Size
14" 10" 11" 18"
Brake
Desch Clutch Brake
Industry
Milling mechanical Industrial
Transport Package
Pallet
Specification
as required
Trademark
TALFRI
Origin
China
HS Code
8483900090
Production Capacity
30000PCS Per Year
Packaging & Delivery
Package Size
40.00cm * 40.00cm * 30.00cm
Package Gross Weight
30.000kg
Product Description
| Product Description: | ||
| TL3000 is a Non Asbestos Woven Laminated Sheet with exceedingly high hardness and | ||
| strength. The material is woven from Kevlar, glass fiber and other synthetic fabric yarns containing brass wire. After being impregnated with special resin and pressed into rigid flat sheet, the material shows outstandingly good resistance to wear and compression and excellent stability.TL3000 can be processed into gear teeth facing due to its high hardness and strength. | ||
| Applications: | ||
| TL3000 is a heavy duty material extensively used in oil drilling and wind power industry. It can | ||
| be installed in industrial brake and clutch system,PTO,power transmission system and electric | ||
| magnetic brake engine. | ||
| Dimension: | ||
| Length x Width: 500mm x 500mm (20 inches x 20 inches) | ||
| Thickness:3.2mm-25.4mm ( 1/8inch - 1 inch) | ||
| We have the ability to produce special shape parts by mould or machining. Pls do not hesitate to contact us. | ||
| Frictional Properties: | ||
| Normal | 0.47 | |
| Hot | 0.45 | |
| Static @200°F | 0.47 | |
| Static @400°F | 0.48 | |
| Mechanical properties: | ||
| Tensile Strength | 4300psi | |
| Compression Strength - | 20300psi | |
| Direct Shear Strength | 4700psi | |
| Recommended Operating Range: | ||
| Max. Pressure, psi | 300 | |
| Max. Rubbing Speed, ft/min | 5000 | |
| Max. Intermittent Temperature | 600°F (315°C) | |
| Max. Continuous Temperature | 550°F (287°C) | |
