Factory Price 15.6 17.3 Inch TFT LCD 1920*1080 (16: 9) HDMI VGA DVI LED Interactive Outdoor Industrial Monitor Price
Basic Info.
Connectivity
Ethernet, HDMI, USB, VGA, Wi-Fi
Protection Rating
IP65
Resolution
1024x768
Touch Technology
Capacitive Touch
Screen Ratio
4:3
Viewing Angle
80/80/80/80 (L/R/U/D)
Brightness1
400 CD/M2
Color
Black
Touch Screen
Non-Touch/Capacitive/Resistive Touch Screen
Interface Type
VGA,HDMI,Dp,RJ45-Touch,1*Audio I/O, Support Audio
Power Input
DC 12V~36V
Key Function
Auto/Menu/Power/Left/Right
Working Temperature
-10°c~60°c
Storage Temperature
-20°c~70°c
Relative Humidity
Humidity: 95% Non-Condensing
Waterproof Grade
The Front Panel Reaches IP65 Protection Level
Video Input
PC-RGB:Format up to 1920*1080@60Hz Color 16bit/24b
Origin
Shenzhen
HS Code
8471414000
Production Capacity
20000 Set/Sets Per Month
Product Description

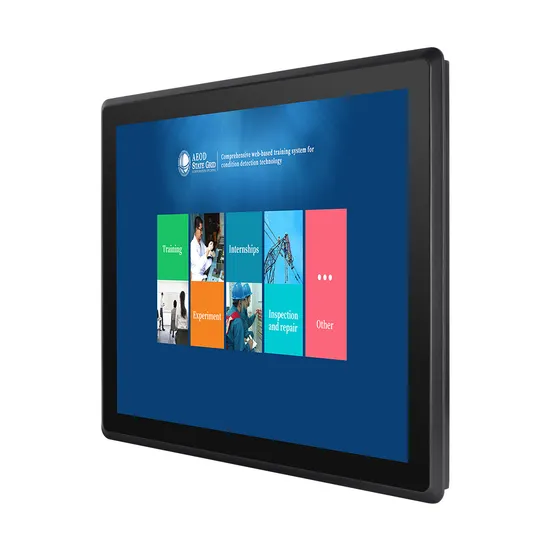

Universal surface frame, aluminum alloy structure, fanless fully enclosed design. It can meet the needs of different products in different environments and installation methods. It is an industrial product specially designed for a variety of environments. It is widely used in high-end automation fields such as industrial control, communications, electric power, and network.Features Independent mold opening, Designed for the channel. Independent research and development of display driver board. Complying with EMC anti-electromagnetic interference standard. Industry grade protection, Adapting multiple terrible environment. Support 12-36V wide voltage power supply Support automatic recognition input of VGA, DVI and HDMI signals
| Product Specifications | |
| Screen Parameters | |
| LCD size | 10.4" TFT LCD |
| Resolution | 1024*768 (4:3) |
| Viewing angle | 80/80/80/80 (L/R/U/D) |
| Color | 16.7M |
| Brightness | 400 cd/m2 |
| Contrast ratio | 1000:1 |
| Physical Characteristics | |
| Overall dimensions | W277.9x H255.3x D66.3mm |
| Size of opening | W265.7 x H213.1mm |
| Interface Parameters | |
| Grounding column | Support (1*GND) |
| Power interface1 | 1*Industrial terminal, Support 12V-36V wide voltage power supply |
| Power interface2 | 1*DC 5.5* 2.1mm Support 12V-36V wide voltage power supply |
| HDMI | 1*HDMI, support HDMI data input, maximum support 1080P |
| Touch interface | 1*TOUCH(RJ45) |
| VGA | 1*VGA, Analog signal transmission |
| DP | 1*DP |
| Audio interface | 1*Audio I/O, Support audio input and output |
| Product Reliability Parameters | |
| Working temperature | -10°C~60°C |
| Storage temperature | -20°C~70°C |
| Relative humidity | Humidity: 95% Non-Condensing |
| Vibration protection | IEC 60068-2-64, Random, 5 ~ 500 Hz, 1 hr/axis |
| Impact protection | IEC 60068-2-27, Half sine wave, Lasting for 11ms |
| Waterproof grade | The front panel reaches IP65 protection level |
| Power Parameters | |
| Power input | DC 12V~36V |
| Static power | 18W |
