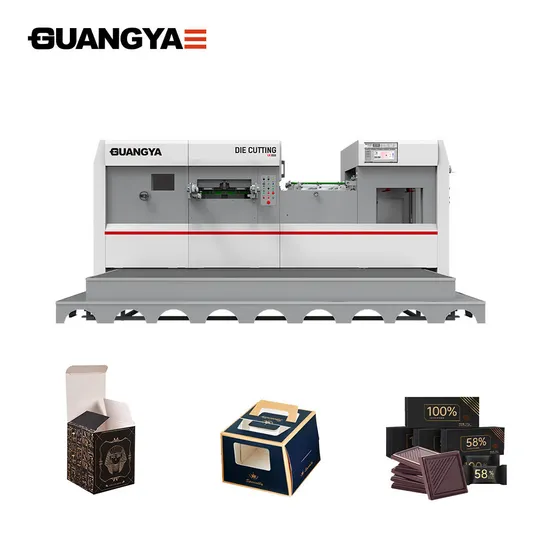

High Speed Automatic Die Cutting Machine for Smaller Size Paper (800*620mm)

Product Description

TECHNICAL PARAMETER

Model	LK800
Max.paper size	800×620mm
Min.paper size	360×290mm
Max.cutting size	790×610mm
Inner chase size	880*628mm
Max working speed	9000s/h
Cutting precision	±0.1mm
Pressure	200T
Paper range	90-2000g
Machine weight	12.5T
Max.feeding pile height	1280mm
Max.delivery pile height	1070mm
Main motor power (	7.5kw
Total machine power	14kw
Air requirements	0.6Mpa, >0.37m3/min
Overall dimension	4545×3685×2245mm

MAIN FEATURES
Non-stop Feeder
• Non-stop High-Speed Feeder
• Feeder anti-collision protection
• Pile tray side guide can be adjust electrically
• Pre-stacking paper function, non-stop paper feeding function
Feed Table
• Imported belts
• The belt is automatically tightened, no need to adjust
• Electrical front lays
• Push-pull integrated side guides
• Imported Antistatic pattern stainless steel
Host Station
• Electrically pressure adjustment function
• Automatic pressure keeping and pressure reduction function (only foil stamping)
• Imported intermittent mechanism and synchronous belt drive to ensure running accuracy (only stripping)
Frame and Bottom Plate
• One button locking device for chase
• Integrated bottom plate, change job fast
• Steel plate imported from Germany
• Quick-lock cutting board frame with center positioning
Delivery
• Auxiliary delivery function
• Mechanical braking brush
• Pneumatic non-stop sampling function
• Tape inseter (optioinal)
• Safety light curtain (optioinal)
Control System
Operating System
• 18.5-inch industrial control large-size true color touch capacitive screen (only die cutting and stripping)
• Easy operation and visualized functions
• Automatic screen off function, environmental protection and energy saving
• Production operation monitoring, data statistics function.
Electrical System
• Modular design of electrical system
• All imported electrical appliances, quality assurance
• Remote module, fast and convenient maintenance
• Large-capacity air circulation filter system for electrical cabinets
• Air conditioner for electric cabinet (optional)

*FOR MORE DETAILS, PLEASE ASK YOUR SALES CONSULTANT
