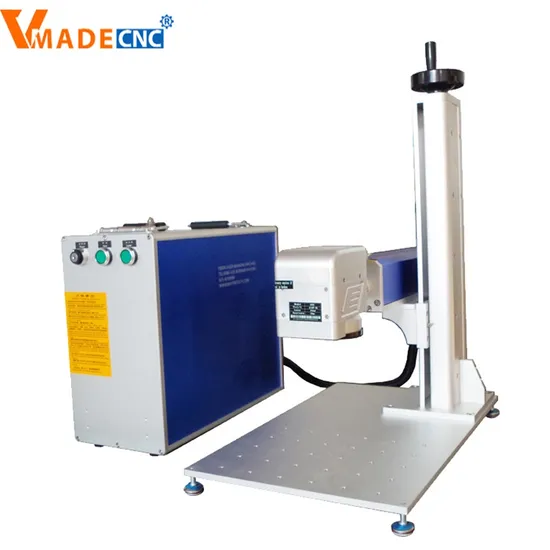

20W 30W Portable Fiber Laser Marking Machine
| US$1,500.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
VLM
Cooling System
Air Cooling
Technical Class
Pulse Laser
Laser Wavelength
Fiber Laser
Laser Classification
Semiconductor Laser
Type
Optical Fiber Laser Marking Machine
Marking Method
Scanning Marking
Wave Length
1064nm
Power
20W 30W 50W 100W
Marking Size
100*100mm 2000*200mm 300*300mm
Support Format
Plt, BMP ,JPG,PNG,Tip,Pcx,Ico,Dxf
Mini Linw Width
50um
Working Accuracy
0.001mm
Control Software
Ez CAD
Laser Source Brand
Raycus Ipg Jpt
Marking Head Brand
Sino-Galvo Galvenometer
Warranty
3 Years, 3 Years
Marking Speed
7000mm/S
Marking Depth
0.01-5mm
Transport Package
Wooden Box
Specification
fiber laser
Trademark
VMADE
Origin
Shangdong China
HS Code
9456110090
Production Capacity
1000 Pieces /Month
Product Description
Product descriptionlaser marking machine offers excellent laser beam quality with the latest technology. Our pulsed fiber system delivers superior performance and reliability.
Providing an industrial solution for product identification and traceability, our 20w laser marking machine allow manufacturers to mark serial numbers, bar codes, 2D Data Matrix and graphics on the widest variety of materials, including metals,plastics and ceramics
| A | B | C | D | |
| Type | Portable | Desktop | Colorful | Floor Stand |
| PC includes or not | Not includes PC | includes PC | ||
| Laser Source | ||||
| IPG Series: | Pulsed, High Energy Ytterbium Fiber Lasers | |||
| Mode of operation | Pulsed | |||
| Polarization: | random | |||
| Nominal average output power | 20W-50W | |||
| Central emission wavelength: | 1060-1070 nm ,Q-switched operation Output power adjustment range 10%-100% | |||
| Emission Bandwidth (FWHM) | <10 nm | |||
| Long-term average power instability | <5% | |||
| Pulse width, (FWHM) | 100 ns | |||
| Laser switching ON time | 180 μsec | |||
| Laser switching OFF time | 180 μsec | |||
| Pulse Repetition Rate* kHz | 20-80 kHz | |||
| Energy per pulse (PRR = 20 kHz) | 0.95 mJ | |||
| Typical beam quality, M2 | <1.8 | |||
| Output fiber delivery length | 3m | |||
| Operating voltage | 110V/220V | |||
| Max. Power consumption | 600W | |||
| Net Dimensions | 70*20*50cm | 58*22*50cm 80*38*72cm | 70*20*50cm | 143*62*101cm |
| Net Weight | 44 kgs | 53 kgs | 44 kgs | 130 kgs |
| Gross Weight | 60 kgs | 70 kgs | 60 kgs | 150 kgs |
| Laser System | ||||
| Scanning Speed | 0-7000mm/s | |||
| Marking Speed | 0-5000mm/s | |||
| Marking Size | 110mm×110mm (Customized) | |||
| Spot Size | ≤ 40 micron (F-theta 160) | |||
| Cooling unit | Air cooled | |||
| Pilot laser | 650nm diode laser, visible red light for marking guide | |||
| Continuous working time | ≥16h | |||
| Humidity | 45~85% (no condensation) | |||
| Operating temperature | 0~40°C | |||
| Control units | CT-MARK (English Version) | |||
| Remark: 1>VLM A / B / C type, it is very compact type, industry PC, Mouse and Monitor are not included in the quotation. Customer can use your own computer or laptop to control it. 2>VLM D Floor type's quotation includes industrial PC / Mouse / Monitor. | ||||
Sample & Application
Laser marking machine are used to mark logo, numbers, code, characters, letters and graphs on different kinds materials, such as stainless steel, aluminum, plastic, wood, silber, gold and so on. As fiber laser beam is very thin and powerful, the machine can do non-contact high accuracy marking which will not destroy the surface of objects.
This fiber laser marking machine is widely applided in electronics, apparatus and meters, instrument, hardware tools, automobile, machanical parts, daily necessities, jewelry rings, food packages etc.
Machine Details
OUR FACTORY
If you are interested in ,please contact me
