Nano Tech Silica Aerogel Insulation Panel

Product Description

Product description

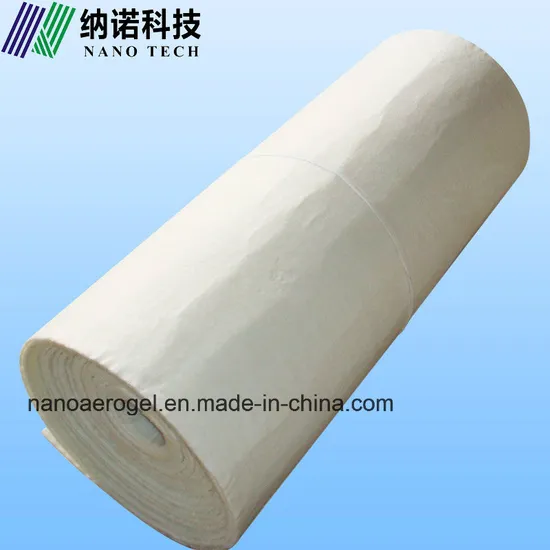

Aerogel Insulation Blanket
Thermal Conductivity(25ºC)	0.020w/(m*k)
Working temperature	-50ºC to 100ºC
Hydrophobic Rate	≥99.5%
Fire ratiing	Class A
Tensile Strength	1000KPa
Compressive strength(@25%)	≥120KPa
Density	200kg/m³
Width	1.5m
Length	30m
Thickness	10mm
Service life	>20years

Application overview
Oil Exploration Refinery and Petrochemical Industry Power Generation and City Heating System LNG project Exterior Wall Thermal Insulation for Roof and Floor Train, Vessel and Automobile New Energy Battery
Packing and Shipment
About Aerogel

Aerogel is a synthetic porous ultralight material derived from a gel, in which the liquid component of the gel has been replaced with gas. The result is a solid with extermely low density and low thermal conductivity.
Despite the name, aerogel is solid, rigid, and dry material that do not resemble a gel in their physical properities: the name comes from the fact that they are made from gels and the air content can reach 99.8%.

Company Profile
Nano Tech CO., Ltd. is a global professional supplier of new insuliation material solutions who has been committed to the research and development ,production and sales of silica aerogel. The factory not only owns 32,000 square meters and all kinds of auxiliary facilities, but for highly-automatic sets of aerogel production lines with independent intellectual property as well. It is earliest, biggest and most reliable developer and manufacturer of nanoporous thermal insulation material "silica aerogel" in China.

Our service
Heat loss inspection Insulation calculation Solution Submission Test and Verification After-sale service
Contact
Any interests, pls contact me directly, thanks.
