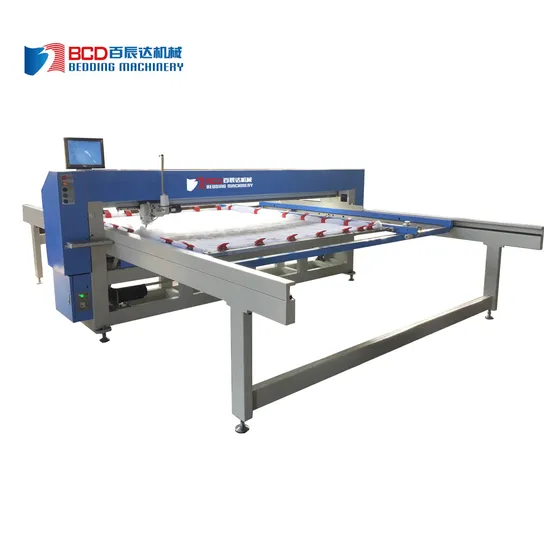

Computerized High Speed Single Needle Quilted Machine
| US$7,500.00-9,900.00 | 1 SET (MOQ) |
Basic Info.
Model NO.
BDZH
Number of Head
1
Voltage
380V
Type
Quilting Machine
Knitting Method
Single
Computerized
Computerized
Max. Quilt Size
2.6*2.8m
Max. Quilting Size
2.4*2.6m
The Work Speed
1000~ 2500rpm
Max. Sewing Thickness
1200G/M2
Stitching Length
2-7mm
Transport Package
Crate/Plastic Film
Specification
CE\SGS
Trademark
BCD bedding machinery
Origin
Nanjing, China
HS Code
84522110
Production Capacity
30sets/Month
Product Description
Long Arm Single Head Needle Computerized Quilting MachineThis machine is mainly used for quilt making .Its characteristics as: all servo transmission structure on the head, maximum speed at 2600RPM, WONDOWS operation system. Display of working speed, reasons for stop, stitch, coordinates and design file directory, etc. Edit embroidery design, edit design online. The machine has the function of thread break detection with high sensitivity. Automatic adjust design size and the position of sewing bed. X/Y use servo motors to start with the high precision and flexible credible characteristics. The machine-head is controlled by double servomotors; the running noisy of machine is low.
| Work speed: | 500~2600rpm(adjustalbe) |
| Stitch length | 1~6mm |
| Max. thickness | 40mm s(no compress) |
| Max sewing area: | 2200X2540mm(standard) |
| Adjustable frame size: | (1500~2400)X(2000~2740mm)(standard) |
| Machine external size | 6800X4300X1950mm(standard) |
