Factory Price Vmc850 Vmc Machine Price 4-Axis CNC Milling Machine CNC Vertical Machining Center

Product Description

Vmc850 Vmc Machine Price 4-Axis CNC Milling Machine CNC Vertical Machining Center
Product Description
1. Adopting the world advanced numerical control system, the M60S series are servo-driven, ensuring the stability of the control system is high, the speed is fast, and the surface is smooth.
The advantages of high precision, the ability to make moulds, is the best choice for mold production.
2. All M60S series controllers are marked with RISC64 bit CPU.
3. Coordinate display value conversion can be freely switched (program value display or manual insertion quantity display switching)
4. Standard internal carrier profile function, working position coordinates and central point measurement functions.
5. Buffer correction function extension: can correspond to IC card/computer link B/DNC/MDI mode.
6. Edit the edit mode in the edit screen, and switch to edit or edit the whole page.
7. Graphical display function improvement: can contain the prop path information to fully display the work coordinates and the actual location of the props compensation
Product Parameters

Specifications	Units	VMC850
Table size	mm	1000x500
X axis travel	mm	800
Y axis travel	mm	500
Z axis travel	mm	500
Max. worktable load	kg	500
T slot(number-width-pitch)		3-18*130
Max. spindle speed	rpm	8000(Optional:10000/12000 )
Spindle taper	mm	BT40
Main motor power	kw	7.5/11
X/Y/Z rapid traverse speed	m/min	24/24/20
Cutting feed speed	mm/min	1-8000
Guide rail type		Linear rail
Distance from spindle axis to column surface	mm	590
Distance between spindle nose and worktable surface	mm	140-640
Positioning accuracy	mm	±0.008
Repeat positioning accuracy	mm	±0.005
Tool magazine		Arm 24 (disc type)
Max. tool diameter	mm	φ78 (Adjacent)/ φ120(Apart)
Max.tool weight	kg	8
Machine weight	kg	5600
Overall dimension	mm	2600X2300X2800

Standard Accessories:.
Armless type tool magazine
Automatic lubrication system
Cooling system
Heat Exchanger
Pneumatic system Spindle center coolant
Full Cover machine enclosure Higher speed of Spindle
Air system/ Air gun Air conditioner
Optional Accessories
System:FANUC,Siemens,GS etc Arm type ATC
4axis or 5axis
Automatic chip conveyor

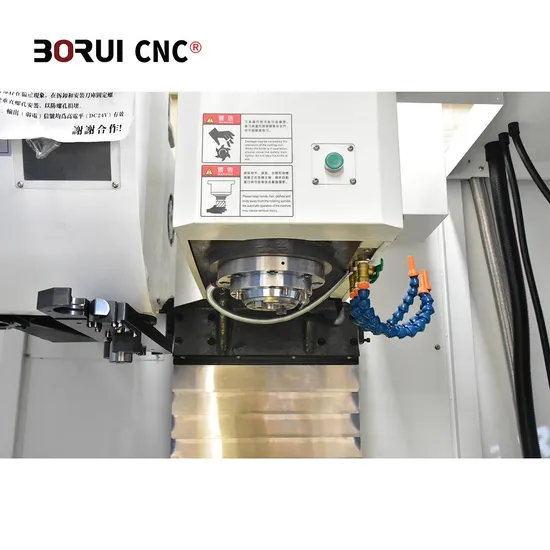

Detailed Photos

Company Profile
FAQ
1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.
2)Q: How can I get quotation from you?
A: You can make the inquiry online, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.
3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.
4)Q: How can I make the payment?
A: We can make the deal online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.
5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.
6)Q: How about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
