Xkp Series Rubber Powder Crusher Rubber Crumb Making Machine

Product Description

XKP Series rubber powder crusher rubber crumb making machine
Product Descriptionrubber powder crusher is suitable for different kinds of scrap tires, and we can provide you the best solution based on your different tires
Detailed Photos1. rubber powder crusher Tyre Circular Cutter
Tyre Circular Cutter
Cut Tire Bead From The Whole Tire
Model: HKR-1000
Power: 3Kw
Capacity: 30-40 Tires/Hour
Weight: 300Kg
Overall Dimensions: 1650×1050×1500mm
Operation:Put tiPut tire on the round platform, rotate the wheel to make the four claws catch inside of tire and fix steady, start the cutter machine, the platform rotates, handle the cutting knife control stick, the knife cut into tire, adjust the cutting depth until the tire sidewall cut off.
Features:Reasonable design, stable performance, high quality, ease operation, long service life, low noise, no pollution,an ideal equipment for tire recycling.
2.rubber powder crusher Tyre Strip Cutter
Tyre Strip Cutter
Cut The Whole Tire Into Strips Except Tire Bead
Model: HKS-1000
Power: 5.5Kw
Capacity: 1 T/Hour
Weight: 700Kg
Overall Dimensions: 1300×800×1500mm
Adjustment Of Rubber Strip Width:There is a guiding rule in the middle of the two blades and the rubber strip width is up to the distance between the guiding rule and blade. The distance means the rubber strip width. The guiding rule can be adjusted by the left and right movement of the two screw rods.
rubber powder crusher Blade Maintenance:
When the blade is not sharp, sharpen the blades with angle grinder. When sharpening the blades, the grinding wheel shall not focus on one position for a long time. When changing the blades, remove the lower blade first and then remove the upper blade; when installing the blades, fix the upper blade first and then fix the lower blade.
rubber powder crusher Maintenance:
1, Check the motor if the default phase happens or if the short circuit happens, and check if the change -over switch works normally;
2, Check the gearbox and big gears if they are short of oil;
3, The two blades are connected by two main shafts and each main shaft is supported and fixed by two sets ofbearings. Check the bearing if the lubricating oil is short.
3. rubber powder crusher Tire Block Cutter
Tire Block Cutter
Cut Tire Stirp Into 3--8cm Blocks
Model: HKB-1000
Power: 15Kw
Capacity: 1 T/Hour
Weight: 650Kg
Overall Dimensions: 1080×850×1250mm
Operation:The rubber block cutter is used to cut rubber strips into 3--5cm blocks for grinding into rubber powder or rubber granule in the next step.
Application:Start the power, put tire strips into the feeder, and then strips will be cutted into 3-5cm rubber blocks4. rubber powder crusher Steel Wire Extruder
Steel Wire Extruder
Separate The Steel Wire From The Tire Bead
Model: HKW-1000
Power: 18.5Kw
Capacity: 1 T/Hour
Weight: 1400Kg
Overall Dimensions: 1600×1420×1200mm
Operation:Start the power, put tire bead into the rollers of the steel wire extruder and then start the button to make the tire bead enter the rollers. After separating the rubber and steel wire, start the button to make the tire bead get out of the rollers, and then take out the tire bead from the rollers, so you get a complete steel wire ring.
Application:This steel wire extruder is mainly used to separate the rubber and steel wire from the tire bead of all kinds of tires and you can get a complete steel wire ring.

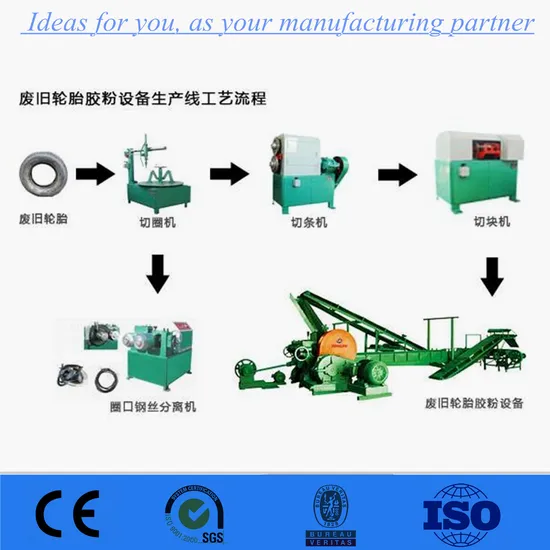

Features:Easy operation and maintenance, high separation efficiency.rubber powder crusher WORKING PROCESS
1. Tire circular cutter cuts tire bead from the whole tire;
2. Tire strip cutter cuts whole tires into strips except tire bead;
3. Tire block cutter cuts tire strips into 3-8 rubber blocks;
4. Steel wire extruder separates steel wire and rubber out from tire bead.
5.Rubber crusher production line

Model No.	XKP-350	XKP-400	XKP-450	XKP-560	XKP-560D
Diameter of front roll	300 mm (groove)	400 mm (groove)	450 mm (groove)	560 mm (groove)	560 mm (groove)
Diameter of back roll	300 mm (groove)	400 mm (groove)	450 mm (groove)	510 mm (groove)	560 mm (groove)
Drum working length	500mm	600mm	760mm	800mm	1000mm
Front roll liner speed	26.2m/min	34.5 m/min	38.0 m/min	40.6m/min	44m/min
Roll ratio	1:2.5	1:2.5	1:2.5	1:2.5	1:2.5
Max roller spacing	10mm	10 mm	10 mm	10 mm	10mm
Motor power	30KW/37KW	45KW/55KW	75KW /90KW	90KW/110KW	132KW/160KW
Weight	6T	8.5 T	11T	17.5T	21T
L*W*H	3.5*1.6*1.5m	4.3*1.8*1.6m	4.6*2.0*1.65m	5.3*2.0*1.7m	5.6*2.0*1.7m
