Good Quality Hot Press Machine with CE ISO for Woodworking Line Use

Product Description

Product Description

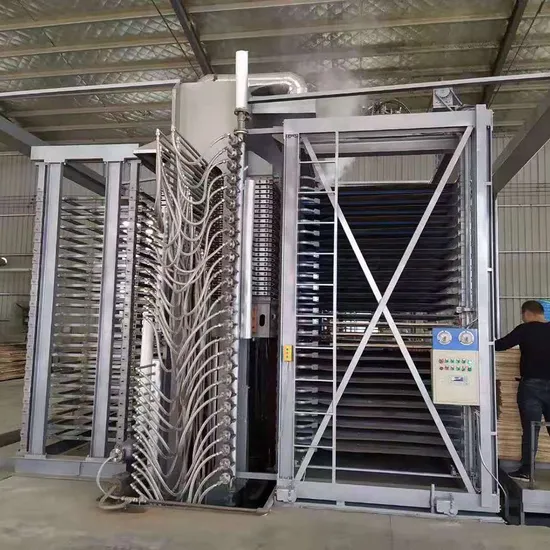

Hot Press Machine
The Plywood Hot Press Machine is a robust and efficient industrial equipment used for manufacturing high-quality plywood. It is designed to apply heat and pressure on stacked wood veneers, thus fusing them into a strong and durable panel that can be used in various applications such as furniture, construction, and packaging.

GTHP-800T-30L
Product name	Hot Press Machine
Nominal pressure	8000KN
Platen size	2700*1370*42mm
Feeding mode	Double in and out
Product size (mm)	4*8: 1220*2440mm 1pcs
Max opening space	70mm
Number of layers	30 Layers
Diameter and number of cylinder (mm)	φ320*2250mm*4pcs (Main)
Working stoke (mm)	2100mm
Working pressure (kg/cm2)	21kg/cm2
Closing speed (m/min)	15m/min
Overall size (mm)	3590*1370*6650mm
Tank volume	7m3
Total weight of hydraulic station	5800kg
Total power (kw)	51.8kw
Total weight	75T

GTHP-800T-30L-ZBJ
Product dimensions(mm)	1220X2440mm 1pcs
Max.opening space	70mm
Number of layers	30 layers
Working stroke(mm)	3400mm
Lifting speed	15m/min
Overall dimensions(mm)	4220*2020*9000mm
Driving of feeding	Double hydraulic motor
Total weight(T)	9.8T
GTHP-800T-30L-XBJ
Product dimensions(mm)	1220X2440mm 1pcs
Number of layers	30 layers
Working stroke(mm)	3850mm
Lifting speed	15m/min
Overall dimensions(mm)	4220* 1015* 10020mm
Total weight(T)	7.4T

Benefits:
• High-quality plywood sheets with consistent properties and strength.
• Efficient and reliable production process, with reduced labor costs and material waste.
• Versatile and customizable machine that can meet diverse production needs.
• Energy-efficient and environmentally friendly manufacturing process.
Other Sizes You Can Choose:

Type	Size(ft)	Nominal Pressure(KN)	The Finished Board Size(mm)	Working Pressure(kg/cm2)	Main oil cylinder (Diameter×Quantity)
GTH-900T	4×8	9000	1220×2440	≤30	Φ280×6
GTH-1200T	4×8	12000	1220×2440	≤40	Φ320×6
GTH-1400T	4×8	14000	1220×2440	≤47	Φ340×6
	5×8		1550×2440	≤37	Φ340×6
	6×8		1830×2440	≤31	Φ340×6
GTH-1600T	4×8	16000	1200×2440	≤53	Φ380×6
	4×9		1200×2750	≤47	Φ380×6
	5×8		1500×2440	≤42	Φ380×6
	7×9		2100×2750	≤27	Φ380×6
We can also design hot press machine according to your requirements. So far, our company has successfully made 6*12ft size 2800Ton lamination hot press machine

Detailed Photos

Company Profile
About us
Since the date of our establishes 2006, GTCO devotes ourself to delivering the highest quality and best value to our customers. This philosophy has helped us grow fast, distributing a wide range of quality China Plywood and Plywood Machinery and solutions to worldwide. Such as U.S.A, France, Spain, Italy, Sweden, Estonia, Russia, Croatia, Bosnia, Serbia, Pakistan, India, Sri-lanka, Syria, Sudan, Kuwait, Singapore, Philippine, Korea, South Africa, Nigeria, Gambia, Senegal, Ghana, Bukina Faso, Burundi, Morocco, Mexico, Panama, Costa Rica, Nicaragua, Dominica Rep, Jamaica, Paraguay, Uruguay, Suriname, Belize, Venezuela, Chile, Bolivia, Peru, Brazil etc.
Other Products


Our Advantages
Our Services

Pre-sale service
1) Listen to customer needs
2) Provide free preliminary machine design plan and flow chart,choose and supply the most reasonable configuration equipment;
3) Support remote meetings and visit factory remotely;
4)Offer the professional advice to customer to confirm the final selection
5) Support site visits to factory;
In-sale service
1) All equipment is qualified for installation and commissioning before leaving the factory; supports remote video quality inspection;
2) The disassembly and packaging process of all machines before leaving the factory, providing photos, videos, and annotations;
3) Online or offline free training of buyers' operators (China)
4) Assist buyers to install and debug equipment (overseas)
After-sales service
1) 7*24 hours online service; remote real-time video resolution;
2) During the first installation and commissioning process, problems encountered during normal operation should be solved in time;
3) Periodic process inspection and use effect, and timely suggestions for machine maintenance;
4) Lifetime free technical guidance
5) Update the latest industry information in a timely manner.

Factory Display

FAQ
Q1: What can you buy from us?
A1:
Plywood press machine,plywood making machine, veneer production machine, hot press machine, peeling lathe
Q2: What services can we provide?
A2:
Accepted Delivery Terms: FOB,CFR,CIF;
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English, Chinese, Spanish, Russian
Q3: What is your advantage?

A3:
We have good experience in market, Same cost, we do better quality because we have strict production processing control. We have independent inspection department for checking quality.
Q4: How about your quality?
A4:
As a rich-experience manufacturer, the quality of our machine can be guaranteed, and we have provided our products for thousands of clients over the whole world.
Q5: How do we import from you?
A5:
We have the ability to provide you with the one-stop solution. You can contact us, and then we will offer you a satisfying cooperation.
