Oteco Demco Fmc Spm Mud Gate Valve 2" 3 1/16" V324 V350

Product Description

Oteco Demco Fmc Spm Type 72 Replacement Mud Gate Valve 2" 3 1/16" V324 V336 V350 Spec 6A
Oteco Memco FMC SPM Type 72 Replacement Mud Gate Valve 2" 3" V324 V336 V350 Spec 6A
API standard spec 6A Gate valve
Product Description Oteco Demco Fmc Spm Type 72 Replacement Mud Gate Valve 2" 3 1/16" V324 V336 V350 Spec 6A
Oteco Demco FMC SPM Type 72 Replacement Mud Gate Valve 2" 3" V324 V336 V350 Spec 6A
Resilient-seated gate valves according to European standard EN 1171 with straight, smooth and non-constricted passage. Internally enamel, externally EKB. For water, air and non-aggressive gases
Oteco Demco FMC SPM Type 72 Replacement Mud Gate Valve 2" 3" V324 V336 V350 Spec 6A
Specification Details Design Std:EN 1171
Size:DN40--DN1000
Pressure Rating: PN16,PN10
Seat: NBR,EPDM, VITON,PTFE,NEOPRENE
Face to Face: EN 558 Series 14(DIN 3202 F4)
Pressure Testing:DIN EN593/DIN EN12266-1
Body/Bonnet: Ductile iron EN-GJS-500-7/EN 1563
Flange Ends: DIN EN1092-2/Type B
Working temperature:-10 to +120ºC
Oteco Demco FMC SPM Type 72 Replacement Mud Gate Valve 2" 3" V324 V336 V350 Spec 6A

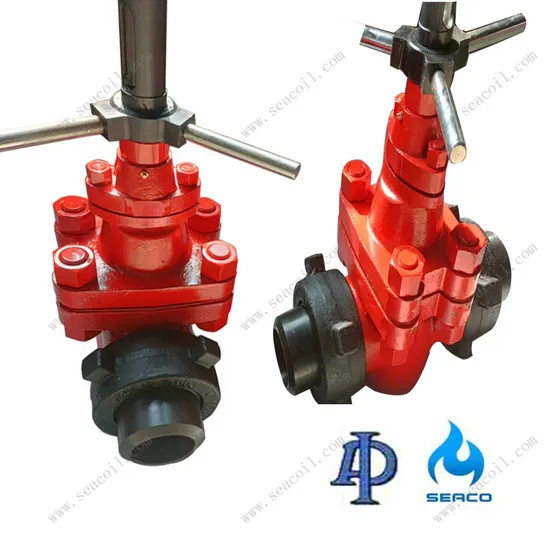

Detailed Photos Oteco Demco FMC SPM Type 72 Replacement Mud Gate Valve 2" 3" V324 V336 V350 Spec 6A

Mud Gate Valve is equivalent to OTECO model 72 series, easy operation, tight shut offs, long service life before overhaul. This assures simple, fast, low cost renewal in the field.

Specifications:
Size: 2", 3", 4", 4" x 5" Working Pressure: 2000psi, 3000psi, 5000psi Working Temperature: -46°C ~ +240°C Connections: LP Threaded, Butt-weld, Flanged, Union Available Working Medium: Sour Gas, Water Flood Valve body protected by oil and abrasion resistant long life rubber seals Full rising, one piece forged gate & stem, shows at a glance if valve is open, partly open or closed. Application:
Mud pump line, standpipe manifolds, oil and gas pipelines, abrasive drilling mud system, corrosive water flood lines, cementing services, wellheads, and well treating chemicals

Standard Assembly:
Weld end-2" M11200-101, M11200-102, M11200-111, M11200-112.
Weld end-3" M11300-101, M11300-102, M11300-111, M11300-112.
Weld end-4" M11400-101, M11400-102, M11400-111, M11400-112.
Screwed end- 2" M122000-201, M122000-202, M122000-211, M122000-212.
Screwed end- 3" M123000-201, M123000-202, M123000-211, M123000-212.
Screwed end- 4" M124000-201, M124000-202, M124000-211, M124000-212.
Flange end-2" M132000-301, M132000-302, M132000-311, M132000-312.
Flange end-3" M133000-301, M133000-302, M133000-311, M133000-312.
Flange end-4" M134000-301, M134000-302, M134000-311, M134000-312.
2" 2000PSI V-224 V-224-F
2" 3000PSI V-236 V-236-F
2" 5000PSI V-250 V-250-F
3" 2000PSI V-324 V-324-F
3" 3000PSI V-336 V-336-F
3" 5000PSI V-350 V-350-F
4" 2000PSI V-424 V-424-F
4" 3000PSI V-436 V-436-F
4" 5000PSI V-450 V-450-F

NO	DESCRIPTION	MATERIAL	2000/3000/5000 WP
			2"	3"	4"
1	HANDWHEEL	/	M120132	M120142	M120143
2	STEM NUT	/	M120232	M120242	M120243
3	GATE	4130 Nickel Plated 316SS	M120323	M120333	M120343
4	SPLIT BONNET ASSEMBLY	Incl. item5, 6 &17	M120432	M120442	M120443
5	BONNET BOLT	2 req'd	M120532	M120542	M120543
6	BONNET NUT	2 req'd	M120623	M120623	M120643
7	STEM PACKING	BUNA-N VITON	M120732-1 M120732-2	M120742-1 M120742-2	M120743-1 M120743-2
8	STEM PACKING RING	1020 Cadmium Plated 316SS	M120832	M120842	M120843
9	VALVE BODY	Standard/Sour Gas	M120925	M120935	M120945
10	GATE PACKING	BUNA-N VITON	M121023-1 M121023-2	M121033-1 M121033-2	M121043-1 M121043-2
11	WEAR PLATE	1026 Carburized/316SS	M121123	M121133	M121143
12	O RING	BUNA-N VITON	M121223-1 M121223-2	M121233-1 M121233-2	M121243-1 M121243-2
13	BODY SUB	WELD SCH.XXH WELD SCH.160 SCREW LP SCREW NUE FLANGED RAISED FACE FLANGED RTJ	M121323-10 M121323-11 M121323-20 M121323-21 M121323-30 M121323-31	M121333-10 M121333-11 M121333-20 M121333-21 M121333-30 M121333-31	M121343-10 M121343-11 M121343-20 M121343-21 M121343-30 M121343-31
14	BODY CAP	Standard/Sour Gas	M121425	M121435	M121445
15	BODY STUD	4 req'd	M121525	M121535	M121545
16	BODY STUD NUT	4 req'd	M121625	M121635	M121645
17	GREASE FITTING	Steel, 1/8"PTF	-	-	-
18	GREASE FITTING	Steel, 1/8"PTF	-	-	-
Major repair kits includes Gate Packing, Wear Plate, O-ring, Gate, Stem Packing Minor repair kits includes Gate Packing, Wear Plate, O-ring
