Printing Grating Couplet Packaging Box Clothing Printing Effect High-Precision 3200UV Small Printer

Product Description

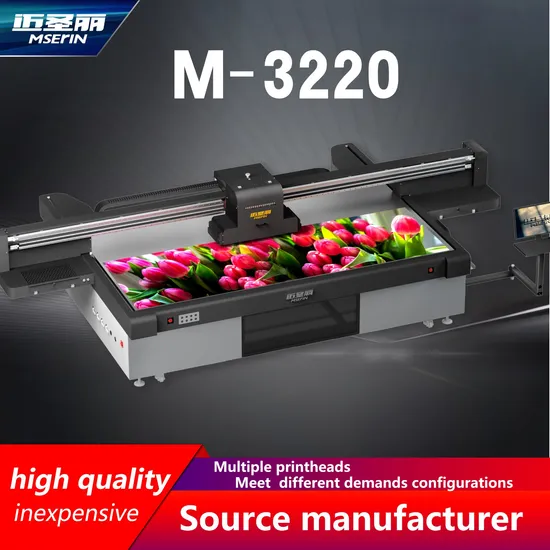

MSERIN 3220 is a true industrial UV flatbed printer that's versatile and capable of printing both flat substrates and round materials directly. With VDT(variable dots technology), it covers a drop volume from 3-12pl, making it possible to print sophisticated image with great color gradiant. MSERIN 3220 UV printer also boasts negative pressure system for both white and color ink, allowing for simple and worry-free maintenance.

Model	M-3220 UV flatbed printer
Appearance	Black grey or Medium grey
Ink	UV Ink:CMYK,LC,LM,White,varnish
Printing Speed	720*600dpi(4PASS)	26sq.m./h
	720*900dpi(6PASS)	20sq.m./h
	720*1200dpi(8PASS)	15sq.m./h
Print Size	3260mm*2060mm
Print Thickness	0.1mm-175mm(or customized)
Curing System	UV LED Lamp
Image Format	TIFF/JPG/EPS/PDF/BMP
RPI Sofeware	FlexiPRINT
Material Type	All kind of advertising materials,decoration related series materials,metal plate,glass,ceramics,wood board,textile,plastic,mobile phone case,acrylic,etc
Power Supply	AC220v 50HZ±10%
Temperature	20-35ºC/68-95°F
Humidity	40-75%
Power	3500/5500w
Equipment Size	L/W/H:4470mm*2107mm*1383mm
Package Size	L/W/H:4621mm*2260mm*1620mm
Data Transmission	TCP/IP network interface
Net Weight	1000kg/1350kg
