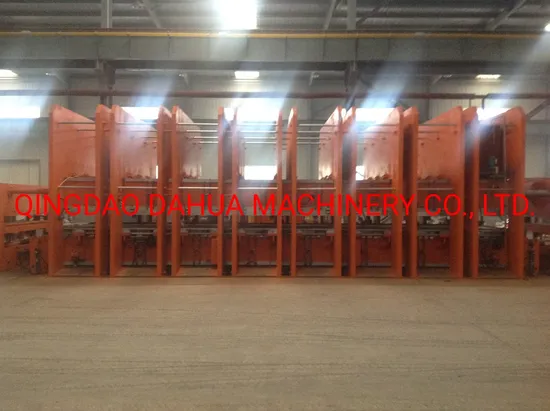

New Design Rubber Conveyor Belt Vulcanizing Press Machine

Product Description

Rubber Conveyor Belt Making Machine/Fram Flat Vulcanizer
Main Techincal Parameter:

parameters		1400x5700x2	1400x10000x1	1600X10000x2	1800x8000x2	1800x12000x2	2000x10000x1
Platen size mm		1400x5700	1400x10000	1600X10000	1800x8000	1800x12000	2000x10000
Total pressure MN		25.00	49.00	56.00	51.00	74.00	80.00
Pressure unit of plate Mpa		3.13	3.5	3.5	3.54	3.4	3.5
Ram diameter MM		360	450	450	600	500	600
Quantity of ram MM		10	20	18	12	18	16
Max.ran stroke MM		400	300	400	600	400	300
Clamping force MM		0.72	0.90	1.20	1.20	1.20	1.20
Tensioning force MN		0.60	0.80	1.10	1.00	1.10	1.00
Steam pressure Mpa		0.63	0.63	0.63	0.63	0.63	0.63
Pressure of cooling wateMpa		0.3	0.3	0.3	0.3	0.3	0.3
Control form		PLC	PLC	PLC	PLC	PLC	PLC
Overall dimensions	length	5700	10000	1000	2700	2000	10000
	width	2350	2400	2660	8000	12900	3100
	height	4170	3580	4120	4500	3930	4400

We can design and manufacture all kinds of non-standard Conveyor Belt.
Product Description
A. machine frame: use Q235A steel, whole machine body mechanical grinding derusted, painted and welded.
B. hydraulic cylinder: use ZG270-500 steel for the cylinder, high-density alloy cold cast iron for the piston, and useYX type sealing ring for the piston.
C. movable decking and top rail: use Q235 steel, welding segregate type structure. There is connecting trough for each part, Every part could be connected when installing.
D. Hot plate: high strength steel, double side treaded, 100mm thickness, surface roughness ≤1.6. There is 16 sets of temperature measuring systems for each hot plate, equipped with temperature alarm function. Adopt double bolt connection for movable deck and hot plate. Equiped with a manual adjust system for every heating area, so that to control the hot plate temperature.
E. Hydraulic station: Consist of motors, hydraulic pump, hydraulic software, pressure gage. Easy structure and easy maintenance. Hydraulic software by numerical-control lathe, with stable presure, no jam. Hydraulic press system equiped with auto-fill presure function, and presure auto-limit system for safety.
F.Control system: Use "mitsubishi" PLC system, realize both manual and auto control. When auto control, there is auto-switch mode, automatic exhaust, vulcanization timming, automatic fulfill pressure, vulcanization alarm andfault automatic diagnosis. Auxiliary equipment adopts site and remote control, Convenient operation.
G-Heat insulation materials: when the capacity of heat conduction is in 0.18Kcal/m, it can withstand pressure≥ 400 kg/cm2, and 220 degrees Celsius temperature. The thickness for 30mm Solved using rubber asbestos plate local compressive deformation problems
Packing & Shipment:
About Dahua :
Qingdao Dahua Machinery Co.,Ltd. which was established in 2000 is affiliated to Shandong Rubber Machinery Research Institute.We specialize in scientific research,production and sales of Rubber Machinery.As keeping extensive close cooperation with Qingdao University of science and technology,Shandong University,China University of petroleum,Chinese Academy of Sciences we have made a great contribution to the development of China Rubber Machinery.
The company has experienced technical team,earnestly the grass-roots staff.We have advanced CNC machines and a variety of large and small mechanical processing equipment,heat treatment equipment and sophisticated detection equipment and introduced advanced UG 3D mechanical design software and performance optimization software in 2006. Our design team can design and manufacture non-standard rubber machinery according to customer requirements.
"Quality first, technology innovation" is the company's business principle,our products were rated as "excellent provincial famous brand" ,"free products" and exported to many countries and regions such as United States,Germany,France,Canada,Australia,South America and so on.With excellent quality and good customer service, the products have been well received among domestic and foreign customers!
We sincerely welcome customers all over the world to visit our company or call us to have a business negotiation, hope to make a good faith and win-win cooperation with you and common development hand in hand.
Customer Show:
HOT SALES:
FQA:
Q: Are you manufacturer or trade company?
A: We are really 100% manufacturer.
Q: How many year's experience does your company have?
A: More than 20 years of concentration, we mastered several key technologies.
Q: What product can you supply?
A: Rubber press machine, Vacuum molding press machine, Injection Molding machine, Rubber mixer machine, calender machine, extruder machine and rubber product equipment solvtions.
Q: What are the operating modes of the machine?
A: With manual and semi-automatic operation mode.
Q: What control system does the machine use?
A: We use PLC as the core of control system, we ususlly usee Omron PLC.
Q: How long is the warranty of your machinery?
A: Our warranty is one year.
Q: How long is the delivery time?
A: Usually we need 40-60 days , if ther id inventory , we can finish the modification within one month, but it may take longer if ther are special requiements.
