CE Farm Home Construction Agricultural Micro Wheel Excavation Hook Crawler Hydraulic Garden Bagger Digger Mini Backhoe Small Excavator
Basic Info.
Model NO.
ZM Mini Excavator
Type
Crawler Excavator
Usage
Special Excavator, Marine Excavator, Mining Excavator, GM Excavator
Bucket
Backhoe
Transmission
Hydraulic Transmission
Drive Type
Internal Combustion Drive
Bucket Capacity
0.1~0.5m³
Size
Small-Scale
Certification
CE, ISO9001: 2000
Condition
New
Product Name
Miniexcavadora
Max. Digging Height
2885mm
Max. Unloading Height
1974mm
Max. Digging Depth
1813mm
Max. Vertical Digging Depth (D)
1720mm
Max. Digging Radius
2676mm
Min. Rotation Radius
1450mm
Transport Package
Wooden
Specification
ZM13A Crawler Excavator
Trademark
zhongmei
Origin
China
Production Capacity
100 Sets Per Month
Packaging & Delivery
Package Size
60.00cm * 30.00cm * 30.00cm
Package Gross Weight
24.000kg
Product Description
Hot SalesProduct Description
Introduction Of Farm Home Garden Construction Agricultural Crawler Hydraulic Garden Digger Mini Escavator Samll Excavator
Mini Excavators with compact dimensions can easily drive through narrow passages and doors, small radius of gyration, adjustable dozer blade, easy to disassemble simple shed, 360 degree rotation, high configuration, high performance, small size, light weight, good transportation, low fuel consumption, high efficiency, stable performance, beautiful appearance, safe and reliable, operation Flexible and convenient, and wide application.
Equipped powerful engine and perfectly matched hydraulics provide efficient, economical and reliable performance for the toughest of jobs, and a wide range of adaptability. Reducing maintenance and operating costs, improving the degree of mechanization.zmwm21
Product Parameters
Parameter Of Farm Home Garden Construction Agricultural Crawler Hydraulic Garden Digger Mini Escavator Samll Excavator
| Model Size(mm) Specification | ZM08 | ZM09 | ZM10A | ZM12 | ZM13 | ZM15 | ZM17 | ZM18 | ZM23 | ZM25 |
| Weight (KG) | 665 | 680 | 775 | 790 | 1000 | 1500 | 1125 | 1285 | 1800 | 2500 |
| Transport Length | 2600 | 2500 | 2200 | 2200 | 2000 | 2350 | 2420 | 2600 | 2360 | 3500 |
| Package Length (a) | 2800 | 2700 | 2800 | 2800 | 2960 | 2890 | 2955 | 3360 | 3560 | 4400 |
| Total Width (b) | 720 | 720 | 925 | 925 | 925 | 1100 | 1110 | 1300 | 990/1330 | 1300 |
| Total Height (c) | 2000 | 2000 | 2000/2175 | 2000/2175 | 2410 | 2240 | 2215 | 2344 | 2405 | 2300 |
| Turntable Width (d) | 700 | 700 | 805 | 805 | 905 | 990 | 940 | 1050 | 996 | 1200 |
| Chassis Total Width (e) | 720 | 720 | 925 | 925 | 925 | 1100 | 1110 | 1300 | 990 | 1300 |
| Track Width (f) | 150 | 150 | 180 | 180 | 180 | 180 | 180 | 180 | 230 | 230 |
| Wheelbase (g) | 860 | 860 | 906 | 906 | 915 | 1082 | 1082 | 1082 | 1230 | 1526 |
| Track Gauge (h) | 550 | 550 | 742 | 742 | 742 | 895 | 895.5 | 1120 | 760/1070 | 1040 |
| Platform Ground Clearance (i) | 350 | 350 | 370 | 370 | 370 | 400 | 400 | 400 | 435 | 570 |
| Min. Ground Clearance (j) | 100 | 100 | 127 | 127 | 127 | 140 | 140 | 145 | 145 | 240 |
| Max. Digging Height (A) | 2460 | 2800 | 2500 | 2500 | 2885 | 2690 | 2565 | 2880 | 3535 | 3200 |
| Max. Unloading Height (B) | 1730 | 1880 | 1700 | 1700 | 1974 | 1780 | 1670 | 2100 | 2445 | 2450 |
| Max. Excavation Depth (C) | 900 | 960 | 1580 | 1580 | 1813 | 1715 | 1730 | 2150 | 2270 | 2350 |
| Max. Vertical Digging Depth (D) | 340 | 430 | 1200 | 1200 | 1720 | 1585 | 1600 | 1760 | 1910 | 1740 |
| Max. Digging Radius (E) | 2490 | 2330 | 2900 | 2900 | 2676 | 3150 | 3215 | 3330 | 3910 | 3100 |
| Min. Rotation Radius (F) | 1400 | 730 | 1450 | 1450 | 1450 | 1587 | 1495 | 1555 | 1600 | 2300 |
| Standard Engine Brand | UP 192F | UP 192F | UP 192F | UP 192F | UP 192F /Kubota | Kubota D722 | Laidong LL380B-116A" | Changchai 390Q | Kubota 902 | Laidong LL385-216B |
| Emission Standard | China II | China II | China II | China II | China II /Euro V | China IV /EPA Tier 4 /Euro V | China II | China II | EPA/CARB TiAl4/Eu StiPeV/China GB3 | China II |
| Engine Power (KW) | 8KW/ 3600rpm | 8KW/ 3600rpm | 8KW/ 3600rpm | 8KW/ 3600rpm | 7.5KW/ 3600rpm | 10.2KW /2500rpm | 19KW/ 2200rpm | 20KW/ 2300rpm | 11.8KW / 2300rpm | 29KW/ 2350rpm |
| Horsepower (HP) | 11 | 11 | 11 | 11 | 11 | 15 | 26 | 27 | 16 | 40 |
| Telescopic Side Swing | - | - | customised | customised | customised | Yes | - | - | Yes /chassis extension | Yes |
| Bucket size | 300 | 300 | 400 | 400 | 400 | 400 | 400 | 400 | 500 | 500 |
| Bucket Capacity (m3) | 0.02 | 0.02 | 0.025 | 0.025 | 0.025 | 0.023 | 0.3 | 0.035 | 0.04 | 0.05 |
| Cab | - | - | 3500 | 3500 | 3500 | 4000 | 4000 | 4000 | 4500 | 4500 |
| Air Conditioning | - | - | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 | 2500 | 2500 |
| Optional Engine | Changchai,Kop,Bailitong,Lithium-ion battery,Electric motor | - | - | - | Laidong 385 | Xin Chai 3B11 | Changchai 390Q | |||
Detailed Photos

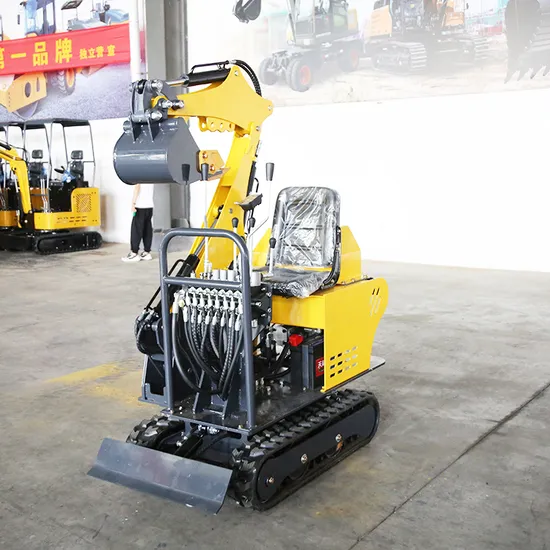

Photos Of Farm Home Garden Construction Agricultural Crawler Hydraulic Garden Digger Mini Escavator Samll Excavator
