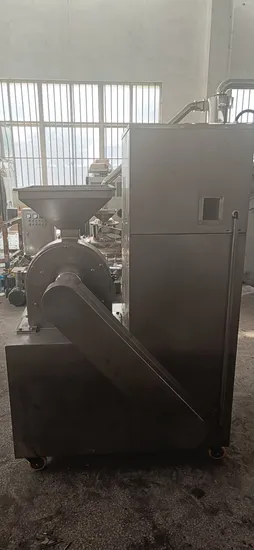

Dust Collecting Crusher Crushing Machine for Pepper Milling
| US$2,950.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
30B
Drive
Electric
Crushing Degree
Fine Grinding Machine
Crushing Style
Grinding and Impact
Principle
Fixed Culling
Finished Surface
Outer Surface Process
Compressive Strength (For Crushing)
>300MPA
Tongs′ Features
Universal Tongs
After-sales Service
Lifetime
Warranty
One Year
Cutter Material
Stainless Steel
Transport Package
Wooden Case
Specification
up to 120 mesh
Trademark
pharmao
Origin
China
HS Code
8479820090
Production Capacity
300kg/H
Product Description
Main Application:Applied for such trades as pharmaceutical, chemical and foodstuff etc., this machine is a new generation coarse crushing equipment combining crushing and dust collection as a whole.
Working Principle:
By means of relative motion between movable and fixed fluted discs, material is crushed through impact and friction of teeth and impact among material. The crushed material is entered into the catcher automatically under the effect of rotating centrifugal force, and the dust is filtered and recovered by dust collector through a bag. Designed according to GMP standard and wholly made of stainless steel, this machine has no flying dust during production, and can improve the utilization rate of material and reduce the cost of enterprise, thus reaching the international advanced level.
Main Technical Specifications:
| Model | 20B | 30B | 40B |
| Production Capacity | 60-150kg/h | 100-300kg/h | 160-800kg/h |
| Spindle speed | 4500r/min | 3800r/min | 3400r/min |
| Feeding size | 6mm | 10mm | 12mm |
| Crushing fineness | 60-150mesh | 60-120mesh | 60-120mesh |
| Crushing motor | 4KW | 5.5KW | 11KW |
| Dust collecting motor | 1.5KW | 1.5KW | 1.5KW |
| Overall dimension(mm) | 550×600×1250 | 600×700×1450 | 800×900×1550 |
