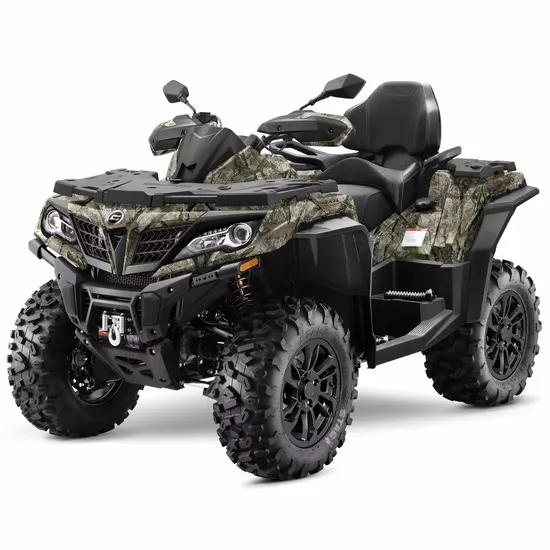

New Sales ATV Quad New Cfmoto Cforce 450 One Efi 500cc
Basic Info.
Model NO.
CFORCE 520L
Structure
Without Door
Displacement
495cc
Transmission System
Shaft Drive
Fuel
Gas / Diesel
Brake Type
Front Disc+Rear Dsic
Maximum Speed
75-100km/H
Power
>1000W
Brand
CF
Certification
CE, EPA
Condition
New
Type of Drive
Electronic Control Switching of Two-Wheel Drive/Fo
Braking Mode
Four-Wheel Hydraulic Disc Brake
Shock Absorber Type
Coil Spring+Oil Damping Type
Rim Specification
Front: 12X6.0 Rear: 12X7.5
Tyre Size
Front: 24X8.00-12 Rear 24X10.00-12
Displacements
495 Cc
Cylinder Diameter X Stroke
91X76.5mm
Maximum Power/Corresponding Speed
34kw/6750rpm
Maximum Torque/Corresponding Speed
39n.M/5750rpm
Compression Ratio
10.3:1
Voltage
> 60V
Fuels
Gas / Diesel
Engine
4 Stroke Air Cooled
Transmission
Automatic CVT
Vehicle Wheelbase
1460mm
Transport Package
243*117*100cm
Specification
243*117*100cm
Trademark
CF
Origin
Shenzhen
HS Code
8711600010
Production Capacity
5000/Years
Packaging & Delivery
Package Size
225.00cm * 117.00cm * 100.00cm
Package Gross Weight
375.000kg
Product Description
| Configuration introduction | |
| Long x wide x high | 2386x1125x1217mm |
| Vehicle wheelbase | 1460mm |
| min. ground clearance | 262mm |
| Minimum turning diameter | 6500mm |
| complete vehicle kerb mass | 365kg |
| Maximum bearing mass | 240kg |
| Vehicle fuel tank capacity | 17L |
| Engine type | Single cylinder, water cooling, four stroke |
| displacement | 495 cc |
| Cylinder diameter x stroke | 91x76.5mm |
| Maximum power/corresponding speed | 34kW/6750rpm |
| Maximum torque/corresponding speed | 39N.m/5750rpm |
| Compression ratio | 10.3:1 |
| type of drive | Electronic control switching of two-wheel drive/four-wheel drive |
| Braking mode | Four-wheel hydraulic disc brake |
| hang | Front: Double A-arm independent suspension Rear: Double A-arm independent suspension |
| Suspension stroke | Front: 190mm rear: 225mm |
| Shock absorber type | Coil spring+oil damping type |
| Rim specification | Front: 12x6.0 rear: 12x7.5 |
| tyre size | Front: 24x8.00-12 Rear 24x10.00-12 |
| Packing weight | 375kg |
| Packing size | 243*117*100cm |
