Acemien Plastic PVC Corrugated Roof Tile Roofing Sheet Forming Making Machine

Product Description

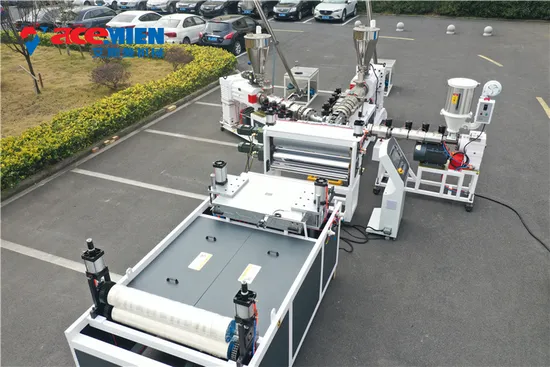

PVC+ASA Co-extrusion Roof tile making machine

Machine name	Introduction
SJZ80/156 conical twin-screw extruder	Function:make bottom layer Capacity:280-350kg/h Feeder with 2 screws,Feeding smooth and prevent bridging. 2 sets vacuum pots,when clean 1 set pot,do not stop machine running,because other pot also can use,otherwise there is 1 set vacuum pot,it will waste about 10m roof tile when clean pot. Big nut,this can protect the screw and barrel
SJ50/30 single screw extruder	Function:make surface layer(ASA/PMMA) With vacuum loader and drying hopper,can make the ASA/PMMA granules dryer. Surface color can according to customers.
Extrusion mould and distributor	Function:make ≥ 2 layers roof tile,need the distributor,it can make surface layer and bottom layer together.
Embossing roller machine	Function:Embossing pattern, Make the surface more beautiful.The pattern can according to customers. With a type wheel ,customer can type your company name,brand,words etc.
Forming machine with trimming device	Function:make roof tile. Type 1: make corrugated tile forming machine with a length counter. type 2: make glazed tile forming machine witha wave counter.
Cutter	Function:according to customers needed length,cutting the roof tile.There is a PLC control,it can set 5 data.
Ridge tile Oven	Function: put the flat tile to the Oven, when the temperature reach to 150ºC,put the flat tile to the Ridge tile forming machine.
Ridge tile Forming machine	Function:according to ridge mould to make the ridge tile. Corrugated ridge:1set Glazed ridge:4sets All kinds of ridge tiles,we can according to customers requirements. Ridge tile mould: Alloy aluminum,surface with polishing process.

Auxiliary machine name	Introduction
Mixer unit	Function:mixing PVC powder, CaCO3, CPE, Stearic acid , Compound stabilizer ,ACR etc.
Crusher	Function:crush the waste roof tile and recycled PVC materials,such as PVC pipe,sheet,profile etc.
Pulverizer	Function:grind the PVC flakes to powder.

Product info:

Raw material & formulation	Bottom layer: PVC powder, CaCO3, CPE, PE-WAX, Stearic acid, Compound stabilizer, ACR, paraffin. Surface layer: ASA granule
Description final product	Glazed tile: Width:880mm;1040mm Thickness: 1.5~3mm; Main tile:1set Ridge tile:4sets Corrugated tile: Width:920mm;1130mm Thickness: 1.5~3mm; Main tile:1set Ridge tile:1set All kinds of ridges,customers can choose.
