Precision and Safety Guaranteed Advanced Vacuum Lifter for Coil Handling

Product Description

Product Description

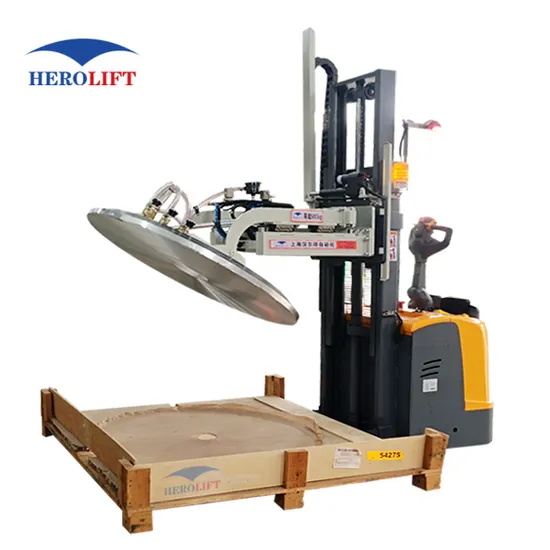

The perfect combination of vacuum system with stacker to solve the problem of handling Aluminum coils.

Vacuum Lifters for Coil Handling from HEROLIFT are designed for handling all types of metal, film, paper, or plastic coils and rolls in both the horizontal and vertical positions. Vacuum coil lifters can be provided as complete systems or as attachments for automatic pick-and-place or crane-based systems. Powerful suction lifter can be used in the handling of various coils.The movable stacker enables the vacuum coil machine to be widely used in multiple scenarios
Unlike mechanical lifts and grabs, these vacuum lifters leave no damage or marks on the coils. Vacuum lifters with capacities up to 1000 kg are available.
Some key items to be considered when choosing a vacuum coil lifter are: Weight of the load Type and thickness of material Thickness of coils Sizes of inner cores and their outer diameters Number of chambers needed Position of eye or center Power available Control method Almost everything can be lifted
With custom-made tools we can solve your specific needs. Please contact us for more information.
Characteristic
1. Max.SWL1000KG
Vertical handling,swiveling
Lock at any position 0-90 degrees
Suction adjustable for left/right
Safety tank&pressure switch warning
CE certification EN13155:2003
China Explosion-proof Standard GB3836-2010
Designed according to German UVV18 standard
2.Large vacuum filter, vacuum pump, control box incl start / stop, energy saving system with automatic start/stop of vacuum, electronic intelligent vacuum surveillance, on/off switch with integrated power surveillance, adjustable handle,standard with equipped with bracket for quick attachment of lifting or suction cup.
3.A single person can thus quickly move up to 3 tonnes, multiplying productivity by a factor of ten.
4.It can be produced in different sizes and capacities according to the dimensions of the coils to be lifted.
5.It is designed using high-resistance, guaranteeing high performance and an exceptional lifetime.
Paramenters

Serial No.	HTC500-3-E	Max capacity	500kg
Overall Dimension	2100X1250mmX2240mm(Approx)	Power input	DC24V (Battery)
Model of Control	Vacuum suction and release control by Solenoid valve	Suction and release time	Less than 2s, (Only first suction time slightly longer, about 10~15s)
Maximum pressure	85% Vacuum degree (Approx 0.85Kgf)	Warning pressure	60% vacuum degree (Approx 0.6Kgf)
Security coefficient	S>4.0,(Vertical suction)	Dead weight of equipment	1150kg(approximate)
Safety alarm	When the pressure is lower than the set alarm pressure (60%), Sound and light alarm automatic alarm.
Speed test	Apply plate ≤2s Release plate≤2s

Features

Vacuum suction cup •Professional customized • composite panels •Suit various working conditions •Protect workpiece surface	Vacuum pump •high flow with less energy •lowest vibration&noise level •Multi functional, time and labor-saving •environmentally friendly energy-saving
Vacuum gauge •Clear scale,Accurate values •Good sealing performance •Surface scratch resistant •Sturdy and durable	Filter •Low pressure drop. •Ensure maximum surace area. • easy element change-out •Carbon steel or stainless steel material

Specification

Type	SWL kg	Cup Diam.mm	Coil Diam.mm	Lifting Height	Swivel	Move	Wheel Height
HTC300	300	980	400-1800	1600	Electrical	Electrical	90
HTC500	500	1100		1600			90
HTC1000	1000	1200		1600			90
	Power:220/460V 50/60Hz 1/3Ph(we will provide the corresponding transformer according to the voltage in your country region.)
	For optional DC OR AC Motor drive as your requirements

Detail display
Function
Vertical handling,Swiveling
Lock at any position 0-90 degree
Suction adjustable for left/right
Imported oil-free vacuum pump and valve
Safety tank integrated&pressure switch warning
Pressure detection ensure safety
Efficient, safe, fast and labor-saving
Design conforms to CE standard
This equipment is widely used in the non-destructive handling of various coils such as aluminum coils, copper coils, and steel coils.

Service cooperation
Since its establishment in 2006, our company has served more than 60 industries, exported to more than 60 countries, and Established a reliable brand for more than 18 years.
Company Profile

Our Advantages

Production Line

Certifications

Packaging & Shipping

FAQ
Q1: How can I get the best machine for me? A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A: We will have the free technical training, and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under "normal use". you need to pay the postage.
Q4: What's the guarantee, in case the machine breaks down?
A: The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5: How long is the delivery time?
A: For standard machines, it would be 20-30 days; For non-standard machines and customizedmachines according to client s specific requirements, it would be 45 to 60 days.
