Solar Energy Power System Hybrid Inverter Solar Storge Battery Power Inverter 1kVA 2kVA 3kVA 5kVA 8kw Pure Sine Wave off Grid Inverters

Product Description

Solar Power System Hybrid Inverter Solar Power Inverter 1kVA 2kVA 3kVA 5kVA 8KW Pure Sine Wave off Grid Inverters
1.Brief Introduction of Solar Hybrid Inverter

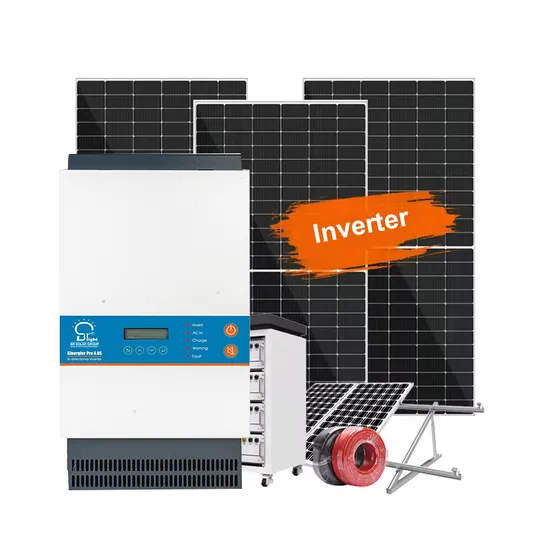

Kinergier Pro is the new generation bi-directional inverter designed for various type of off grid system including AC Couple system, DC Couple system and generator hybrid system. It can provide UPS class switching speed and with capability to support parallel as well as composing three phase system.
Kinergier Pro delivers high reliability, performance and industry leading efficiency for mission critical application. Its distinguishing surge capability makes it capable to power most demanding appliances, such as air conditioner, water pump, washing machine, freezer etc.
With the function of power assist & power control, it can be used to work with a limited AC source such as generator or limited grid. Kinergier Pro can automatically adjust its charging current avoiding grid or generator to be overloaded. In case of temporary peak power appear, it can work as the supplement source to generator or grid.
2. Main Feature
UPS class transfer speed,<2ms Support AC coupling system, DC coupling system andsolar hybrid systems Parallel and three phase capability, up to 9 units canoperate in parallel Can be used for self consumption system support feedback to grid AEA function (power sharing and power assist) Outstanding overload capability for all kinds of inductiveloads Harmonic distortion<2% High efficiency up to 96% Extremely low status consumption power BR premium ll battery charging management With built in battery SoC estimation Two programmable AC outputs for smart loadmanagement Built in AGS Fully programmable by APP Remote monitoring and control available
3. Some Pictures for Solar Hybrid Inverter
4.Technical Specifications

Model	CK4.0M	CK5.0M	CK4.0S	CK5.0S	CK6.0S	CK8.0S
Power Assist	Yes
AC inputs	Input voltage range:175~265 VAC, Input frequency:45~65Hz
AC input Current	50A (transfer switch)
Inverter
Nominal battery voltage	24VDC		48VDC
Input voltage range	21~34VDC		42~68VDC
Output	Voltage: 220/230/240 VAC ± 2%, Frequency: 50/60 Hz ± 0.1%
Harmonic distortion	<2%
Power factor	1.0
Cont. output power at 25°C	3600W	4500W	3200W	4000W	4800W	6500W
Peak power (30min)	4000W	5000W	4000W	5000W	6000W	8000W
Peak power (10 sec)	5600W	6700W	6400W	8000W	9600W	13000W
Cont. output power at 40°C	2800W	3600W	2800W	3600W	4200W	5600W
Maximum efficiency	94%		96%
Zero load power	18W	23W	17W	19W	20W	26W
Charger
Charge voltage 'absorption'	28.8VDC		57.6VDC
Charge voltage 'float'	27.6VDC		55.2VDC
Battery types	AGM / GEL / OPZV / Lead-Carbon / Li-ion / Flooded
Battery Charge current	120A	150A	55A	70A	80A	110A
Temperature compensation	Yes
General data
AC Out Current	AC Out1 Current :50A, AC Out2 Current :32A
Transfer time	<2ms(<15ms when WeakGrid Mode)
Remote on-off	Yes
Programmable relay	2x
Protection	a) output short circuit, b) overload, c) battery voltage over voltage d) battery voltage under voltage, e)over temperature, f) Fan block g) input voltage out of range, h) input voltage ripple too high
CAN Bus communication port	For parallel and three phase operation, remote monitoring and system integration
General purpose com. Port	CAN,RS485 (Bluetooth,GPRS,WLAN optional)
Operating temperature range	-20 to +65˚C
Storage temperature range	-40 to +70˚C
Relative humidity in operation	95% without condensation
Altitude	2000m
Mechanical Data
Dimension	532.8*285*188mm
Net Weight	33kg	36kg	30kg	33kg	35kg	40kg
Cooling	Forced fan
Protection index	IP20
Standards
Satety	EN60950-1
EMC	EN61000-6-2,EN61000-6-4,EN61000-3-11,EN61000-3-12

5. Some projects on site
6.Packing of Solar Hybrid Inverter
