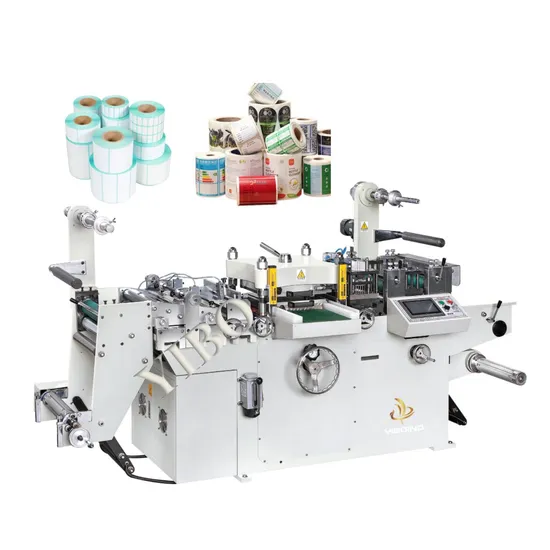

Flat Bed Die Cutting Machine for Labels, Trademark, Sticker
| US$7,000.00-20,000.00 | 1 Set (MOQ) |
Basic Info.
Model NO.
YB
Species
Rotary Die-Cutting Machine
Imprinting Type
Rotary
Placing Form of Template
Vertical
Die Cutting Tool
Steel Blade
Computerized
Computerized
Automatic Grade
Automatic
Application
Stickers Products
Name
Slitting and Diecutting Machine
Speed
120m/Min
Unwinder Diameter
600mm
Weight
800kgs
Positional Accuracy
0.15mm
Transport Package
Wooden Case
Specification
4CBM
Trademark
YIBO
Origin
China
HS Code
8441100000
Production Capacity
300set/Month
Packaging & Delivery
Package Size
890.00cm * 600.00cm * 800.00cm
Package Gross Weight
500.000kg
Product Description
Product Description| Technical Specification | Standard Configuration | |||
| Cutting speed: | 120m/min | |||
| Slitting speed: | 120m/min | Main motor 2.2KW | Shanghai | |
| Max materials width: | 320mm | Simulation of rectifying | Zhongxing | |
| Max rewinding diameter: | 600mm | High speed extension for waste disposal | Aokesi | |
| Max unwinding diameter: | 600mm | inverter | Beishide | |
| Total power: | 3.5kw | Count light eyes | Tailand | |
| positional accuracy: | ±0.15mm | Magnetic powder brake | 1set | |
| Voltage : | 220V±10% | Magnetic powder clutch | 2set | |
| Automatic taper tension controller | ||||
| lubrication system: | manual | Single die cutting station | ||
| Weight: | 600kg | Independent waste collector speed regulating motor | ||
| Size: | 2200mmX950mmX1500mm | Magnetic particle control waste collection | ||
| Package size : | 2300mmX1100mmX1750mm | Rotate the receiving | ||
Packaging & Shipping
Certifications
Client
FAQ
| 1.Are you a factory or trading company? A: We are a factory, the real manufacturer not trader. |
| 2.Where is your factory and how can I visit it? A: Our factory is located in Ruian City, Zhejiang Province, China about 40 minutes by plane from Shanghai ( 5 hours by train) |
| 3.What is your after-sale service? A: We have been in machine business for many years, we will send our professional engineer to install and test machine. Beside, we can also provide online support, video technical support, matching parts delivery, etc. So our after-salesservices is always reliable. |
| 4.How to get machines price? A: Pls provide following information: 1)The color number of printing machine; 2)Material width and effective print width; 3)What material to print; 4)The photo of printing sample. |
