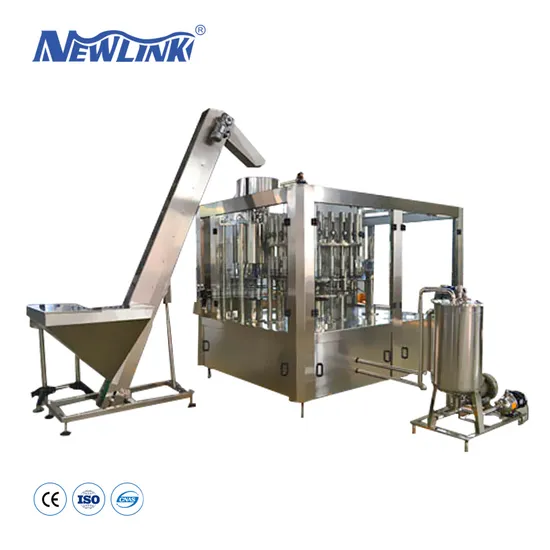

SUS304 Fruit Juice Production Line / Filling Machine / Plant / Equipment Small Capacity Bottled Drinking Water / Juice / Carbonated Drinks Filling Machine

Product Description

Best Price Full-automatic Fruit Juice Production Line / Processing Plant For Sale
The Hot filling technology can expand production and packaging opportunities for juices, nectars, soft drinks, and teas. No matter your beverage type, our unmatched expertise helps you achieve more with extensive technical knowledge and packaging capabilities.
TheHot Filling Lines is a unique PET packaging solution offering a great alternative for hot-filled beverages in PET bottles. It expands the opportunities of product premiumisation and revenue generation with no compromise on packaging performance and the consumer experience. This innovative solution is addressing the single serve market of Hot fill (juice, nectar, soft drink, , tea) filled in PET bottles up to 1.2L at a temperature of 70-88°C.
WE Provide complete Filling solution for Hot Fill lines for juices, teas and energy drinks
1- More customisation and design freedom
2- Fully process control with fewer operators
Technical Parameters

MODEL	HCGF 8-8-3	HCGF 12-12-6	HCGF 18-18-6	HCGF 24-24-8	HCGF 32-32-8	HCGF 40-40-10	HCGF 50-50-12
Washing No	8	12	18	24	32	40	50
Filling No	8	12	18	24	32	40	50
Capping No	3	6	6	8	8	10	10
Capacity(500ml)	2000BPH	4000BPH	8000BPH	12000BPH	15000BPH	20000BPH	24000BPH
Installed Capacity(kw)	2	3.5	4	4.8	7.6	8.3	9.6
Overall Size	2000*1600 *2400	2450*1800 *2400	2650*1900 *2400	2900*2100 *2400	4100*2400 *2400	4550*2650 *24000	5450*3210 *2400

Specific Images

Air Conveyor: It made by SS 304/ with air fan for Empty PET bottle inlet ,it works with bottle filling machine ,Fast and Stable unscramble empty bottle for filling machine
	Bottle washing parts: It is mainly composed of by bottle washing spray head, and SS guide rail. >>The bottle washing head rotates with U Shape fork parts, and the bottle neck gripper is used to hold the bottle neck, and the rail is flipped by 180°, rinsed and dripped, The bottle washing system uses the efficient cleaning spray nozzle which can be cleaned in every place of the bottle.
Filling parts: It adopts high precision, high speed and quantitative filling SS valve, and the liquid level is accurate without liquid loss to ensure excellent filling quality.It mainly consists of water tank, filling valve, guide rail and card bottle lifting device. After filling processing ,The valve closes by itself.
	Capping parts: The capping head adopts constant torque device to ensure the sealing quality. and protect bottle cap during capping processing
Conveyor belt : Transducer is uesd in bottle entering chains to adjust speed to make the operation of moving bottle steadily and reliably.

Auxillary Equipment

Cooling System - Mainly for cooling and sterilization - The main parts of the machine are made of stainless steel, the top is designed to be openable for easy maintenance and observation - Nozzles are manufactured using U.S. technology and spray water evenly - Conveyor belt adopts Rexnor technology, flat surface with small wear - Smooth and reliable operation with low energy consumption

Bottle Inverter Chain - Use juice own high temperature to kill the bacterial inside cap. - Use juice own high temperature to improve sealing of bottle to extend warranty time. - Use SUS 304/316 stainless steel chain and high polymer material conveyor to keep high quality and increase service life.

Automatic wrapping machine BENEFITS. 1 / Pack consistency and quality 2 / Gentle and precise infeed configuration 3 / Flexible handling of multiple SKUs 4 / Automatic pack and raw material changeovers 5 / Heat, glue, carton and film optimisation
