Automatic Bowl Flat Board Polishing Machine and Sandblast Machine

Product Description

1. General Description
It is the Gate and Lathe Style Equipment which is specially designed for Polishing the Stainless Steel Sink Flat Board. The Polishing Rolling is fixing and go round and round, the workpiece under the roller is loaded at the fixing jig of lathe and move on the track to realize the board beautiful Polishing.

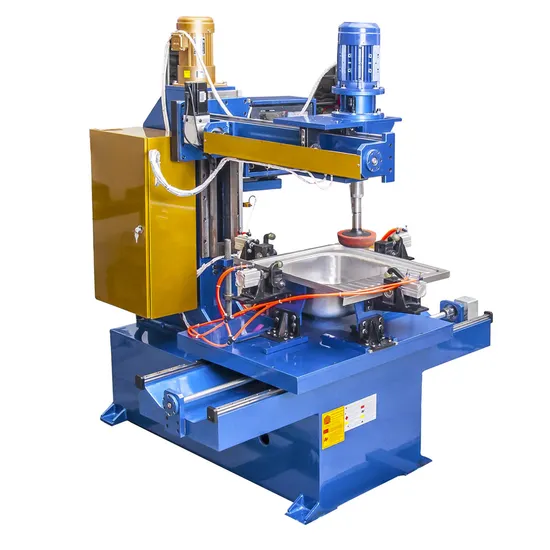

2. Sketch and Photo of the Machine as the photo.
3. Machine Working Process and Step
Load the Workpiece to the Fixing Jig of Working Lathe Table -- Start the Polishing Roller -- Start the Working Table -- Polishing Until Finish All -- Automatic Back to the Original Position -- Unload the Workpiece.
4. Main Parts List of the Machine
4.1 Hydraulic Pressure Cylinder and Station;
4.2 Beeline Track;
4.3 Motor Power System
4.4 Polishing Roller
4.5 Special Design Fixing Jig and Table
4.6 Main Body of Machine
4.7 Electric Controlling Box
4.8 Machinery Movement System
5. Main Technical Parameter of Standard Model Machine
5.1 Machine Dimension: L: 2810 mm× W: 1760mm× H: 1500mm(Or designed specially basing on the workpiece);
5.2 Polishing Length (Working Table Moving Distance Range): 1300 mm (Or designed specially basing on the workpiece);
5.3 Polishing Width: 600 mm (Or designed specially basing on the workpiece);
5.4 Total Power: 5KW;
